ULTRA-LINK UL-DB3275 Manual

Advertisement

Quick Links

UL-DB3275
Fixed wall Installation
IMPORTANT SAFETY INSTRUCTIONS
Check your TV user manual instructions to
see if there are any special requirements for
mounting your TV. If you do not understand
these instructions or have doubts about the
safety of the installation, assembly or use of
this product, contact:
INTERFOTO CC
Website: www.ultralink.co.za
Email: service@interfoto.co.za
Address: 362 Roan Crescent,
Corporate Park North, Midrand
Tel: +2786 006 1046
Product Features :
Product weight :
6.2 Kg
TV size support:
32"-75"
Distance to the wall:
100mm - 440mm
Maximum load:
30kg
For Vesa Standard:
600x400
1. Unboxing the bracket:
- Using the Parts for assembly &
Hardware diagrams,
Inspect the package in order
to ensure that all the parts
have been provided.
2. Concrete wall installation:
- Determine the height
and positioning of the wall
bracket.
- Make sure that the area you
wish to mount to does not
contain any water piping
/internal cables.
- Draw a marking where you
wish to place your bracket.
K

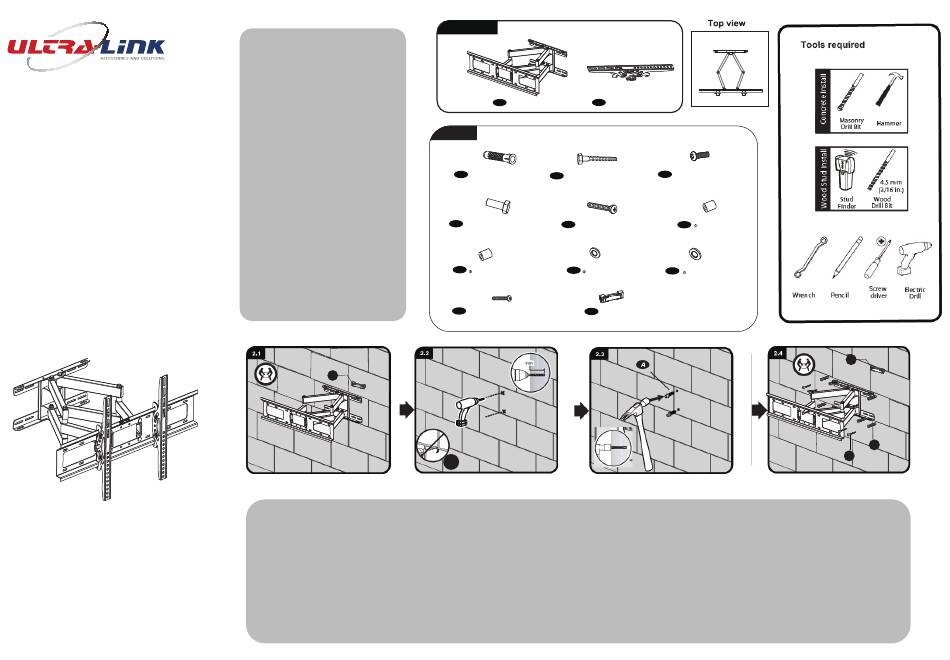

2.1 Hold the wall plate against your markings and place the spirit level (Hardware K) above the wall plate, adjust the wall plate until you
get an accurate level then mark your 6 screw holes with a pencil.
2.2 Use an electric drill along with a masonry drill bit. (Mark the drill bit with a piece of coloured tape to create a 50mm mark ,
this will indicate how deep your wall plate hole needs to be drilled.) Then drill with a 10mm bit into the wall (50mm) to the depth
of the coloured tape.
2.2.1 Do not drill wall plate hole into head/bed joint concrete, drill directly onto the header side of the brick.
2.3 Use a hammer to insert plastic screws (A) into the holes.
2.4 Use wallboard screw (B) and a screw driver to mount the wall plate to wall.
Position the wall plate and use the spirit level (Hardware K) to insure that the wall plate is leveled.
Parts for assembly
01
02
Wall plate
Plasma arm x 2
Hardware
A
M10 Plastic screw x6
B
M6x55mm Wallboard screw x6
D
E
M6x16mm Cross round screw x4
M8 x 50mm Cross round screw x4
G
H
6 Plastic spacer x4
6 Washer x4
J
M5 x 25mm Cross round screw x2
K
Spirit Level x1
50
2.2.1
C
M6x20mm Cross round screw x4
F
8 Plastic spacer x4
I
8 Washer x4
K
A
B
