Summary of Contents for Batavia POWERPAC 1212

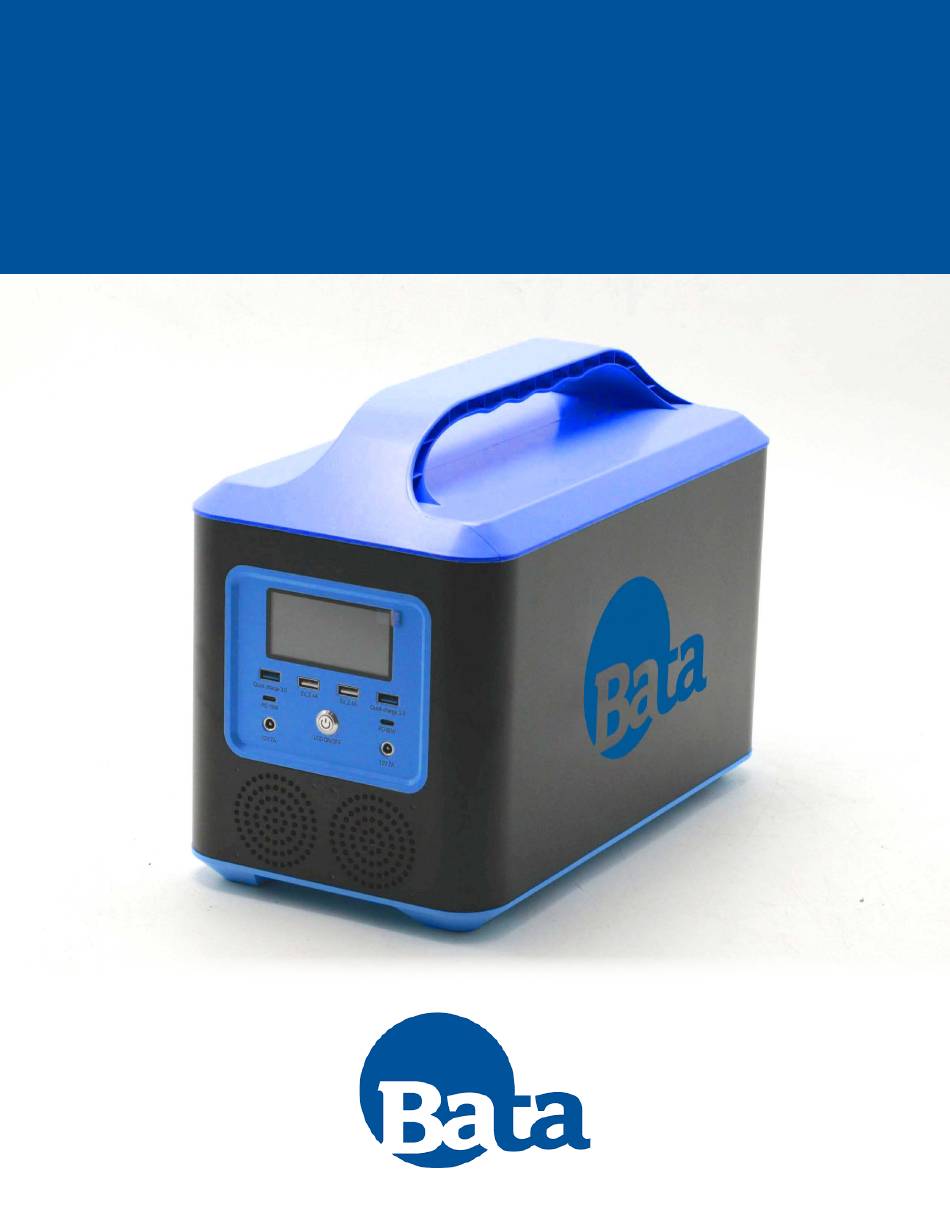

- Page 1 POWERPAC 1212 U S E R G U I D E...
- Page 2 WHATS IN THE BOX PowerPac Solar Charge Cable User manual AC charger sales@batabaseball.com heybata.com...
- Page 3 GLOSSARY The following terms are used in this document to indicate various levels of potential harm that may be caused by improper operation. NOTICE The instructions, if not properly followed, may result in property damage and minor physical damage. WARNING The instructions, if not properly followed, may result in property damage, major accident and serious injury.
- Page 4 PRODUCT SAFETY GUIDELINES Improper use may result in fire, property damage or personal injury. Make sure to use the product according to the following safety rules and guidelines. Product use: 1. Do not expose PowerPac to any liquid. Keep the PowerPac away from rain or any liquid. Do not drop the PowerPac into water.
- Page 5 PRODUCT SAFETY GUIDELINES Product Storage and Transportation: 1. Keep the product out of the reach of children. 2. If a low-battery warning appears, charge the battery before storing it. Long-term storage in an uncharged state may cause damage to the PowerPac’s batteries. The batteries will enter hibernation mode if the unit is depleted and then stored for a long time.
-
Page 6: Table Of Contents
POWERPAC USE GUIDE INTRODUCTION FEATURES LCD DISPLAY SOLAR PANEL CONNECTION TECHNICAL SPECIFICATIONS HOW TO RECHARGE FAQs POWERPAC CONTINUOUS USE PRODUCT IMAGES sales@batabaseball.com heybata.com... -
Page 7: Introduction
INTRODUCTION NOTICE: NOTICE: Please note: Please note: To turn ON/OFF PowerPac, you need to PRESS & HOLD the Power Button. To turn on the AC power outlet, To turn ON/OFF PowerPac, you need to PRESS & HOLD the Power Button. To turn on the AC power outlet, you need to PRESS &... -
Page 8: Features
FEATURES sales@batabaseball.com heybata.com... - Page 9 FEATURES 1. LCD Display Displays the various conditions of the product. The screen will turn of after 5 mins. You can turn it on by pressing ON/OFF button. 2. 5V USB Output Ports Charge a wide array of devices such as your iPhone, tablet, speakers, or anything that needs to be charged through a USB-A Port.
- Page 10 FEATURES sales@batabaseball.com heybata.com...
- Page 11 FEATURES FEATURES 8. Car Outlet This out charges devices that need car ports to be charged, such as drone batteries. The DC output icon will appear on the LCD Display when a DC port is in use. 9. DC Input The PowerPac needs to be charged by the included charger, and the output voltage specification of the charger is DC 29.2V~ 1-10A.
-
Page 12: Lcd Display
LCD DISPLAY A. Battery Level Display The battery capacity display has 5 grids, each representing 20% State of Charge (SOC). When the battery quantity display has 1 grid remaining, the remaining battery quantity is < 20%. At that point, charge the PowerPac immediately. -
Page 13: Solar Panel Connection
SOLAR PANEL CONNECTION How to recharge the PowerPac with solar panels? First, please note that we will focus on how to set up a serial connection (up to three panels and the parallel connection of up to six panels). The PowerPac supports 30-45V DC input. When the input exceeds 45V, the PowerPac’s overload protection will be triggered. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS General Specs Net Weight 33lbs (15kg) Dimensions 14.5 x 7.9 x 10.8 inch (L368 x W 200 x H 275mm) Capacity 1280Wh / 25.6V50Ah Testing and certification UL (Cells) CE (Cells) UN38.3 FCC RoHS PSE Output AC Output (x2) 1200W (Surge2400W), 120Vac (60Hz)/230Vac (50Hz) 5V USB Output (x2) 5V DC, 2.4A, 12W Max, per port... - Page 15 TECHNICAL SPECIFICATIONS Battery Cell Chemistry LiFePO4 (Lithium Ion Phosphate) Cell Type 3.2V 50AH Discharge Temperature -4 to 140°F (-20 to 60°C) Charge Temperature 32 to 122°F (0 to 50°C) Discharge Cut-off Voltage 20V±0.5V Months Self Discharge <3% Efficiency of Charge 100% @0.5C Charge Voltage 28.8-29.2V...
-
Page 16: How To Recharge
HOW TO RECHARGE How do I recharge my PowerPac? PS01 has an AC charging port and a EC5 and 5525 charging port located on the side of PowerPac can be charged through AC power or solar panel. Besides, you can also use solar panels connect in series (no more than two) and connect the solar charge cable to the EC5 and 5525 solar charging port of PowerPac for charging. - Page 17 FAQS How do I access the Device’s Bluetooth App? 1. Visit the App store on your Iphone or Samsung device. 2. Search for “BAT-BMS”. 3. Download the app of that name in the “Utilities” category. Remember to give the app access to your Bluetooth and accessories. 4.
-
Page 18: Powerpac Continuous Use
POWERPAC CONTINUOUS USE CPAP Machine/Ventilator/ Starlink System/LED TV/Pellet Bata pitching machines Patient Monitor Cooker/Small Fridge Operating hours: Operating hours: Operating hours: 13 Hours (1600 pitches) 17 Hours 10 Hours Endless with Solar Endless with Solar Endless with Solar 35L per Minute Water Pump/ Desktop Computer/ Toaster Oven/Chain Saw/ 5,000 BTU Window Air Conditioner... -
Page 19: Product Images
PRODUCT IMAGES sales@batabaseball.com heybata.com... - Page 20 1. Keep the PowerPac and its accessories dry. Do not expose them to high temperatures. 2. Never disassemble, puncture, shock, crash, or incinerate the product or its accessories. 3. Recycle and dispose of the product in accordance with local regulations. 4.
