106mm
DETACHABLE
BATTERY
MOTOR SPECIFICATION
CONTROL TYPE
RADIO
LIMITS
ELECTRONIC
OUTPUT SPEED
20 cm/s
RATED TORQUE
1.2 N.m
DREAM CURTAIN MOTOR FUNCTION BUTTONS
Setting Button
LED Indicator
Third party port
/Smart Home Integration
DREAM CURTAIN
BATTERY MOTOR
191782
421mm
RATED VOLTAGE
IP RATING
(set remotely)
RATED CURRENT
RADIO FREQUENCY
DREAM WALL SWITCH FUNCTION BUTTONS
Channel selector - UP
Channel '0' button
Channel selector - DOWN
Display screen
315mm
DC 14.8 V
IP40
RATED POWER
1.0 A
MAX. LOAD
433.92 MHz
MOTOR LENGTH
DREAM REMOTE FUNCTION BUTTONS
DISPLAY SCREEN
UP
STOP
DOWN
CHANNEL SELECTOR
P2 Setting button
Battery
DOWN
STOP
UP
40mm
USB-C
16 W
50 Kg
421 mm
P2 SETTING BUTTONS
BATTERY
Advertisement
Related Manuals for DecorQuip DREAM 191782
Summary of Contents for DecorQuip DREAM 191782

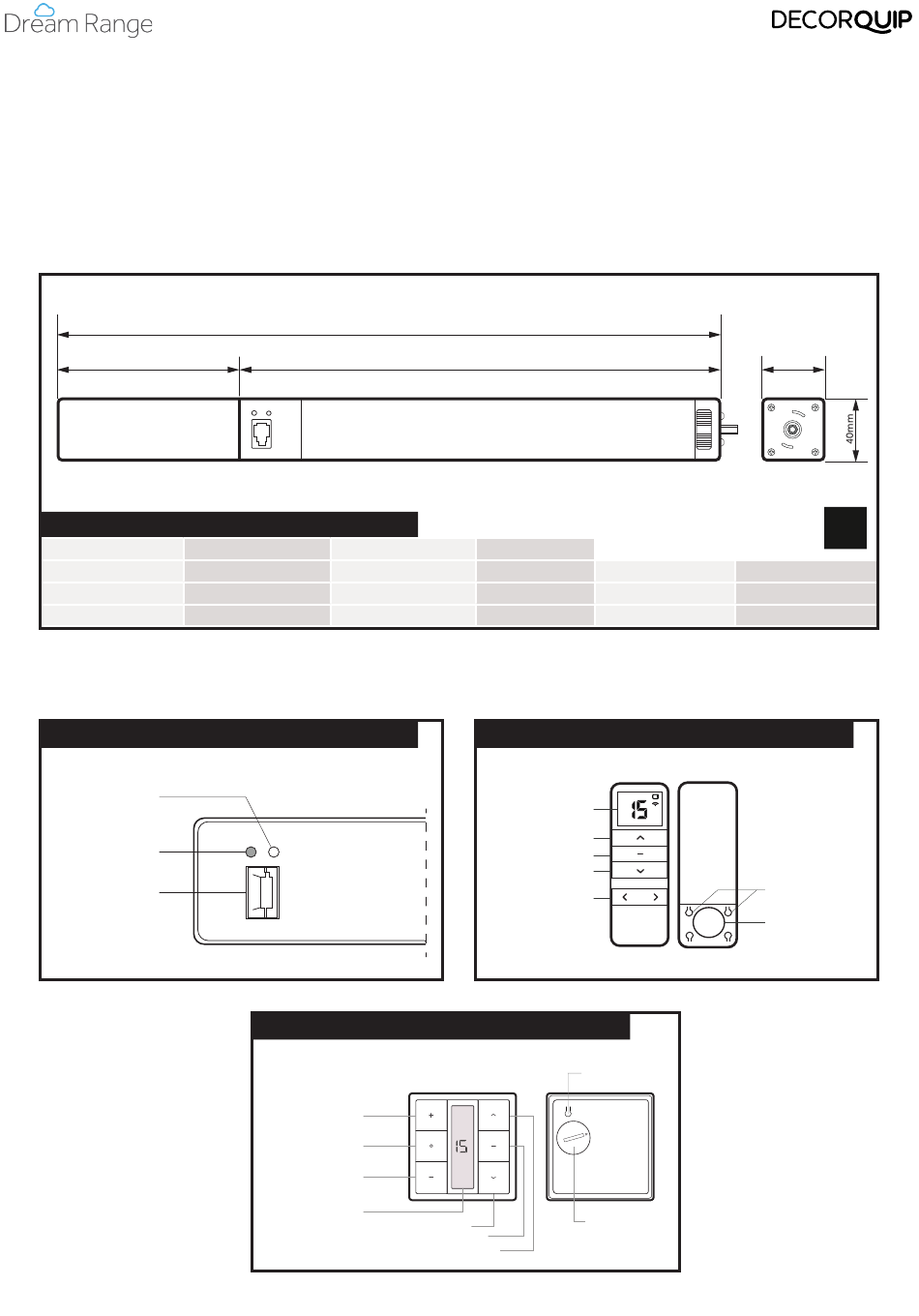

- Page 1 DREAM CURTAIN BATTERY MOTOR 191782 421mm 106mm 315mm 40mm DETACHABLE BATTERY MOTOR SPECIFICATION USB-C CONTROL TYPE RADIO RATED VOLTAGE DC 14.8 V LIMITS ELECTRONIC IP RATING IP40 RATED POWER 16 W (set remotely) OUTPUT SPEED 20 cm/s RATED CURRENT 1.0 A MAX.
-
Page 2: Programming Instructions
PROGRAMMING INSTRUCTIONS Before starting the process of pairing a handheld remote/wall switch to a Dream motor, choose the channel to which it is to be paired. Channel Zero is reserved for simultaneously controlling all blinds paired to a remote and cannot be used for pairing, programming or other adjustments. - Page 3 SETTING LIMITS �ashes x5 beeps x3 LIMITS Open curtains Close curtains to desired position to desired position Press for Press for 15sec 15sec CLEARING LIMITS �ashes x1 �ashes x1 �ashes x5 beeps x1 beeps x1 beeps x3 LIMITS CLEARED Press P2 Press for Press P2 for 15sec...
- Page 4 FINE-TUNING AN OPEN LIMIT �ashes x1 �ashes x5 beeps x1 beeps x3 OPEN LIMIT REFINED Fine-tuning Run curtains to Adjust mode entered ‘open limit’ manually Press for 5sec Jog to desired Press for 2sec simultaneously position simultaneously FINE-TUNING A CLOSED LIMIT �ashes x1 �ashes x5 beeps x1...
-
Page 5: Restoring Factory Settings
ACTIVATING/DEACTIVATING ‘PULL TO START’ CONTROL Motor �ashes x5 �ashes x3 beeps x1 beeps x3 PULL TO START ACTIVATED/ DIACTIVATED Press P1 Release for 10sec Press for 1sec Note: within 10s ‘Default setting: ‘Pull to start’ control activated. DEACTIVATING REMOTE CONTROL RESTORING FACTORY SETTINGS �ashes x8 �ashes x2...
