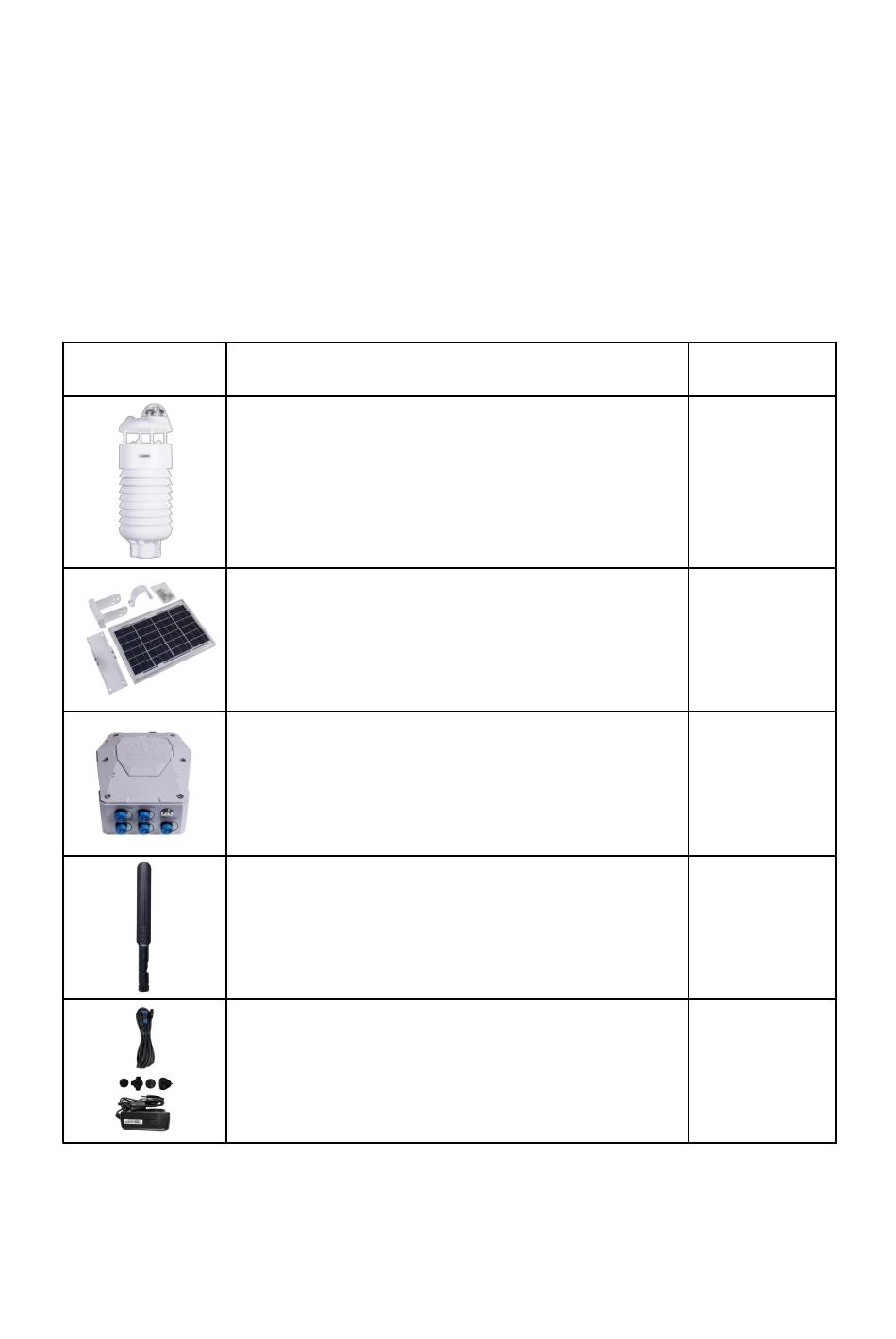

- Page 1 User Guide Package 1：S700/S800/S1000+4G Sensor Hub + PV-12W Solar Panel Preparation Picture Parts Number ONE Compact Weather Station Sensor High-efficiency Waterproof PV-12W Solar Panel Sensor Hub Antenna Power Adapter...
-
Page 2: Step 1：Install The Sim Card
USB Serial Tool Allen Hex Key and M5 Self-drilling Screw 1 / 8 Mounts Ferrules Aluminum Mounts Step 1：Install the SIM card Remove the six screws from the top cover with the Allen Hex Key (included in the package) and open the lid. -
Page 3: Step 2：Install The Antenna
Swipe downward to open the SIM card socket, insert the Micro SIM card and swipe upward to lock the SIM card socket. Make sure it is installed correctly and close the lid with the screws. Note: When installing the cover screws, be sure to lock the screws tight, or it may affect the water resistance of the device! Step 2：Install the Antenna Remove the plastic cap from the antenna connector and screw the... -
Page 4: Step 3：Connect The Sensors
Note: Do NOT connect the power supply when installing the antenna, as this may cause damage to the antenna circuit! Step 3：Connect the Sensors Unscrew the protective cover of the connector and plug the sensor into the RS-485 connector. When connecting the aviation connectors, align the widest groove on the male head to the position of the flat head, insert and tighten. - Page 5 When using a splitter, each RS-485 interface cannot connect to sensors with the same Modbus address. Each interface must be connected to sensors of the same voltage. For example, you can connect four 5V sensors to B1 port, while connecting four 12V sensors to B2 port, but do NOT connect both 5V and 12V sensors to the same port.
- Page 6 USB-to-TTL Cable and Driver Installation The aviation connect (blue part) is connected to the power port (B6) of Sensor Hub Data Logger and the USB port is connected to the computer. Install the driver: https://github.com/Jenkinlu001/SenseCAP/tree/master/Drivers Follow this path on your PC“Manage--Control Panel--Port”, and you can see the port number of the device you are using.
- Page 7 Click "General Settings" and the configuration interface will pop up.
-
Page 8: Step 5：Power On The Device
APN, APN username, APN password: Type in your SIM Card’s APN information. Note: After completing the parameters, make sure to click "Write". Enabling "Enable GPS" will result in a longer connection time. After configuring the server information, if you want to use the SenseCAP Cloud again, follow the similar method: In the main interface, type the command line: enter b =>... -
Page 9: Step 6：Connect The Power Cord
Step 6：Connect the Power Cord Unscrew the protective cover of the power supply connector, plug one end of the power extension cord into the power connector and tighten it, plug the other end of the power extension cord directly into the power adapter. Step 7：... - Page 10 Install the hoops and mount the collector to the pole. Step 9：Installation Guide - Solar Panels Mount the bracket to the solar panel. Install the solar panel through the U-hoop of the bracket to the pole (recommended pole diameter 76mm).
- Page 11 Package 2：S200/S500/S700/S800/S1000 + S2100 LoRaWAN Data Logger + Junction Box Kit + M2 Multi-Platform Preparation Picture Type Quantity Data Logger ONE Compact Weather Stati on Sensor Junction box M12 Cable 8 pin wire (40cm)
-
Page 12: Step 1：Configure The Gateway
Step 1：Configure the gateway There are two ways to connect to the Internet. Choose the one that worksfor you. Connect to Ethernet Cable. Connect the Ethernet cable to the device, and the indicator on the topwill show solid green if the gateway is successfully connected to theinternet. - Page 13 The appearance diagram and pin correspondence table are as follows: Description External 12V input voltage. The Data Logger can be powered by an external 12V DC power supply. When using 12V power supply, the battery will serve as backup power supply. 5V output voltage, providing 5V voltage to the sensor.
- Page 14 Remove the threaded cap from the front cover, thread the sensor cable through it, pass it through the front cover, and connect it to the terminal. Step 3：Connect to the junction box Prepare the following items: 12V DC adapter, Junction box, and 4-pin wire.
- Page 15 Attach the multi-function weather station's cables to the junction box. Connect the 12V DC adapter to the power supply. Step 4：Connect to the Sensor Wire sequence of ONE Compact Weather Station Sensor:...
- Page 16 The device adopts an M12 8-pin connector, the different colored pins provide power and data communication (as shown in the above diagram). When working with the RS-485, you can connect only 4 wires (not using a heating function), and the rest can be individually wrapped with tape to prevent short circuit.
- Page 17 Plugin the cable and tighten it clockwise. To complete the assembly. Tighten the screws and screw caps to check the waterproofing. If the wire diameter is too thin, add waterproof tape for winding.
- Page 18 Note: When assembling the device, it is necessary to install the waterproof pad of the Data Logger and the adapter box, and tighten the screw cap and screw, otherwise the waterproof effect of the device may be affected! If the wire diameter is too small, it can be wrapped with waterproof tape, as shown below:...
- Page 19 Step 5：Setup the S2100 -- Connect to Sensor to App Please click on the top right corner " + ", select "Add device", then enter the scanning interface to scan the QR code on the S2100 Data Logger. After successful scanning, fill in the "Device Name", click "Bind to account"、"Configuration Now".
- Page 20 Press button and hold for 3 seconds, the LED will flash at 1s frequency. At the same time, click "Ready, go to the next step", and wait for the device to appear.
- Page 21 Select the corresponding device, click "Data Logger Mode", and enter the settings interface.
- Page 22 Step 6：Configure basic parameters through App Click on the icon in the top right corner. Select "Choose Template"、"Pre-set 13", and choose the corresponding weather station from the list. After making the selection, click "Send", and you will receive a prompt saying "Set up successfully!"...
- Page 23 Step 7：Check Data on SenseCAP Portal On the SenseCAP App or the website SenseCAP Portal , you can check the device online status and the latest data. In the list for each Sensor, you can check its online status and the time of its last data upload.
