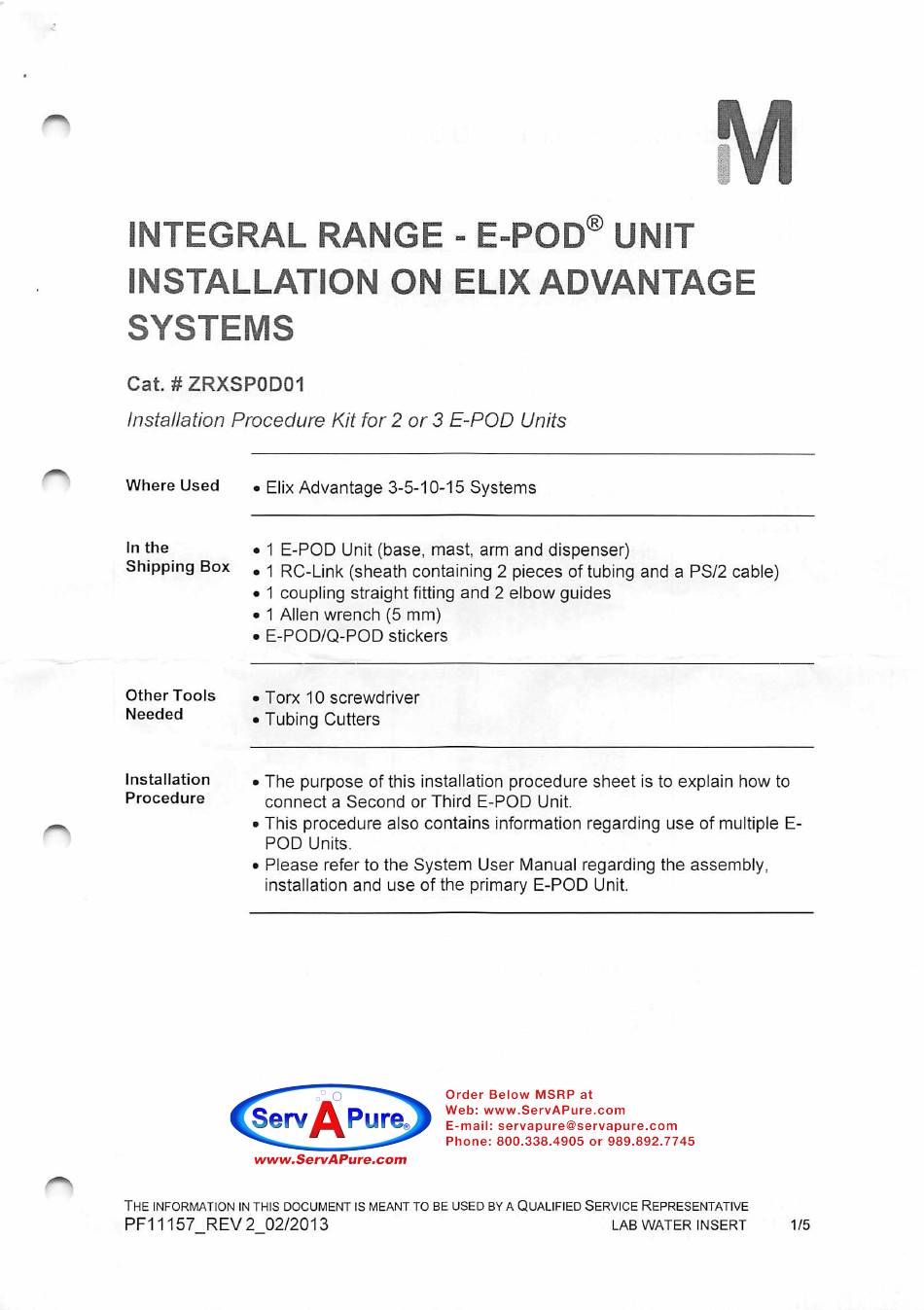

INTEGRAL RANGE - E-POD® UNIT
I N S T A L L A T I O N O N E L I X A D V A N T A G E
S Y S T E M S
C a t . # 2 R X S P 0 D 0 1
Installation Procedure Kit for 2 or 3 E-POD Units
Where Used • Elix Advantage 3-5-10-15 Systems
In the • 1 E-POD Unit (base, mast, arm and dispenser)
Shipping Box , i RC-Link (sheath containing 2 pieces of tubing and a PS/2 cable)
• 1 coupling straight fitting and 2 elbow guides
• 1 Allen wrench (5 mm)
• E - P O D / Q - P O D s t i c k e r s
O t h e r To o l s • To r x 1 0 s c r e w d r i v e r
Needed , Tubing Cutters
Installation • The purpose of this installation procedure sheet is to explain how to
Procedure connect a Second or Third E-POD Unit.
• This procedure also contains information regarding use of multiple E-
P O D U n i t s .
• Please refer to the System User Manual regarding the assembly,
installation and use of the primary E-POD Unit.
T h e i n f o r m a t i o n i n t h i s d o c u m e n t i s m e a n t t o b e u s e d b y a Q u a l i fi e d S e r v i c e R e p r e s e n t a t i v e
P F 1 1 1 5 7 R E V 2 0 2 / 2 0 1 3 L A B W A T E R I N S E R T 1 / 5
