ALAULM 01SNDK23-GREY Instructions Manual

Outdoor dog cage
Hide thumbs

Advertisement

Quick Links

INSTRUCTION

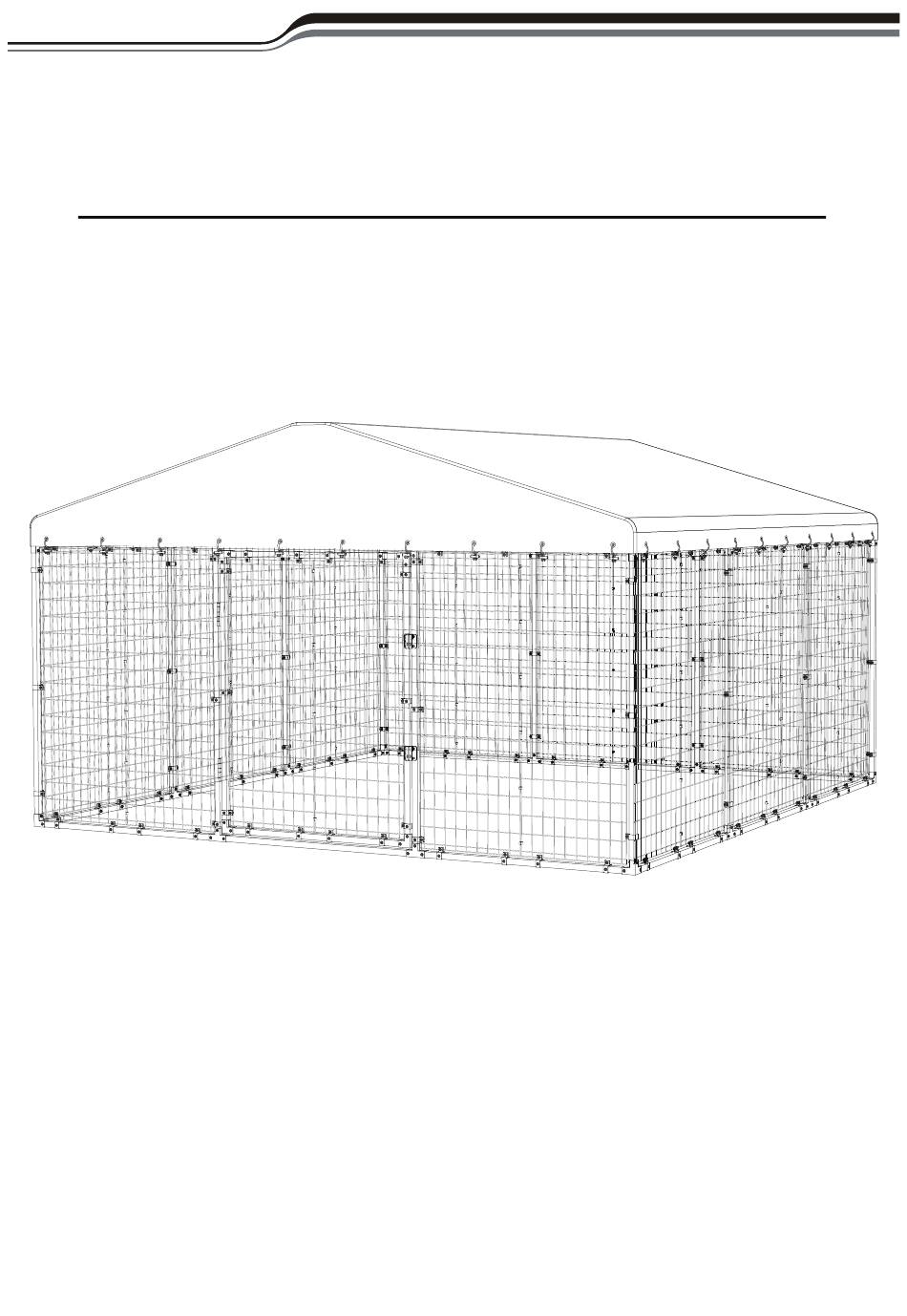

Outdoor Dog Cage
If you have any questions about the outdoot dog cage, please feel free to contact us.
Customer Service Email: Service@alaulm.com
01SNDK23-GREY
IMPORTANT
PLEASE READ BEFORE YOU COMMENCE ASSEMBLY
Follow the guidelines in this user guide to ensure correct
assembly and care for this product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01SNDK23-GREY and is the answer not in the manual?

Questions and answers

Summary of Contents for ALAULM 01SNDK23-GREY

  • Page 1 INSTRUCTION Outdoor Dog Cage If you have any questions about the outdoot dog cage, please feel free to contact us. Customer Service Email: Service@alaulm.com 01SNDK23-GREY IMPORTANT PLEASE READ BEFORE YOU COMMENCE ASSEMBLY Follow the guidelines in this user guide to ensure correct...

  • Page 3: Specifica�Ons

    SPECIFICATIONS...

  • Page 4: Table Of Contents

    ！ CATALOG Catalog Specifica�ons......................01 Before you begin.....................03 Plan Ahead ........................03 Exploded Views ......................04 Part List........................05 Extra .........................08 How to Assemble Dog Cage ..................09...

  • Page 5: Before You Begin

    ！ NOTICE Before You Begin Owner's Manual Before beginning construction，check local building codes regarding footings，location and other requirements.Study and understand this owner's manual.Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.Review all instructions before you begin and during assembly，follow the step sequence carefully for correct results.

  • Page 6: Exploded Views

    EXPLODED VIEWS...

  • Page 7: Part List

    PART LIST PARTS LIST Description Description Part 124.3CM Rods 18PCS 96.5CM Rods 22PCS 2PCS 96.5CM Rods 89CM Rods 2PCS Door frame support bar Right door frame bar Right door frame support bar 96.5CM Rods 3PCS 2PCS 50CM Rods 8PCS Corner connectors 2PCS Top bezel connector Top middle connector...
  • Page 8 PART LIST PARTS LIST Description Description Part Tee corner connector 4PCS 4PCS Four-way connectors 6PCS Four-way corner connector Door Fence Fencing 11PCS Monaural Clips 108PCS Corner clips 12PCS Binaural Clips 18PCS Pull Cord 40PCS Bolt M6*15 168PCS Bolt M6*35 234PCS 402PCS Open-end wrench 3PCS...
  • Page 9 1. Please ensure that all accessories are complete before starting the installation. 2. Due to the variety of accessories, many accessories may be glued together, please check carefully 3. If any accessories are missing or damaged, please contact the seller immediately. E-Mail: Service@alaulm.com...

  • Page 10: Extra

    EXTRA EXTRA Description Description Part Monaural Clips 5PCS Corner clips 2PCS Binaural Clips 2PCS Pull Cord 3PCS 10PCS Bolt M6*15 Bolt M6*35 10PCS 20PCS Hole Cover 2PCS WARNING: Failure to locate parts in accordance with these diagrams, or failure to use special parts provided with this equipment, may result in property damage or personal injury.

  • Page 11: How To Assemble Dog Cage

    Installation steps Step 1 :Connect the bottom frame rod(B) with a tee connector(K2) and a corner tee connector(K3). NOTE :Do not tighten the screws all the way. Note: The screw holes of the K3 connector are facing the direction of the door. M6*35 Step 2 :Insert the support rod(A, E and G) against the connector and...
  • Page 12 Installation steps Step 3 :Connect the upper top frame connecting rod(B and C) with a multi-interface connector(K2, K4 and K5) and screws(P). NOTE :Do not tighten the screws all the way. M6*35 Step 4 :Insert the top bezel connector(J2) into the long bar(A) and connect with screws(P).
  • Page 13 Installation steps Step 5 :Insert the corner connectors(J1) into the long bar(A) and connect with screws(P). NOTE :Please tighten all screws. M6*35 Step 6 :Insert the top middle connector(J3) into the long bar(A) and connect with screws(P). NOTE :Please tighten all screws. M6*35...
  • Page 14 Installation steps Step 7 :Insert the corner connectors(J1) into the long bar(A) and connect with screws(P). NOTE :Please tighten all screws. M6*35 Step 8 :Connect the roof edge frame and the support bar(I) with a four-way corner connector(K5). NOTE :Do not tighten the screws all the way. M6*35...
  • Page 15 Installation steps Step 9 :Connect the assembled side canopy parts and the middle canopy parts with connecting rods(H). NOTE :Please tighten all screws. M6*35 Step 10 :Insert the assembled canopy parts into the connecting rod(H) and connect them with screws(P). NOTE :Please tighten all screws.
  • Page 16 Installation steps Step 11 :Insert the assembled canopy into the top connector of the frame and attach it with screws(P). NOTE :Please tighten all screws. M6*35 Step 12 :Connect the horizontal rod of the door frame(D) and the right door frame bar(F) with door corner connector(K1). NOTE :Do not tighten the screws all the way.
  • Page 17 Installation steps Step 13 :Connect door frames with door corner connector(K1). NOTE :Lift the right door frame rod to the highest, then lock the left s crew and adjust until the door frame can be completely closed. Please tighten all screws. M6*35 Step 14 :Place the ground nails(U) in the middle of the bottom frame...
  • Page 18 Installation steps Step 15 :Attach the monaural clips(M1) to the frame bar with long screws(P). NOTE :Do not tighten the screws all the way. M6*35 Step 16 :Clamp the fencing with the monaural clips and lock it with short screws(O). NOTE :Do not tighten the screws all the way.
