Summary of Contents for Euronda Aquadist
- Page 1 Instructions manual Aquadist...
- Page 2 Please also note that Euronda S.p.A. declines all liability for incorrect or insufficient interpretations of the translations of this manual: in the event of a dispute, only the manual written in the Italian language shall apply.
-
Page 3: Table Of Contents
INDEX INTRODUCTION ............................... 3 GENERAL NOTES ON DELIVERY ......................3 GENERAL INSTRUCTIONS ......................... 3 EXPLANATION OF SYMBOLS ........................4 GUARANTEE INFORMATIONS ........................4 CHAPTER 1 ..............................5 1.1 - DIMENSION OF THE MACHINE AND OF THE PACKAGE ..............5 1.2 - CONTENTS OF PACK.......................... 6 CHAPTER 2 .............................. -
Page 4: Introduction
If any damage or missing parts are discovered, give full details to the forwarder, dental depot or Euronda S.p.A immediately. All of the dimensions shown in this manual are not binding. -
Page 5: Explanation Of Symbols
GUARANTEE INFORMATIONS Euronda guarantees the quality of its equipment, if used in accordance with the instructions supplied in this manual, and according to the conditions printed on the warranty certificate. The warranty is valid from the date of purchase by the client and the details can be found by registering on www.euronda.com/myeuronda... -
Page 6: Chapter 1
CHAPTER 1 1.1 - DIMENSION OF THE MACHINE AND OF THE PACKAGE 17.5 cm 36.5 cm 23 cm Dimensions of the distiller Aquadist 39.7 cm 27.9 cm 28.8 cm Overall dimension of the package Aquadist_Ing_rev06 – 15/01/2021... -
Page 7: Contents Of Pack
1.2 - CONTENTS OF PACK The pack contains: Distiller Protective cover Activated charcoal (6x) Power cable Pack of residue cleaner Collection bottle Instructions manual Guarantee certificate Aquadist_Ing_rev06 – 15/01/2021... -
Page 8: Chapter 2

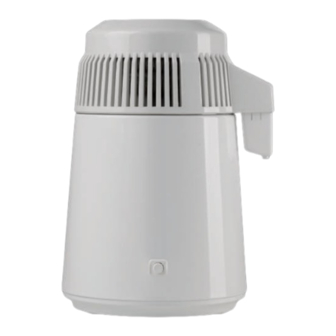

CHAPTER 2 2.1 - DESCRIPTION OF THE DISTILLER The Euronda Aquadist distiller produces pure water in the most natural way by boiling water and condensing steam. When the distiller is turned on, the water temperature rises gradually, until 100°C. Chemical substances, heavy metals and other contaminating agents will be left as a residue on the bottom of the stainless steel tank. -
Page 9: Characteristics Of The Distiller
2.2 - CHARACTERISTICS OF THE DISTILLER Size 23cm (Ø) x 36,5cm (H) Power source AC 230-240/ 50-60Hz Power consumption 580W (total) Weight 3,5 Kg Capacity 4 litres Aquadist_Ing_rev06 – 15/01/2021... -
Page 10: Chapter 3
CHAPTER 3 3.1 - OPERATING INSTRUCTIONS 1. The assembly of PP bottle and nozzle The accessories of PP bottle are inside the distiller body. Please take these accessories of PP bottle out and check these are completed or not. Distiller + PP bottle Completed accessories of PP bottle Bottle body Cover... - Page 11 2. Pour water into the stainless steel tank. Use hot/cold water to fill the tank and take care not to exceed the max level. If hot water is used, the distilling process will take loss time. 3. Secure the upper cover and plug the power cable into the distiller. Put the collection bottle and protective cover in a safe place and make sure they are aligned.
-
Page 12: Safety Precautions
The first time the distiller is used, the switch is already in the “on” position. It therefore isn’t necessary to turn it on the first time. The process is automatically interrupted when distilling has finished. Approximately one hour after turning on the power switch, the distilled water begins to drip down into the collection bottle. -
Page 13: Chapter 4
CHAPTER 4 4.1 - CLEANING INSTRUCTIONS Use neutral household detergent to clean the outside of the distiller and dry it (the rubber gasket inside the upper cover is positioned in a specific direction; please do not remove). The inside of the stainless steel tank is smooth. Never use abrasive detergents. After each cycle, rinse the inside of the boiler with clean water. -
Page 14: Problem Solving Guide
4.2 - PROBLEM SOLVING GUIDE CAUSES PROBLEM Distiller water is not produced Power cable not plugged into power socket or upper cover cable not plugged into the socket at the base ofthe distiller. no power at socket. start button not pressed. Not enough distilled water is produced water not filled to max level. -
Page 15: Chapter 5
CHAPTER 5 5.1 - SCRAPPING INSTRUCTIONS The Aquadist distiller is made from iron materials, electric components and plastic materials. No particular operations are required after demolition. Do not dump the unit in an unguarded place; consign it to a waste disposal agency for scrapping. - Page 16 EURONDA S.p.A. Via dell'Artigianato, 7 - 36030 Montecchio Precalcino (VI) - ITALY Tel. +39 0444 656111 - Fax +39 0444 656199 - Internet: www.euronda.com - E-mail: info@euronda.com Aquadist_Ing_rev06 – 15/01/2021...
