DSX Installation Guide
The Lantronix UDS-1100 is an ethernet to serial adapter that works with all DSX
Controllers. These instructions use Kb2cW.exe to program and configure the unit.
The UDS-1100 communicates RS-232 or RS-485 to the Controller based on
configuration and wiring.

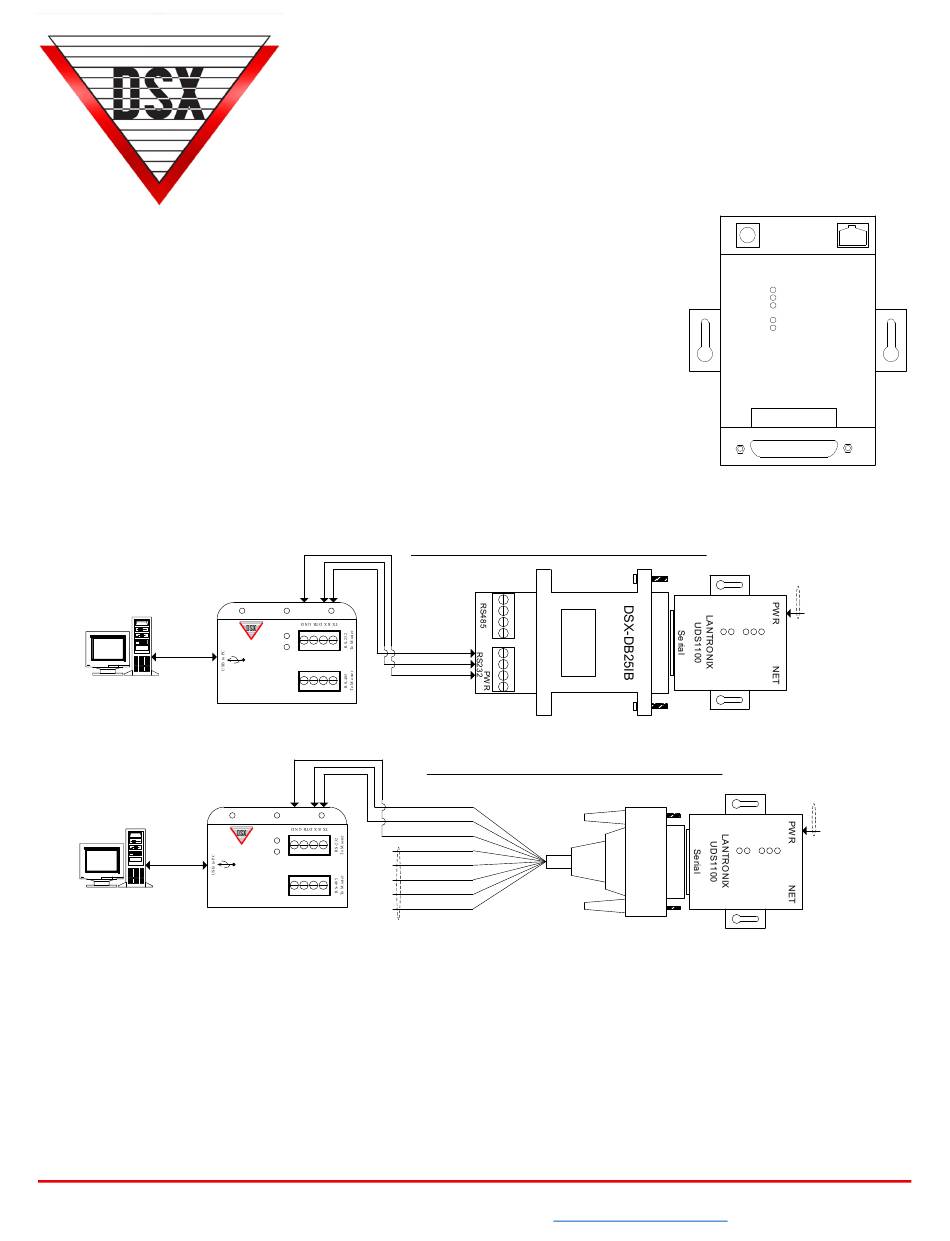

Connect the Unit to a Desktop PC or Laptop for configuration by using the DSX-
DB25IB connector or supplied cable, connecting as shown to a DSX-USB. Use the
supplied power supply to power the unit while programming. After configuration, it
is powered from the DSX Controller or CDM through the same DB-25 connector.
Programming Connections
Comm Server
DSX A cces s Sys tems , Inc.
Comm Server
DSX Access Systems, Inc.
®
Lantronix UDS-1100
KB2C Configuration
TX
DSX A cc es s Sys te ms , Inc.
RX
(800) 346-5288
DSX-USB
TX+ TX- RX+ RX -
TX
RX
(800) 346-5288
DSX-USB
TX+ TX- RX+ RX -
NOT USED FO R
CONFIGURING UNIT
214-553-6140
Wire this way to Configure the unit
TX+
TX-
RX+
RX-
TX
RX
GND
+12V
Wire this way to Configure the unit
BROWN
RED
BLUE
TEAL
WHI TE/BLK
GREY/BLK
RED/BLK
BROWN/BLK
www.dsxinc.com
9-30vdc
10/100
9-24vac
Power
10/100 Mb Link
10/100 Activity
Diagnostic
Status
UDS
Universal Device Server
UDS1100
LANTRONIX
Serial
RS232/422/485
13
1
25
14
USE LANTRONIX
PO WER SUPPLY
FOR
CONFIGURING
UNIT
12V
USE LANTRONIX
PO WER SUPPLY
FOR
CONFIGURING
UNIT
12V
(10/2023)
Advertisement
Summary of Contents for DSX Access System Lantronix UDS-1100
- Page 1 ® Lantronix UDS-1100 KB2C Configuration DSX Installation Guide The Lantronix UDS-1100 is an ethernet to serial adapter that works with all DSX 9-30vdc 10/100 Controllers. These instructions use Kb2cW.exe to program and configure the unit. 9-24vac The UDS-1100 communicates RS-232 or RS-485 to the Controller based on...
- Page 2 Programming Instructions Disconnect power to the UDS1100. 2. Make the connections to the DSX-USB module. 3. Start KB2CW and select Comm Port / Define Port and enter the port number the DSX-USB is connected to. 4. Caps Lock is OFF, Hold x on the keyboard, power up the unit. 5.
- Page 3 Master Controller Communications continued….. LANTRONIX UDS1100 MASTER PANEL ENCLOSURE DSX-1042 LANTRONIX UDS1100 MASTER Serial 18 19 20 21 22 10 11 12 13 14 15 16 17 TX RX TX RX LE D2 INP 5 INP 7 S UB MA S TER LE D3 +12V INP 6...
- Page 4 Sub Controller Communications LANTRONIX UDS1100 SUB PANEL TO SUB P ANE LS IN ENCLOS URE ENCLOSURE WITH SUBS S ET J 1 & J2 AS "S UB" S ET J1 & J2 A S DSX-1040CDM IF THE RE IS NOT A "MA S"...
