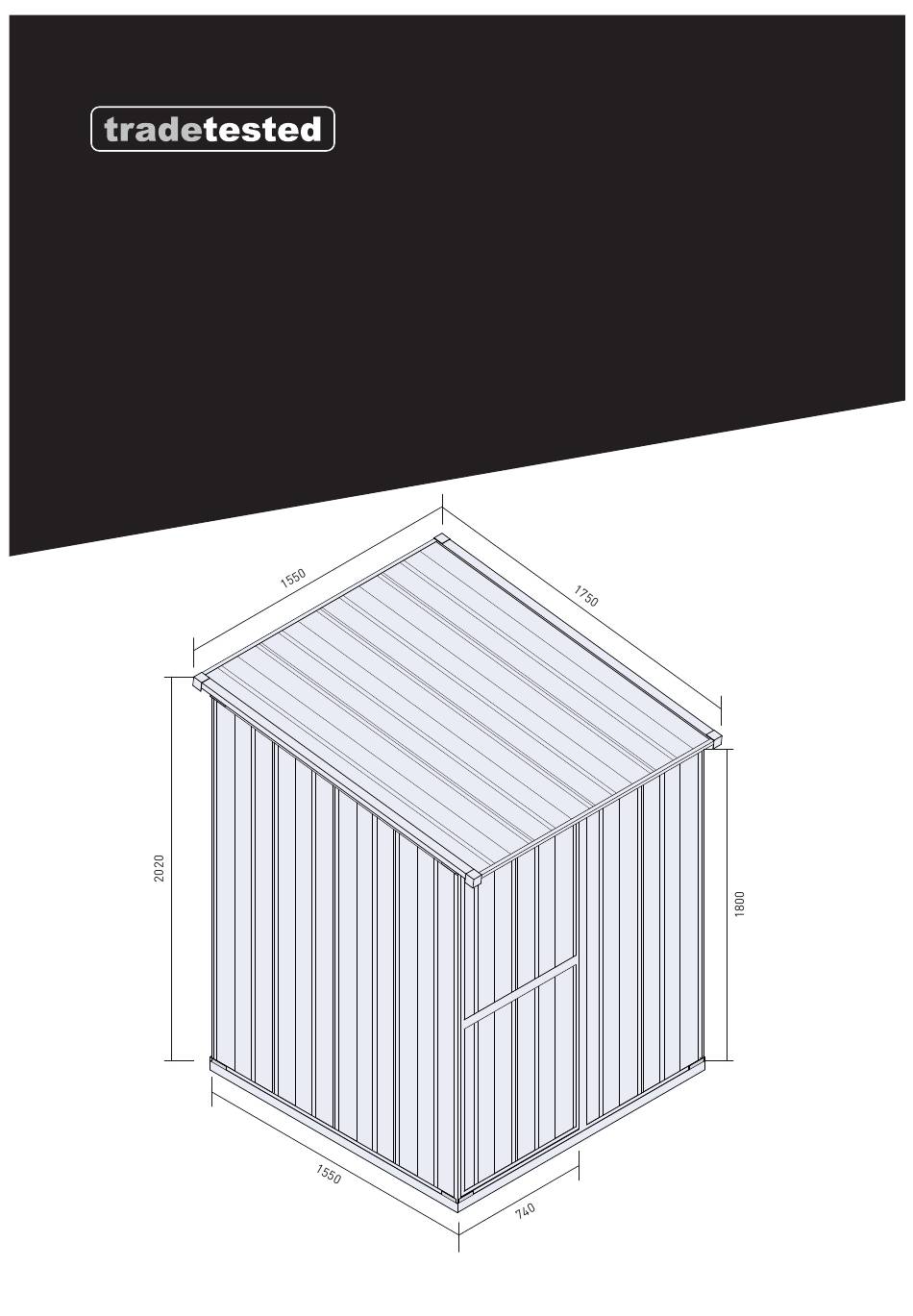

- Page 1 GARDEN SHED MANUAL GS502-V1 Shed Size at Roof: 1550x 1750 x2020mm Shed Size at Floor: 1550x1550x2000mm Door Size: 1750x740mm Internal Shed Size at Floor: 1510x1510mm www.tradetested.co.nz 0800 800 880 support@tradetested.co.nz...
-
Page 2: Before You Begin
● Never concentrate all your weight on the roof of the structure. When using a step ladder make sure it’s fully open and on a level surface. ● To avoid any damage, do not a empt to assemble the building on a windy day. The larger panels can act as sails making construc on difficult and unsafe. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED... -
Page 3: Assembly Overview
Step 5: Assemble the roof Step 6: Assemble the door Step 7: Construc ng the walls Step 8: Construc ng the roof Step 9: Installing the door Step 10: Fixing to the floor Step 11: Finishing touches Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED... - Page 4 ASSEMBLY INSTRUCTIONS...
- Page 5 1750 Door Channel U175 Door Square tube 1730 D173 Door Bar H074 Door Brace 1110 Z111 Bolt Bolt Hinge Hinge If you’re missing anything, just head to www.tradetested.co.nz and get in touch. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 6 The holes should be up, on the outside face of the shed. ○ Check that the panels are pushed hard into the channel and are perpendicular. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 7 ○ Check that the Profile Shape panels are pushed hard into the channel and are perpendicular to edge. #U155 #U155 Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 8 ○ Lay the front wall panels out as shown with the large rib overlapping the small. ○ Place the front wall #MR180 channel over the #W180 wall panel. Have the pre-drilled holes in the #MR180 on the panel side. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 9 #MR180. Indicated with an X in diagram. These need to be left undone. ○ Once finished, lay the wall flat out of the way. #Z0745 #U0745 UNDER UNDER #U155 #U155 FLUSH ENDS Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 10 ○ Do not add screws to the first and last holes. Indicated with an X in diagram. These need to be left undone. ○ Once finished, lay the roof flat out of the way. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 11 Don’t worry if you have placed a rivet incorrectly, they are easy to remove. Just drill directly through the top of the rivet using the same drill bit. This will remove the rivet head, causing the whole rivet to fall out. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 12 1 hinge length from the top and bottom of the door. Use the hinge itself as a guide. ○ Attach the smaller side of the hinges to the door channel. FLIP Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 13 fixing. This will protect the shed more from heavy weather. Temporary Level / Block under corner anchor. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 14 ○ Once the walls are up and the edges of the panels overlap, we suggest running sealant up the full height of the corner before fixing. This will protect the shed more from heavy weather. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
- Page 15 ○ Use tape provided to cover over the insides of the shed, all around, between the top of the wall channels and the underside of the roof panels. Shown dashed in the cut view. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED...
-
Page 16: Installing The Door
#H074, and then to secure the bolt keeper to the left door frame, #U180. Pilot holes may be required here as any scratches made will be visible. Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED... -
Page 17: Fixing To The Floor
○ If you are having any issues during assembly, or decide you require an assembly service, just give us a call on 0800 800 880 or email support@tradetested.co.nz - our friendly team are here to help! Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED... -
Page 18: Reference Images
Door Bracing - Top Corner Anchor Exterior - Bottom Door Hinge Door Bracing - Centre Corner Cap Pad Bolt Door Bar Hook Anchor Corner Anchor Interior - Bottom Door Bracing - Bottom Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED... -
Page 19: Care And Maintenance
● Do not store swimming pool chemicals in your building as they can cause corrosion. ● Use silicone caulking to further water ght seals throughout the building. ● Peel off part number s ckers with a cloth, soap and water. ● Use silicone to further weatherproof seals around the shed (not included). Trade Tested - GS502-V1 - 1.55x1.55 GARDEN SHED... - Page 20 CONGRATS ON YOUR NEW SHED! Stoked with your shed? Take a photo and leave us a review or tag us @tradetested on social media, we'd love to see it! www.tradetested.co.nz 0800 800 880 support@tradetested.co.nz...
