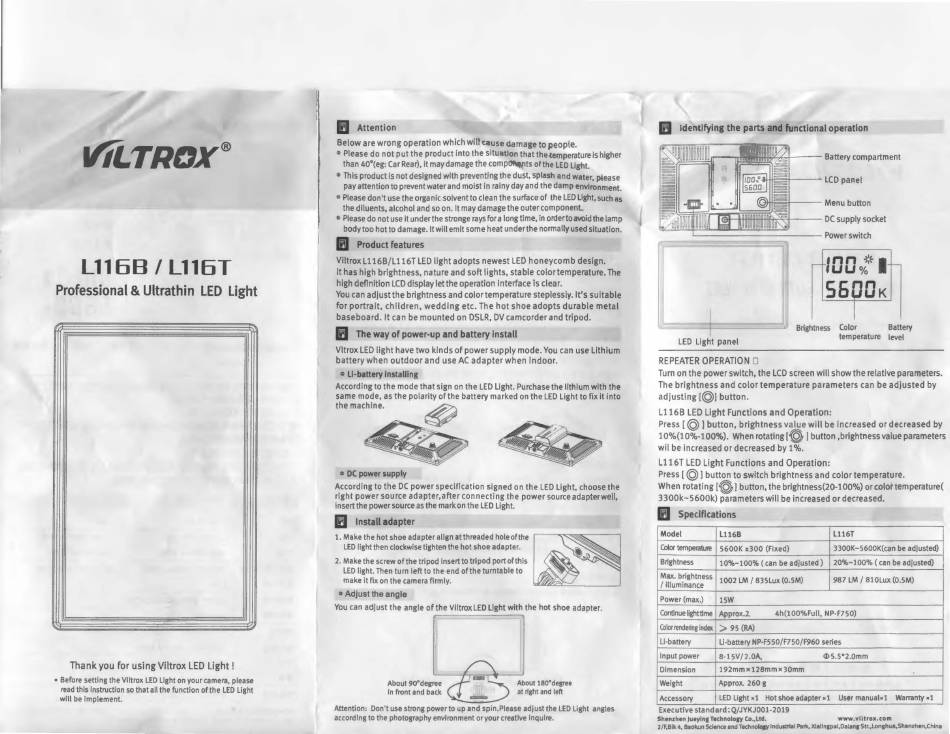

Viltrox L116B Quick Start Manual

"1LTROX®
L116B / L116T
Professional
&
Ultrathin LED Light
Thank you for using Viltrox
LED
Light
!
• Before setting the Vlltrox LED Light on your camera, please
read this Instruction so thatall the function of the LED Light
will be Implement.
B
Attention
Below are wrong operation which will cause damage to people.
• Please do not put the product into the situation that the temperature is higher
than 40°(eg: Car Rear), it may damage the comp~ts of the LED light.
• This product is not designed with preventing the dust, splash and water, please
pay attention to prevent water and moist in rainy day and the damp environment.
0
Please don't use the organic solvent to clean the surface of the LED light, such as
the dlluents, alcohol and so on. It may damage the outer component.
• Please do not use It under the stronge rays fora long time, in ordertoawidthe lamp
body too hot to damage. It will emit some heat under the normally used situation.
II
Product features
Viltrox L116B/L116T LED light adopts newest LED honeycomb design.
It has high brightness, nature and soft lights, stable colortemperature. The
high definition LCD display letthe operation interface ls clear.
You can adjustthe brightness and colortemperature steplessly. It's suitable
for portrait, children, wedding etc. The hot shoe adopts durable metal
baseboard. It can be mounted on DSLR, DV camcorder and tripod.
II
The way of power-up
and battery
install
Vltrox LED light have two kinds of power supply mode. You can use Lithium
battery when outdoor and use AC adapter when indoor.
• LI-battery Installing
According to the mode that sign on the LED Light. Purchase the lithium with the
same mode, as the polarity of the battery marked on the LED light to fix it into
the machine.,_...._-._
~
• DC power supply
According to the DC power specification signed on the LED light, choose the
right power source adapter.after connecting the power source adapter well,
insert the power source as the mark on the LED light.
El
Install
adapter
1. Make the hot shoe adapter align at threaded hole of the
LED light then clockwise tighten the hot shoe adapter.
2. Make the screw of the tripod Insert to tripod port of this
LED light. Then turn left to the end of the turntable to
make It fix on the camera firmly.
• Adjust the angle
You can adjust the angle of the ViltroxLEDllght with the hot shoe adapter.
About 90"degree
In front and
back
About
180"degree
at right
and left
Attention: Don't use strong power to up and spin.Please adjust the LED Light angles
according to the photography environment or your creative Inquire.
II
Identifying the parts
and
functional operation
(G.~~1---
Menu button
DC supply socket
Power switch
- - - Brightness Coler Battery
LED light panel
temperature level
REPEATER OPERATION D
Tum on the power switch, the LCD screen will show the relative parameters.
The brightness and col or temperature parameters can be adjusted by
adjusting[@] button.
Ll 16B LED Light Functions and Operation:
Press [©)button, brightness value will be increased or decreased by
10%(10%-100%). When rotating[@,
I
button ,brightness value parameters
wll be increased or decreased by 1 %.
L116T LED Light Functions and Operation:
Press [©I button to switch brightness and color temperature.
When rotating[@,) button, the brightness(20-100%) orcolottemperature(
3300k~5600k) parameters will be increased or decreased.
II
Specifications
Model
L116B
L116T
Color
temperalure 5600K t300 (Fixed) 3300K-5600K(can be adjusted)
Brightness
10%-100% ( can be adjusted) 20%-100% ( can be adjusted)
Max. brightness 1002 LM / 835Lux (0.5M)
987 LM / 81 0Lux (0.5M)
/ illuminance
Power (max.) 15W
c.ontinuelightttme Approx.l 4h(100%Full, NP•F750)
Color
rendering
index
>
95
(RA)
LI-battery LI-battery NP•F550/F750/F960 series
Input power
8·15V/2.0A, cJ>5.5"2.0mm
Dimension
192mmxt28mmx30mm
Weight Approx. 260
g
Accessory LED Light x1 Hot shoe adapter• 1 User manual• 1 Warranty •1
Executive standard: Q/JYKJ00l-2019
Shenzhen Ju1yln1 TechnolOIY Co.,Ltd. www.vlltrox.com
2/F,Blk 4. Bookun Science and Technolqty Industrial Park, Xlalln1pal.Oal1n, Str.,Lonshua,Shenzhen,China
