VBOX 3iS Quick Start Manual

Single antenna
Hide thumbs
1
2
3

Advertisement

Table of Contents

07 External IMU Integration - VBOX 3iS Single Antenna (v2)
https://en.racelogic.support//Product_Info/Sensors/VBOX_3iS_Product_Range/
VBOX_3iS_Single_Antenna/VBOX_3iS_Single_Antenna_(v2)/User_Guide_-
_VBOX_3iS_Single_Antenna_(v2)/07_External_IMU_Integration_-_VBOX_3iS_Single_Antenna_(v2)

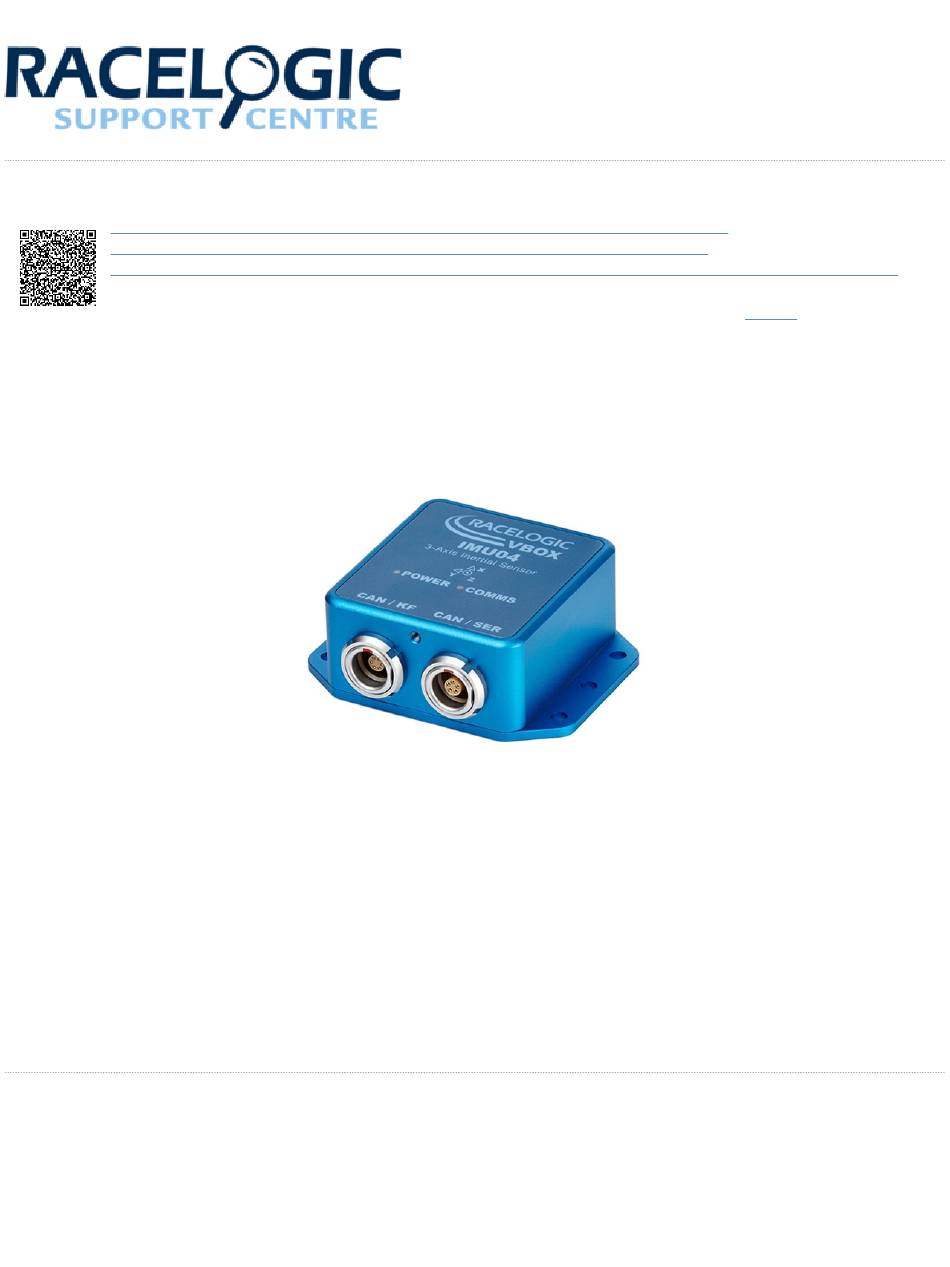

Instead of using the internal IMU on the VBOX 3iS, you can integrate an external IMU04. An external
IMU04 will perform the same functions as the internal IMU, but it can be more beneficial in certain circumstances, such
as if an IMU04 is already mounted on the test car or if the VBOX 3iS is unable to be firmly mounted in the vehicle.
You can either mount an external IMU04 on the roof of the vehicle or inside the vehicle.
If you mount the IMU on the roof, you can translate the data from the roof to another point on the vehicle. When roof-
mounted is enabled, a 1 m Z offset will automatically be added to translate the filtered speed down into the vehicle
and towards the centre of gravity.
If the Kalman Filter data is required relative to an alternate or more precise location on the vehicle, you should make
the measurements from the centre of the IMU to the desired location. As the IMU is housed in an enclosure, it is not
easy to make precise measurements. We recommend that you take the Z measurement from the centre of the GPS
antenna (provided that 3 cm is subtracted from the physical measurement). Any translation measurements must be
made on all 3 axes, X, Y and Z.

Required Equipment

• VBOX 3iS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3iS and is the answer not in the manual?

Questions and answers

Summary of Contents for VBOX 3iS

  • Page 1 IMU04 will perform the same functions as the internal IMU, but it can be more beneficial in certain circumstances, such as if an IMU04 is already mounted on the test car or if the VBOX 3iS is unable to be firmly mounted in the vehicle.
  • Page 2 Setup Hardware IMPORTANT The IMU04 must be connected to the VBOX 3iS before you apply power. This is to ensure that the data is correctly synchronised. 1. Fit your VBOX 3iS in the test vehicle, and mount the IMU as described here.
  • Page 3 IMU after setting up your VBOX 3iS. This will automatically run through after the VBOX unit has gained satellite lock. When the initialisation process is complete, Stationary Initialisation Complete will display on the front panel for 2 seconds before displaying Waiting For Movement.
