- Page 1 User manual Spiral Mixer Models: 245110, 245120, 245130 1.00 Translation of the original instructions...
- Page 3 Index Exterior figure Internal decomposition diagram Technical parameter Attention Electric diagram EC Declaration of Conformity...

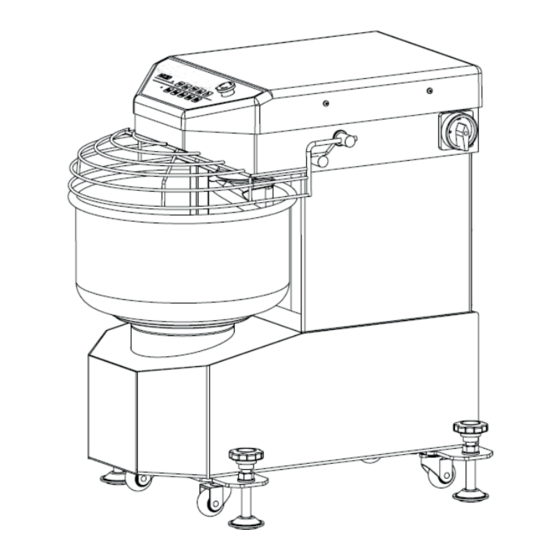

- Page 4 Exterior figure 245110 Names of spare parts Quantity Top cover Safety switch Control panel Emergency Switch Frequency changer Baseboard Foot pad...
- Page 5 Exterior figure 245120 and 245130 Names of spare parts Quantity Emergency switch Safety switch Power switch Frequency changer Adjustable support foot Trundle...
- Page 6 Internal decomposition diagram 245110...
- Page 7 Names of spare parts Belt 375*15 Belt wheel z19*20 Short sleeve Belt 800*15 Belt wheel z108 Spiral axle’s sleeve Bearing 6004 Spiral axle Ring Dividing paste pole Screw Bowl Gasket Spring gasket Screw Bowl alxe Belt 740*15 Spiral hook Screw Screw Spring gasket Gasket...
- Page 8 Internal decomposition diagram 245120 and 245130...
- Page 9 Names of spare parts Belt xz Big belt wheel Bearing Bearing Spiral axle Dividing paste pole Bowl’s bearing seat Bowl’s big chain wheel Intermediate shaft’s belt wheel Sleeve Spacer bush Bearing Motor’s small belt wheel The above board Motor Intermediate shaft The following board Screw Small chain wheel...
-
Page 10: Technical Parameter
Technical parameter Model 245110 245120 245130 Rated current (A) Rated volt (V) 230~ 230~ 230~ Input power (W) 1300 1800 Allowed quantity (kg) 0.25–3.5 0.25–8 0.25–12.5 Spiral speed (r/min) 108–272 130–320 130–320 Bowl speed (r/min) 11–27 13–32 13–32 Specification of power cord 1 mm2 1 .5 mm2... - Page 11 Attention 1. Before use, the machine must be placed on a level ground, and then the four supporting feet of the machine should be adjusted to make the machine run smoothly. 2. Before the first use of the new machine, please thoroughly clean the dough drum, dough hook, dividing rod and other parts in contact with food with warm water and dishcloth and dry.
- Page 12 Electric diagram 245110...
- Page 13 Electric diagram 245120 and 245130...
-
Page 14: Ec Declaration Of Conformity
EC Declaration of Conformity In accordance with the Machinery Directive 2006/42/EC, annex II, no. 1 A Manufacturer: TECHNICA GROUP spółka z ograniczoną odpowiedzialnością sp. k. Address: ul. Miłosna 2, Ochaby Małe, 43-430 Skoczów Machinery name: Spiral mixer Type: 245110, 245120, 245130... - Page 15 Name and address of the person authorized to compile the technical file, who must be established in the Community: Ruben Bujok ul. Miłosna 2, Ochaby Małe 43-430 Skoczów, Poland...
- Page 16 TECHNICA GROUP spółka z ograniczoną odpowiedzialnością sp. k. ul. Miłosna 2, 43-430 Ochaby Małe, tel.: +48 333 00 11 00, www.sklep.technica.pl...
