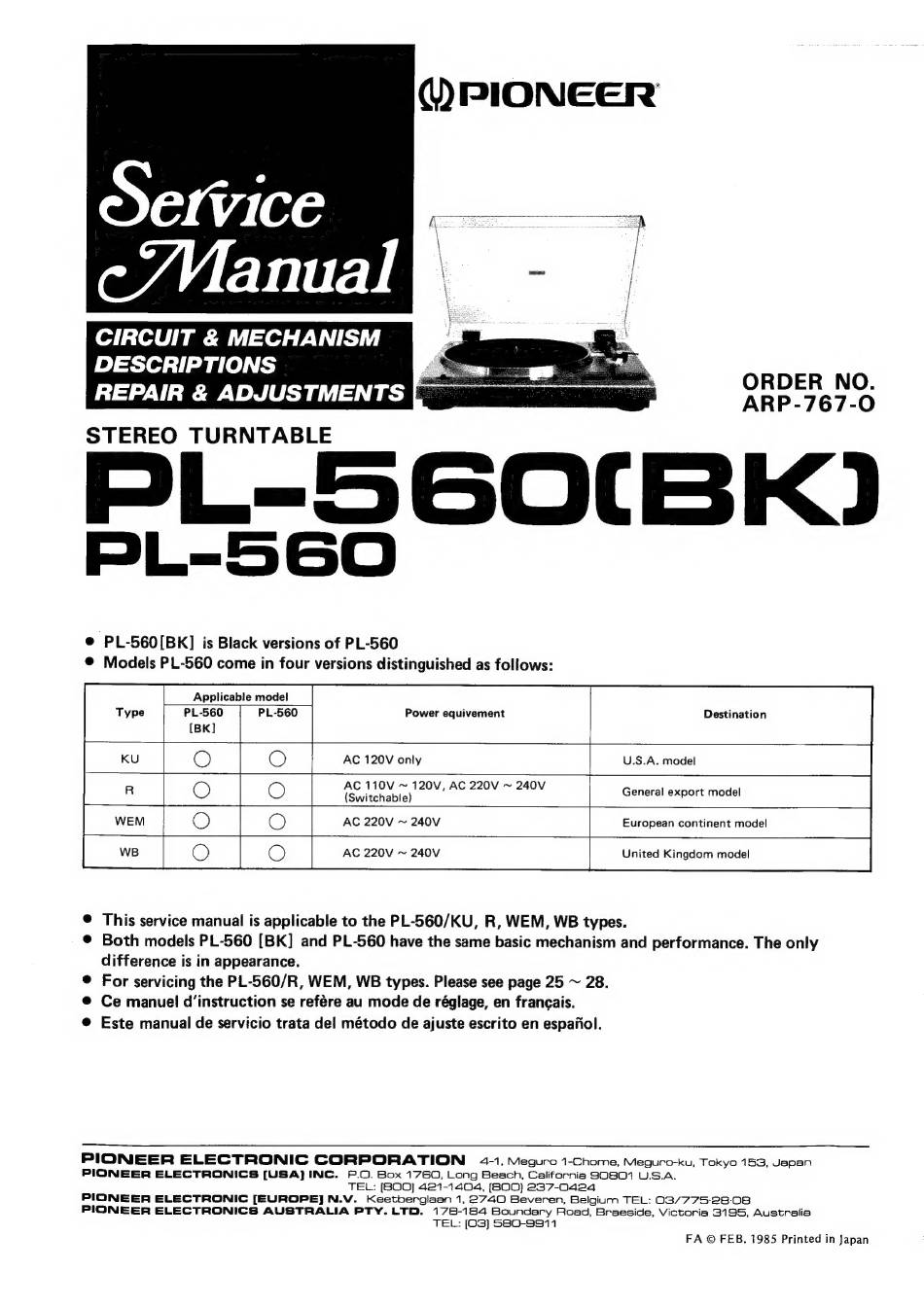

Pioneer PL-560 BK Service Manual

Service
AL ETIET
CIRCUIT & MECHANISM
DESCRIPTIONS ORDER NO
STEREO TURNTABLE
L-S6O(CBK)
PL-560
@ PL-560[BK] is Black versions of PL-560
® Models PL-560 come in four versions distinguished as follows:
Applicable model
PL-560 PL-560 Power equivement Destination
[BK]
O AC 120V only U.S.A. model
AC 110V ~ 120V, AC 220V ~ 240V
(Switchable) General export model
OQ AC 220V ~ 240V European continent model
AC 220V ~ 240V United Kingdom model
@ This service manual is applicable to the PL-560/KU, R, WEM, WB types.
For servicing the PL-560/R, WEM, WB types. Please see page 25 ~ 28.
Ce manuel d'instruction se refére au mode de réglage, en francais.
Este manual de servicio trata del método de ajuste escrito en espaiiol.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS [USA] ING. P.O. Box 1760, Long Beach, California $0801 U.S.A.
TEL: [B00] 421-1404, [800) 237-0424
PIONEER ELECTRONIC [EUROPE] N.V. Keetbergiaan 1,2740 Beveren, Belgium TEL: 03/775:28-08
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia
TEL: (03) 580-9911
FA © FEB. 1985 Printed in Japan
