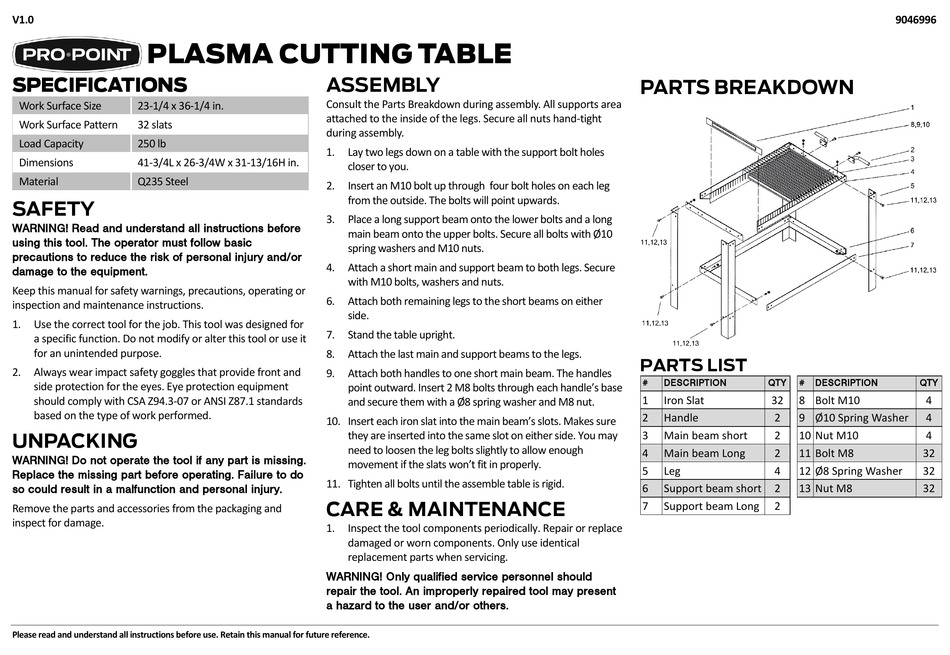

pro.point 9046996 Quick Start Manual

V1.0
PLASMA CUTTING TABLE
SPECIFICATIONS
Work Surface Size 23-1/4 x 36-1/4 in.
Work Surface Pattern 32 slats
Load Capacity 250 lb
Dimensions 41-3/4L x 26-3/4W x 31-13/16H in.
Material Q235 Steel
SAFETY
WARNING! Read and understand all instructions before
using this tool. The operator must follow basic
precautions to reduce the risk of personal injury and/or
damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
1. Use the correct tool for the job. This tool was designed for
a specific function. Do not modify or alter this tool or use it
for an unintended purpose.
2. Always wear impact safety goggles that provide front and
side protection for the eyes. Eye protection equipment
should comply with CSA Z94.3-07 or ANSI Z87.1 standards
based on the type of work performed.
UNPACKING
WARNING! Do not operate the tool if any part is missing.
Replace the missing part before operating. Failure to do
so could result in a malfunction and personal injury.
Remove the parts and accessories from the packaging and
inspect for damage.
Please read and understand all instructions before use. Retain this manual for future reference.
ASSEMBLY
Consult the Parts Breakdown during assembly. All supports area
attached to the inside of the legs. Secure all nuts hand-tight
during assembly.
1. Lay two legs down on a table with the support bolt holes
closer to you.
2. Insert an M10 bolt up through four bolt holes on each leg
from the outside. The bolts will point upwards.
3. Place a long support beam onto the lower bolts and a long
main beam onto the upper bolts. Secure all bolts with Ø10
spring washers and M10 nuts.
4. Attach a short main and support beam to both legs. Secure
with M10 bolts, washers and nuts.
6. Attach both remaining legs to the short beams on either
side.
7. Stand the table upright.
8. Attach the last main and support beams to the legs.
9. Attach both handles to one short main beam. The handles
point outward. Insert 2 M8 bolts through each handle's base
and secure them with a Ø8 spring washer and M8 nut.
10. Insert each iron slat into the main beam's slots. Makes sure
they are inserted into the same slot on either side. You may
need to loosen the leg bolts slightly to allow enough
movement if the slats won't fit in properly.
11. Tighten all bolts until the assemble table is rigid.
CARE & MAINTENANCE
1. Inspect the tool components periodically. Repair or replace
damaged or worn components. Only use identical
replacement parts when servicing.
WARNING! Only qualified service personnel should
repair the tool. An improperly repaired tool may present
a hazard to the user and/or others.

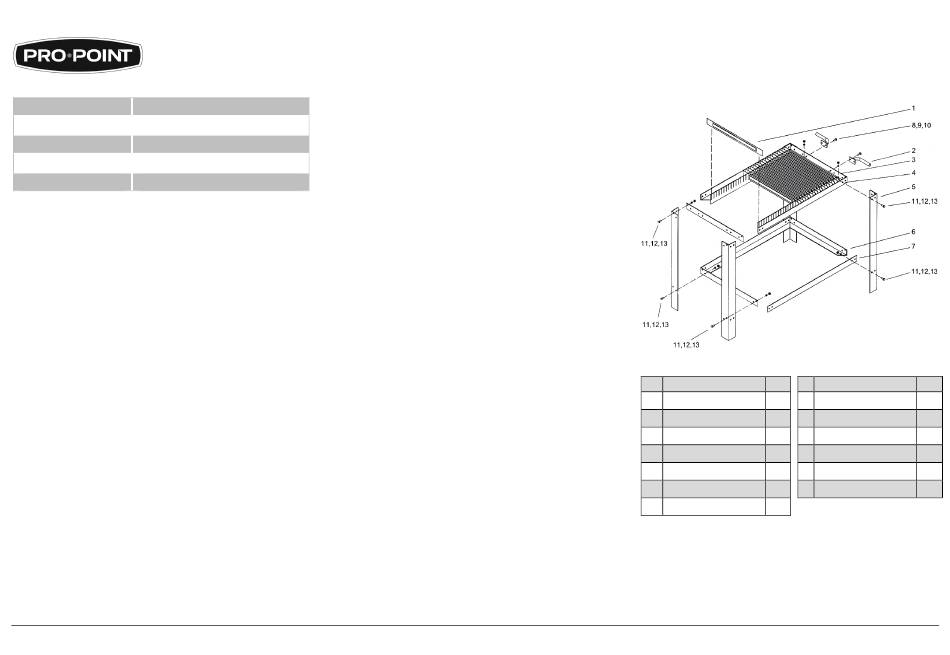

PARTS BREAKDOWN
PARTS LIST
# DESCRIPTION QTY # DESCRIPTION
1 Iron Slat 32 8 Bolt M10
2 Handle 2 9 Ø10 Spring Washer
3 Main beam short 2 10 Nut M10
4 Main beam Long 2 11 Bolt M8
5 Leg 4 12 Ø8 Spring Washer
6 Support beam short 2 13 Nut M8
7 Support beam Long 2
9046996
QTY
4
4
4
32
32
32
