ProLite ALLUVIUM PC02010004 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Scan me on your
phone camera
to watch our
assembly video.
USER MANUAL
PC02010004
PRODUCT CODE:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALLUVIUM PC02010004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProLite ALLUVIUM PC02010004

Summary of Contents for ProLite ALLUVIUM PC02010004

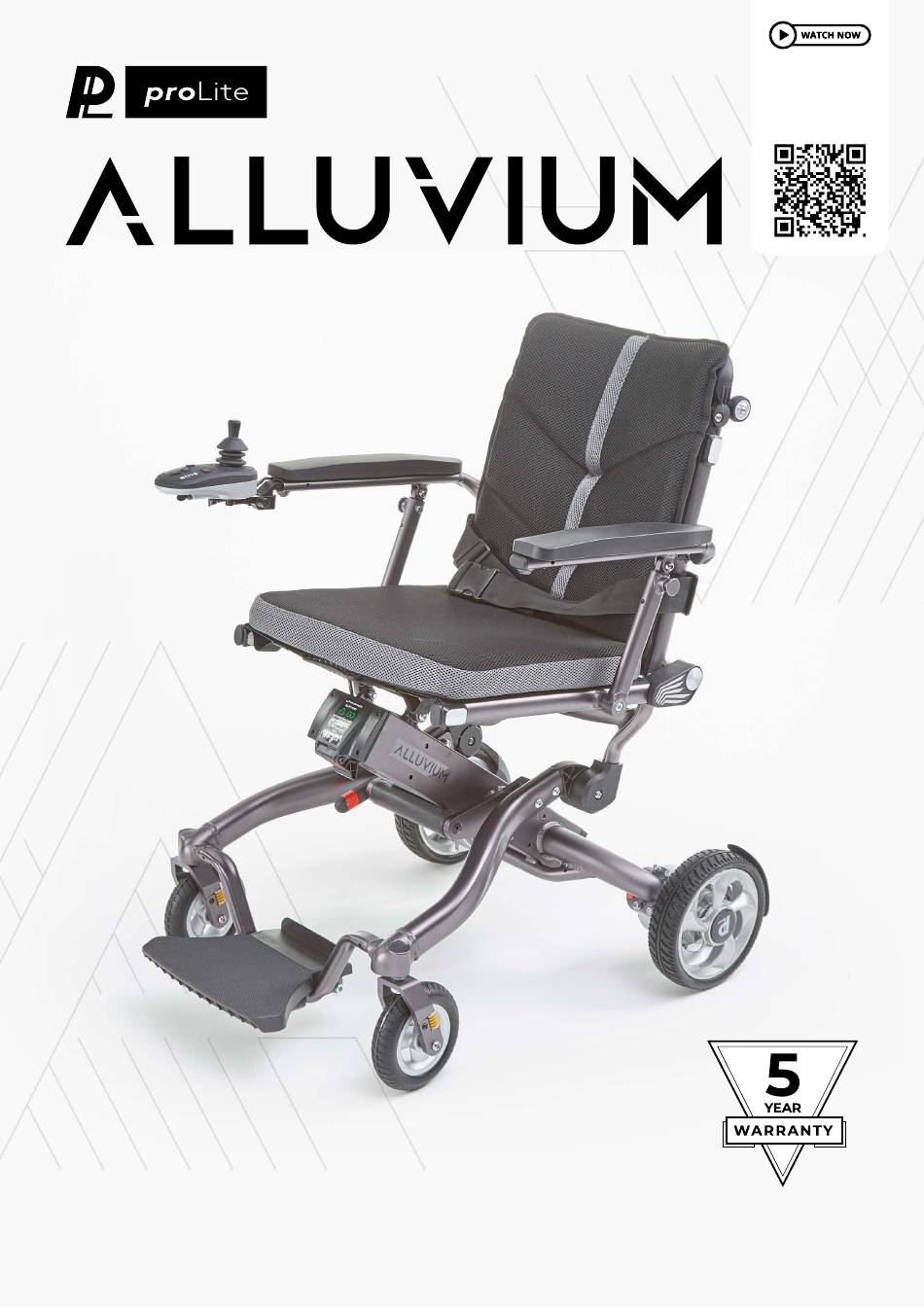

  • Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL PC02010004 PRODUCT CODE:...
  • Page 2 URL: www.careco.co.uk INTRODUCING YOUR NEW PROLITE ALLUVIUM POWERCHAIR The ProLite Alluvium has been designed to provide a comfortable and safe solution for users who have difficulty in walking for extended periods of time. Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice.
  • Page 3 FIRST USE Take the time to understand the powerchair’s stopping duration, turning radius, joystick sensitivity and manoeuvrability. We recommend practicing using the powerchair in an open area until confident enough to operate in smaller and/or public areas. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo.

  • Page 4: Table Of Contents

    PC02010004 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR POWERCHAIR HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS JOYSTICK CONTROLS ARMRESTS SAFETY BELT FOOTPLATE ANTI-TIP WHEELS POWERCHAIR MODES BATTERY INFORMATION INSTALLATION & REMOVAL BATTERY SPECIFICATIONS HOW TO CHARGE YOUR POWERCHAIR CHARGING VIA JOYSTICK CHARGING VIA BATTERY CHARGING REGIME...
  • Page 5 LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS TROUBLESHOOTING POWERCHAIR SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...

  • Page 6: Getting Started

    PRODUCT CODE GETTING STARTED CARTON CONTENTS ITEM NUMBER DESCRIPTION QUANTITY ProLite Alluvium Powerchair Joystick Battery Charger Contact CareCo immediately if any of the listed contents are missing. We strongly recommend that you keep the box and internal packaging for the...

  • Page 7: Product Components

    PRODUCT COMPONENTS Backrest Battery Footplate Armrest Button Rear Wheel Suspension Spring Joystick Front Wheel 10. Anti-Tip Wheel Seat Cushion...

  • Page 8: Setting Up Your Powerchair

    PC02010004 PRODUCT CODE SETTING UP YOUR POWERCHAIR 1. Remove all powerchair components from 2. Hold the under seat handle and tilt the the outer packaging and place them onto powerchair onto its roller wheels. a level surface. 3. Whilst in the tilted position, pull the 4.
  • Page 9 5. Lift the backrest upwards to unfold the 6. Pull the rear thumbscrew upwards to powerchair. unlock the anti-tip wheel. Repeat on the other side. 7. Place the joystick bracket onto the 8. Connect the joystick plugs together and armrest holder and secure using the secure using the thumbscrew.
  • Page 10 PC02010004 PRODUCT CODE 9. Insert the battery into the under seat 10. Charge the battery for 4-6 hours before frame holder. first use. An audible “click” will confirm the battery is secure.

  • Page 11: How To Use Your Powerchair

    HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS TRANSFERRING TO & FROM Always ensure the powerchair is switched [OFF] and in [DRIVE] mode before getting in/out of the powerchair. METHOD 1 TRANSFER TO Position your body as close to the powerchair as possible.
  • Page 12 PC02010004 PRODUCT CODE GRADIENTS Ascending Gradients Tilt your upper body forward when travelling up gradients for increased stability. Descending Gradients Tilt your upper body back when travelling down gradients for increased stability. The maximum safe slope of incline is 6°. THRESHOLDS &...
  • Page 13 STAIRS, ESCALATORS AND LIFTS The powerchair is not designed to travel up/down stairs and escalators. Use a lift whenever possible. DOORS & GATES Determine whenever the door/gate opens towards or away from the user. Reach for the handle and carefully accelerate forwards or backwards depending on the door/gate orientation.

  • Page 14: Joystick Controls

    PC02010004 PRODUCT CODE JOYSTICK CONTROLS Speed Settings 0-6km/h 0-5.5km/h 0-5km/h 0-4.5km/h 0-4km/h SPEED INDICATOR SPEED INCREASE BUTTON HORN Displays the powerchair’s Push to increase the Push to sound the horn. speed setting. powerchair’s speed setting. SPEED DECREASE BUTTON ON/OFF BUTTON BATTERY GAUGE Push to decrease the Push to activate or deactivate...

  • Page 15: Safety Belt

    JOYSTICK CHARGING SOCKET Insert the charger to charge the powerchair’s battery. ARMRESTS 1. Press the armrest button to unlock the armrest. 2. Lift or lower the armrest. 3. Release the armrest button to secure the position. Repeat on the other side. SAFETY BELT FASTENING Insert the male buckle into the female buckle.

  • Page 16: Footplate

    PC02010004 PRODUCT CODE FOOTPLATE LIFTING Fold the footplate upwards to assist the user when leaving the powerchair and when folding the powerchair. LOWERING Fold the footplate downwards to aid the user when using in the powerchair. WARNING! Do not stand on the footrest at any time. ANTI-TIP WHEELS 1.

  • Page 17: Powerchair Modes

    POWERCHAIR MODES DRIVE MODE (ELECTRONIC ASSISTED BRAKING) Push the red lever(s) backwards to engage Drive Mode. (The powerchair will not be able to be pushed manually). FREEWHEEL MODE Pull the red lever(s) forwards to engage the Freewheel Mode. (The powerchair will be able to be pushed manually).

  • Page 18: Battery Information

    PC02010004 PRODUCT CODE BATTERY INFORMATION ATTACHING REMOVING Insert the battery into the under seat frame Lift the locking clip whilst pulling the battery holder. upwards. An audible “click” will confirm the battery is The battery will release from the under seat secure.

  • Page 19: How To Charge Your Powerchair

    HOW TO CHARGE YOUR POWERCHAIR CHARGING VIA JOYSTICK 1. Connect the charger’s 3-pin output to the socket on the underside of the joystick. 2. Connect the outlet plug to a wall socket. 3. Switch [ON] the wall socket. 4. Charge for 4-6 hours. When charging is completed, remove the charger from the joystick socket and remove the plug from the wall outlet.

  • Page 20: Charging Regime

    PC02010004 PRODUCT CODE CHARGING REGIME Maintaining good charging habits for your powerchair will maximize battery life and range per charge. Battery charging times range from 4-6 hours. This is dependent on powerchair usage, ambient temperature, and operating habits etc. Daily Use If the powerchair is used daily, charge the battery at the end of each day for 4-6 hours.

  • Page 21: Folding Your Powerchair, Transportation & Storage

    FOLDING YOUR POWERCHAIR, TRANSPORTATION AND STORAGE FOLDING INSTRUCTIONS The powerchair can be folded for transportation and storage. Ensure the powerchair is switched [OFF] and in [DRIVE] Mode. 1. Pull the folding cable and pull the 2. Fold down the powerchair into the backrest downwards.

  • Page 22: Transportation

    PC02010004 PRODUCT CODE TRANSPORTATION TROLLEY TRANSPORT Fold the powerchair following the instructions found in this user manual. Tilt the powerchair onto its roller wheels and pull along using the under seat handle. LAND TRANSPORT When transporting the powerchair, securely stow the disassembled components in the boot of a vehicle.
  • Page 23 LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS • Ensure the powerchair is in [DRIVE] mode before setting off. • Ensure the powerchair is switched [OFF] before getting in or out. • Check tyres for wear. • Check all fixings are secure. CLEANING Regular use of the product will accumulate dirt and debris over time.
  • Page 24 PC02010004 PRODUCT CODE MAINTENANCE SCHEDULE Carry out regular inspections to keep the powerchair in optimum condition. COMPONENT INSPECTION DESCRIPTION AT ANY TIME WEEKLY MONTHLY QUARTERLY JOYSTICK Ensure the joystick controls CONTROLS function as intended. Ensure the powerchair moves DRIVE/BRAKE normally and the brake is SYSTEM responsive Ensure the powerchair...
  • Page 25 TROUBLESHOOTING The powerchair features an automatic fault warning function. If there is an internal issue with the powerchair, the battery indicator will flash, and the horn will sound. LED SEQUENCE POSSIBLE CAUSE POSSIBLE REMEDY LED1 LED2 LED3 LED4 LED5 LHS Motor Overheated Switch [OFF] powerchair for 10 minutes.
  • Page 26 PC02010004 PRODUCT CODE LED SEQUENCE POSSIBLE CAUSE POSSIBLE REMEDY LED1 LED2 LED3 LED4 LED5 1. Switch [OFF] powerchair RHS Motor Overcurrent 2. Wait for 60 seconds 3. Switch [ON] powerchair 1. Switch [OFF] powerchair RHS Brake in [FREEWHEEL] 2. Place the RHS brake in [DRIVE] mode mode.
  • Page 27 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) 820MM OVERALL WIDTH (MM) 620MM OVERALL HEIGHT (MM) 900MM FOLDED LENGTH (IF APPLICABLE) (MM) 800MM FOLDED WIDTH (IF APPLICABLE) (MM) 620MM FOLDED HEIGHT (IF APPLICABLE) (MM) 330MM FRONT WHEEL DIAMETER (IN) 6” REAR WHEEL DIAMETER (IN) 8”...
  • Page 28 PC02010004 PRODUCT CODE ELECTROMAGNETIC INTERFERENCE (EMI) Powerchairs and mobility scooters may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powerchair/mobility scooter to release its brakes, move by itself, or move in unintended directions.
  • Page 29 PRODUCT REISSUING Ensure the product is safe and functions as intended before re-issuing. RECYCLING & DISPOSAL Powerchair components should not be disposed of with normal household waste as they can cause harm to the environment. When disposing of the powerchair and/or its components, users should follow Waste Electrical and Electronic Equipment policies (W.E.E.E).
  • Page 30 PC02010004 PRODUCT CODE PRODUCT IDENTIFICATION The product identification label is located on the frame underneath the seat. LABEL DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical / electronic equipment must be disposed of in accordance with the WEEE regulation.
  • Page 31 GENERAL WARNINGS • Powerchair users should take appropriate safety measures and obey local pedestrian traffic rules. CareCo are not responsible for personal injury and/or product damage caused by improper use. • Use safety equipment such as reflectors, reflective clothing, and lighting when in low lit areas. •...
  • Page 32 PC02010004 PRODUCT CODE EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the powerchair is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime.
  • Page 33 WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • FRAME: 5-YEAR LIMITED WARRANTY • ELECTRONIC COMPONENTS: 1-YEAR LIMITED WARRANTY •...
  • Page 34 PC02010004 PRODUCT CODE NOTES...
  • Page 35 NOTES...
  • Page 36 056059 114323 POWERCHAIR...
