Wireless Bridge User Manual

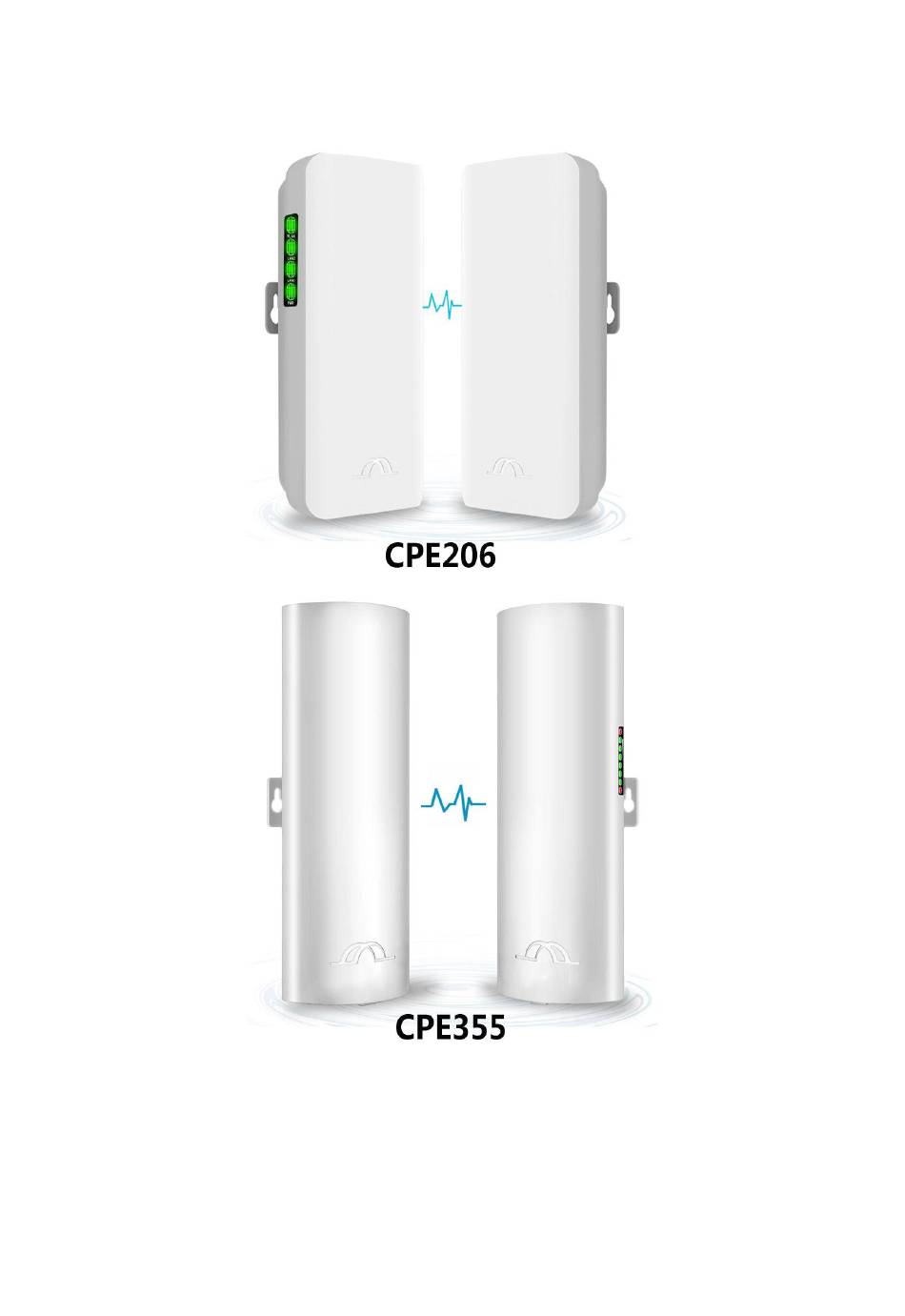

Model: CPE206 | CPE355
Thank you for purchasing our product. Please read the user manual carefully before use.
Any problems, please contact us in time.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CPE206 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soshine CPE206

  • Page 1 Wireless Bridge User Manual Model: CPE206 | CPE355 Thank you for purchasing our product. Please read the user manual carefully before use. Any problems, please contact us in time.
  • Page 2 1. Typical Application 1.1 Typical Application Our wireless bridges not only help you build remote monitoring systems, but also help you extend your network signal to warehouses, barns, garages and other buildings near your home. 1.2 Construction of Wireless Bridge System 1) Point to Point Connection: A.
  • Page 3 B. Point to point long range network extend C. Multiple network equipment long range access 2) Multiples Clients Connection...
  • Page 4 7) Support 24V POE power supply, convenient installation and deployment, simply construction, safe and reliable. 8) Wireless bridges can be repositioned and reused, flexible and cost effective. 3. Product Parameters Model CPE206 / CPE355 Master Control Ar9344 DRAM: DDR2 64MByte...
  • Page 5 You can switch to custom mode after you understand the network settings. 4.1 Product Overview The functions of CPE355 wireless bridge and CPE206 wireless bridge are basically the same. Their main difference is that the antenna gain and product wireless connection status indication are different.
  • Page 7 4.2 LED Indication & Function Chart: WLAN WLAN solid red light on indicates successful pairing, 4 grid green signal lights indicate the signal strength (Only 355) Link Pairing Indicator, Green LED Means Connected (Only 206) LAN1/LAN2 When the bridge data connection is successful, the LED light will turn on, otherwise it will be off.
  • Page 8 4.3 LED Number match to IP & SSID & Channel Chart: LED Value (A)Master Mode (B)Slave Mode Channel WiFi SSID Password 192.168.255.100 192.168.255.200 CPE5G_5G0 zllinkcpe1234560 192.168.255.101 192.168.255.201 CPE5G_5G165 zllinkcpe123456165 192.168.255.102 192.168.255.202 CPE5G_5G161 zllinkcpe123456161 192.168.255.103 192.168.255.203 CPE5G_5G157 zllinkcpe123456157 192.168.255.104 192.168.255.204 CPE5G_5G153 zllinkcpe123456153 192.168.255.105 192.168.255.205 CPE5G_5G149...
  • Page 9 4.4 Auto-Configure Wireless Bridges 4.4.1 Connect Wireless Bridge Master to POE Adapter 4.4.2 Connect Wireless Bridge Slave to POE Adapter 4.4.3 Pairing the Master and Slave Mode Pairing is simple enough by pressing the small button on the bottom of the unit then pressing the button on the other unit within 60s.
  • Page 10 a) Switch to “A” position, the device works on master mode, the Point LED is off; b) Switch to “B” position, the device works on slave mode, the Point LED is on. c) Connect the POE and plug the POE in AC power, wait patiently for them to power on, about 2 minutes.
  • Page 11 4.4.4 Wireless Bridges Auto-pairing and Debug Example 1. Unbox everything. 2. Switch one unit to A and the other unit to B. 3. Connect the POE to each unit using the Ethernet cable and plug the POE in. 4. Wait patiently for them to power on, about 2 minutes. 5.
  • Page 12 4.5 Install Wireless Bridge 1) Put the bridges front side face to face in the same direction (the bracket is not included.) 2) Connect the LAN port of the bridge to the POE port of the POE adapter. The POE adapter provides power and data transmission for the bridge.
  • Page 13 3) Check the wireless bridge mode switch is at “A” position or “B” position, reboot the bridge (it would take about 30s, please be patient with it). Check the numeric on the LED indicator of the wireless bridge, for example: the numeric is 8, and the mode switch of the wireless bridge is at “B”...
  • Page 14 Type “ncpa.cpl” into the Run box, and then hit Enter. In the “Network Connections” window, right-click the adapter, and then select the “Properties” command. In the properties window for the adapter, select “Internet Protocol Version 4 (TCP/IPv4)” and then click the “Properties” button.
  • Page 15 Select the “Use the following IP address” option, and then type in the IP address, subnet mask, and default gateway that corresponds with your network setup. Next, select the “Validate settings upon exit” option so that Windows immediately checks your new IP address and corresponding information to ensure that it works.
  • Page 16 Windows automatically runs network diagnostics to verify that the connection is good. If there are problems, Windows will give you the option of running the Network troubleshooting wizard. However, if you do run into trouble, the wizard likely won’t do you too much good. It’s better to check that your settings are valid and try again.
  • Page 17 Note: If enter the IP address, the screen does not display the login interface, please check the network cable connection, and make sure your computer's IP address must be 192.168.255.xxx. Enter the Username and Password, the default user name and password is "admin / admin", select language to “English”, click “Login”...
  • Page 18 2) Bridge Setting On the bridge setting menu, you can set the bridge parameters. DIP Switch Control: Check it to enable auto mode, press the "RST" button is functional, for the operation details please refer 4.2 LED Indication & Function Chart. Disable it, the "RST"...
  • Page 19 3) Access point and station (repeater) Access point and station (repeater) is reserved function 4) Status Click "Status" of the left menu, system will display the following interface: 5) Read SSID &Password When the "DIP Switch Control" is enabled, the bridge has pre-programmed the WiFi hot point name(SSID) and password, you can click "Setting"...
  • Page 21: Troubleshooting

    5. Troubleshooting Trouble Possible issue Solution steps 1. Wireless interference 1. Use WiFi analysis to choose the best 2. Distance is too long, or channel there are some walls 2. The two wireless bridges should not Packet between the bridges exceed transmitter distance, avoid the wall 3.
  • Page 22 5. No access to the wireless bridge from an computer; 6. The speed provided by the wireless bridge is very slow. Tech Service email: siling@soshine.com.cn Tips: 1. The installation of this device requires network knowledge, if you can’t install it, please contact us or ask a professional for help, if the product you receive is damaged or miss any accessories, please contact us for exchange or repair.
