PULSEEIGHT ProApm8 Quick Start Manual

QUICK START GUIDE
ProApm8 Amplifier (P8-PROAMP8)
CHECK WHAT'S INSIDE THE BOX
• 1x ProAmp8, 8-Zone Power Amplifier
• 1x IEC Power Cable (Region Specific)
IMPORTANT!
!
• Please read the instructions before attempting to install or operate this equipment.
• Visit the help.pulse-eight.com

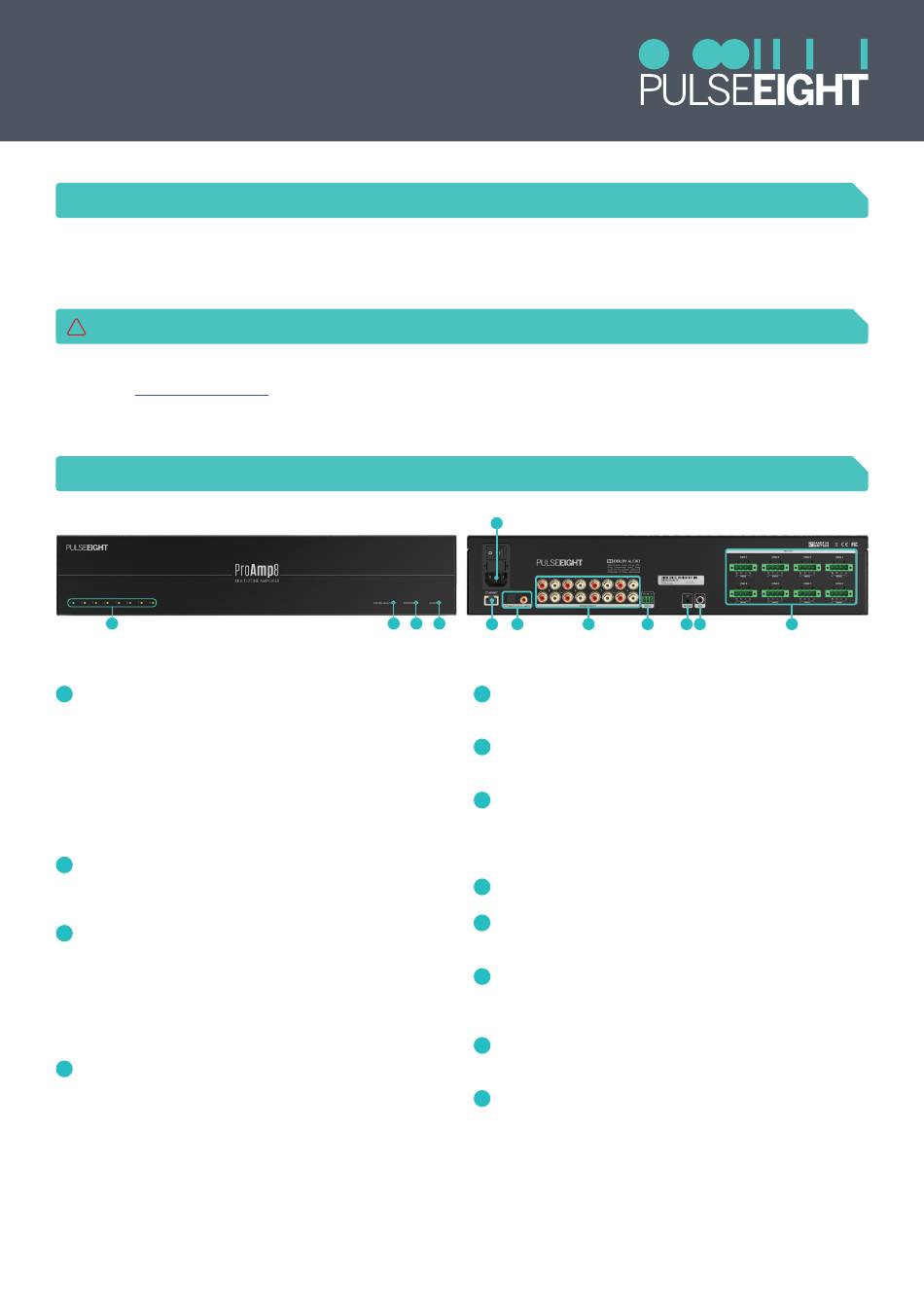

PANEL DESCRIPTIONS
A
A
Zone Status LEDs (1-8) - Indicate the state of operation
for each of the output zones.
• OFF: Zone is disabled/turned Off.
• GREEN: Zone is working and healthy (no audio
clipping).
• YELLOW: Zone is working but audio is close to
clipping.
• RED: Zone audio is clipping.
• RED (Flashing): Zone over heating
B System Health LED indicates matrix health.
RED - It is powering on or fault found.
GREEN - The system is healthy.
C Network LED indicates the matrix network connection.
RED - No network cable is connected.
AMBER (Flashing) - It discovers the IP address.
AMBER (Solid) - The network has the IP but cannot ping
the router.
GREEN (Flashing) - The network cannot reach the internet.
GREEN (Solid) - The network is healthy.
D
Cloud LED indicates the matrix connection to the Pulse-
Eight Cloud.
RED - It is not connected to the cloud.
GREEN - It is connected to the cloud.
• 8x Phoenix Speaker Connectors
• 1x Micro-Phoenix RS232 Connector
to download the latest product manual, additional documentation, and configuration tools.
B C D
E
F G H I
E
Power Connector: is used with the supplied power cord
to connect the power.
F
Ethernet: Port Ethernet option to connect to third party
control systems.
G
Digital Audio Input: Optical and Coax inputs supporting
multi-channel digital audio, including Dolby Digital 5.1.
The digital inputs support standard S/PDIF protocol (IEC
60958 type II).
H
Analogue Inputs: Connect analogue input source devices
I RS-232 Control Port: Micro phoenix connector can be
utilized for API control using ASCII commands (UART).
J 12V Trigger Port: Designed to turn on or perform its
function when it receives a signal with a voltage level of
12V.
K Active Subwoofer Output: Line-level subwoofer active
output. RCA style connector.
L
Speaker Zone Outputs: Phoenix connectors for speaker
wiring connections for each zone.

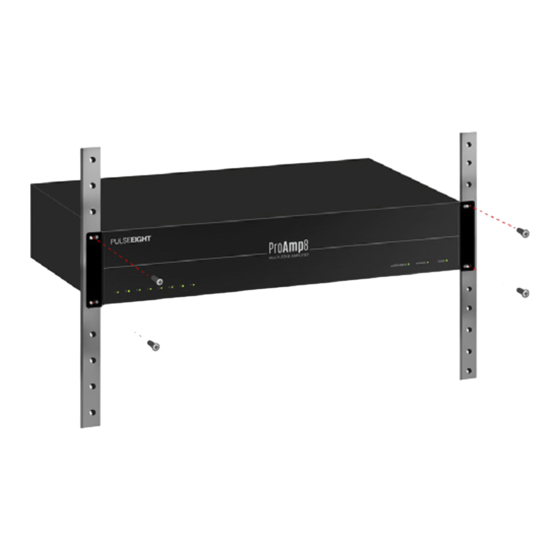

• 1x Rack Mounting Kit
• 1x Quick Start Guide
J
K L
