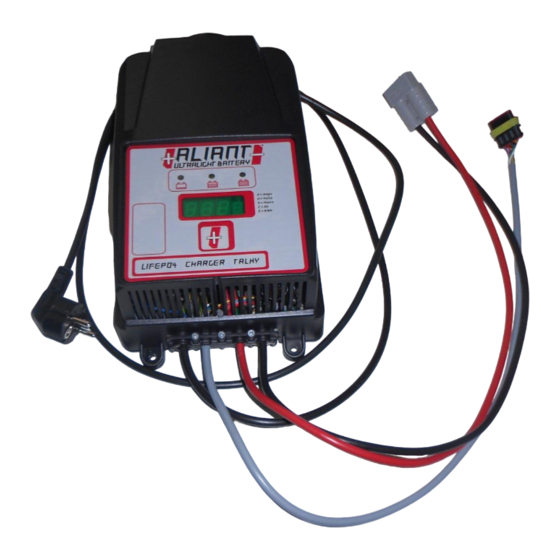

CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL CONTENUTO DELLA CONFEZIONE PACKAGE CONTENTS A) N° 1 carica batterie Aliant CB4820 HF TALKY A) N° 1 charger Aliant CB4820 HF TALKY provided equipaggiato con: with: a. N°1 cavo ROSSO “Terminale Positivo” a. N°1 RED cable “Positive Terminal” pre-wired pre-cablato con uscita libera (L = 2mt).
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL DISPLAY e PULSANTI DISPLAY AND BUTTONS 1) Il carica batterie presenta un apposito display, 1) The charger has dedicated display which shows per la visualizzazione dei parametri di carica the real time charging parameters:...
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL CHARGING OPERATIONS OPERAZIONI DI CARICA 1. Inserire la spina del cavo di 1. Plug the cord into a socket. alimentazione in una presa di 2. Connect the battery, checking the corrente. polarity. 2. Collegare la batteria rispettando la polarità.
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL ABBIGLIAMENTO E PRECAUZIONI CLOTHING AND WARNINGS D’USO Indossare sempre una visiera o occhiali di Always wear a face shield or safety glasses during the sicurezza quando durante le operazioni di carica della charging of the battery.
Page 8
Non COLLEGARE MAI simultaneously. Do not CONNECT more Aliant più batterie ALIANT EK in serie o parallelo tra batteries in series or parallel. loro. Non perforare o tagliare il case esterno del Do not puncture or cut the charger casing: risk carica batterie.
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL SPECIFICHE TECNICHE TECHNICAL SPECIFICATIONS Codice Articolo / Item Code 329000403 Tensione e frequenza di ingresso / USA / UK UNIVERSAL Voltage and frequency input from 100Vac to 100/120Vac 220/240Vac 240Vac 50/60Hz 50/60Hz from 50Hz to...
Page 10
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL Il segnale PWM di controllo opera modificando PWM digital signal to control the charger by il duty cycle come quanto segue: changing the duty cycle as written below: 0% – 10% No output 0% –...
Page 11
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL Segnalazione Errori Error Signals Fino a data: 14/06/2016 Up to date: 14/06/2016 Sovra corrente Over Current Sovra tensione Over Voltage Sovra temperatura Over Temperature Errore PWM PWM Error PROBLEMI SOLUZIONI PROBLEMS SOLUTIONS VERIFICHE...
Page 12
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL Segnalazione Errori Error Signals Valida a partire da data: 14/04/2016 Starting from date: 14/04/2106 Sovra corrente Over Current Sovra tensione Over Voltage Sovra temperatura Over Temperature Errore PWM PWM Error PROBLEMI SOLUZIONI PROBLEMS...
Page 13
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL YES BATT/YES PWM --> led as per dafault charging curve – the display show: “…..” Wirings: Cablaggi: BMS connection deals with: La connessione al BMS prevede i seguenti fili: COLOUR SIGNALS NOTES COLORE...
Pt = Pel * (1 – η) = 150Watt Contact Alian technical support in case of any doubt about installation Contattare l’assistenza tecnica Aliant in caso di dubbi sull’installazione Do not mount the charger inside closed cabinets. Always consider proper ventilation Non montare all’interno di vani chiusi.
Page 15
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL DISPLAY - INIZIALIZZAZIONE DISPLAY - STARTUP All’accensione del carica batterie, sul display Every power on cycle, the display sequentially verranno visualizzati in sequenza i seguenti shows the following parameters: parametri: firmware name nome del firmware...
Page 16
CB SERIES INSTALLATION AND MAINTENANCE USER MANUAL Aliant is a registered trademark by Elsa Solutions Designed and Engineered by ELSA Solutions srl Via Einaudi 9 40026 IMOLA (BO) – ITALY This product is of EU origin. Prodotto di origine UE.
