Summary of Contents for Skid Pro QASA530
- Page 1 QASA530 Tree Saw Operators Manual Skid Pro Attachments PO Box 982 Alexandria, MN 56308 www.skidpro.com December 2023 www.skidpro.com...
- Page 2 Following is a list of videos and documents available to help and enhance maintaining the tree saw. Contact Product Guru to access correct link. The list below was current at the time this manual was issued. Additional content may be available. Activity Name Description Skidsteer Case Drain Back-Pressure...
-
Page 3: Table Of Contents
Contents 1. Introduction And Warranty ..................4 1.1 Introduction ........................4 1.2 Warranty ........................4 2. Component Identification .....................5 3. Safety ..........................6 3.1 Safety Alert Symbol And Signal Words ..............6 3.2 Operational Hazards ....................6 3.2.1 Prepare For Emergencies................7 3.2.2 Replace Safety Signs ..................7 3.2.3 Do Not Allow Riders ..................7 3.2.4 Lower Operating Speed ..................7 3.2.5 Avoid Rollover ....................7... -
Page 4: Introduction And Warranty
Operator’s Manual. cost of a service call. Used equipment. This manual covers the QASA530 Skid Pro Tree Saw. Components covered by their own non-Skid Pro warranties Keep this manual with the equipment for frequent Normal maintenance service and expendable wear reference and to pass on to new operators or owners. -
Page 5: Component Identification

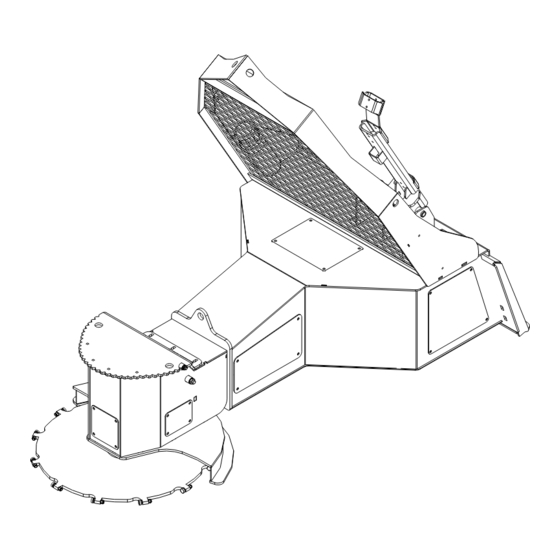

2. Component Identification Blade Cutting Teeth Hydraulic Motor Angled Push Bar Protective Mesh Operators Manual Tube Quick Attach Hydraulic Hose Holder Blade Guard Lifting Eye Front Push Bar Cutting Head Rotation Motor Zero Leak Relief Valve www.skidpro.com... -
Page 6: Safety
3. Safety 3.2 Operational Hazards 3.1 Safety Alert Symbol And Signal WARNING Words Prevent serious injury or death. You must read, understand and follow the instructions Read and understand this manual before given by the operating unit manufacturers, as well as operating tree saw. -
Page 7: Prepare For Emergencies
If you do not understand any part of this manual, Use caution when operating on slopes and do not • contact Skid Pro at 866-232-8224. operate on excessively steep slopes. 3.2.1 Prepare For Emergencies Do not exceed load capacity of equipment. -
Page 8: Avoid Power Lines & Underground Utilities
3.2.7 Avoid Power Lines & Underground 3.2.10 Raised Attachment Utilities WARNING DANGER DANGER Crushing hazard. Prevent electrocution. Raised, unsupported tree saw can fall, Death or serious injury can result if resulting in death or serious injury. equipment comes near or contacts power lines. -
Page 9: Maintenance Hazards
“Do Not Operate” tag on control panel. Read and Hot and high pressure hydraulic oil. understand this manual. If you do not understand any part of the manual, contact Skid Pro at 866-232-8224. Allow oil to cool before servicing. Always wear face and/or eye protection, safety shoes, and other protective equipment appropriate for the job. -
Page 10: Safety Warning Labels
3.5 Safety Warning Labels Decal A - MTB-177 WARNING To protect you and others against death or serious injury, all labels shown must be on tree saw and must be legible. If any of these labels are missing or cannot be read, contact your dealer for replacement labels. - Page 11 Decal F - MTB-175 Decal C - MTB-065 MTB-065 Decal D - MTB-182 Decal E - D005262 WARNING: This product can expose you to chemicals including 1,3-Butadiene and lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm.
-
Page 12: Initial Setup
4. Initial Setup WARNING 4.1 Hydraulics Always turn off the skid steer and disengage hydraulic drive before getting WARNING off the seat and approaching the blade. Pressurized fluids can penetrate the skin. Disconnect and lock out power source WARNING before disconnecting and/or connecting hydraulic hoses. -
Page 13: Operation
5. Operation 5.2 Attach and Detach Tree Saw WARNING Keep bystanders, livestock, pets, etc away from To prevent injury or machine damage put equipment while in use. transmission in park. Always wear face or eye protection, safety shoes, and other protective equipment appropriate for Never position yourself between skid steer the job. -
Page 14: Field Operation
5.4 Field Operation Attach tree saw to skid steer. See Attach and Detach Tree Saw. Operate all functions in an open area with skid steer in idle to get a good feel for the controls. WARNING Prevent serious injury or death. WARNING Prevent serious injury or death. -
Page 15: Pressure Relief Adjustment
5.5 Pressure Relief Adjustment WARNING Prevent serious injury or death caused by unexpected movement. Park machine on firm, level surface. Lower tree saw to the ground Engage parking brake. Shut off engine and remove key. Park on a level surface. Lower tree saw to the ground. -
Page 16: Routine Maintenance
WARNING slotted frame. Replace worn or damaged hoses. Prevent serious injury or death. Skid Pro has included one replacement set of internal motor hoses with the tree saw. These hoses were Park machine on firm, level surface. placed inside the body of the tree saw. -
Page 17: Rotate Cutting Teeth
Install locknut. Tighten locknut (A) to 65 lb/ft (88 6. Tighten locknut (A) to 65 lb/ Nm) of torque. ft (88 Nm) of torque. Note: Parts breakdown can be found on Skid Pro's website. www.skidpro.com WARNING Note: Parts breakdown can be found on Skid Pro’s Moving parts can crush and cut. -
Page 18: Motor Shaft Seal
Order replacement seal kit from Skid Pro and follow instructions provided with kit. Motor Shaft Seal Replacement manual can be found at www.skidpro.com... -
Page 19: Troubleshooting
7. Troubleshooting PROBLEM CHECK SOLUTION Blade does not spin. Blade jammed. Remove material from blade. Low oil level. Check oil level. Add if necessary. Low oil flow. Check flow control on skidsteer. See your dealer. Low pressure. Check valve open. Blade rotates slow or sluggish. - Page 20 Skid Pro Attachments PO Box 982 Alexandria, MN 56308 www.skidpro.com December 2023 www.skidpro.com...
