Summary of Contents for TZUMI ionVac SmartClean robovac v4
-
Page 2: Table Of Contents
Upgrading Firmware Installing Side Brushes Power and Charging Specifications How to Use the SmartClean Troubleshooting Cleaning/Pause Battery and Charging Charging Customer Support Automatic Cleaning Spot/Local Cleaning Edge Cleaning Scheduled Cleaning Using the tzumi Smart Home App Connecting to the App... - Page 4 Its slim frame quietly utilizes a super-efficient, 3-stage cleaning system that has four modes and can be operated via remote or the tzumi Smart Home app, compatible with Alexa and Google Assistant.
- Page 5 What’s in the box? Vacuum unit 5. Remote control 2. Integrated charging 6. Left / Right Side Brushes x2 and auto-emptying dock HEPA Filter Dustbin and water tank 4. Cleaning Brush Vacuum Unit Integrated Charger Dustbin and and Auto-Emptying Dock Water Tank Cleaning Brush Remote Control...
-
Page 6: Important Safeguards
• Do not use a damp cloth or any liquid to wipe any part of the vacuum. • Please follow the instructions in this manual when using the vacuum. tzumi is not liable for any loss and injury caused by improper use. -
Page 8: Smartclean Diagram

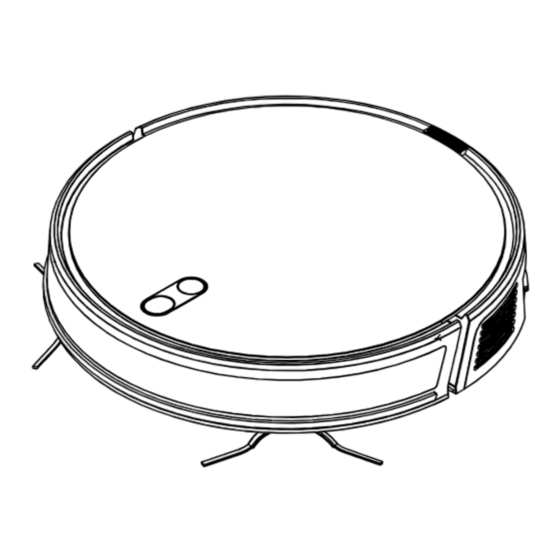

SmartClean robovac Diagram Main Unit... -
Page 9: Sensors And Structure
Sensors and Structure Charging Contacts Bumper Cliff Sensors Side Brush Omni-Directional Wheel Driving Wheel Rolling Brush Suction Inlet Dustbin... -
Page 10: Charging Dock
Integrated Charging Dock Dust Collecting Dock Cover Indicator Light Charging Nodes Dust Collecting Inlet... -
Page 11: Remote Control
Remote Control Mute Suction Return/Recharge Start/Stop Control Direction Spot Cleaning Edge Cleaning Local Mode Random Mode Automatic Cleaning... -
Page 12: The Smartclean Experience
• The SmartClean does it all and does it well. It’s the intelligent vacuum for the masses – rather than the classes! • High-tech, yet elegant controls via remote, tzumi Smart Home app, or Amazon Alexa/Google Assistant give you the power to clean when and where you want. -
Page 13: Precautions
Precautions Before use, please read this instruction manual carefully. Before using the SmartClean, pick up objects from the floor like clothing or loose papers. You should also ensure that the floor is free of fragile objects and power cords. The SmartClean cannot be used to If the room to be cleaned contains a clean up liquids. -
Page 14: Installation Of The Smartclean
Installation of the SmartClean robova Place the charging dock on a level surface and against a wall; connect to the power supply. 3 ft 3 ft 6 ft 3 ft Note: 3 ft Place the Integrated Charging Dock against a wall and make sure it is an open and 6 ft uncluttered area leaving at least: - 6 ft. -
Page 15: Installing Side Brushes
Installing side brushes Attach the side brushes to the bottom of the SmartClean by pressing the brushes into the slots above the letters L and R until you hear a “click”. Powering on and charging Press and hold the button for 3 seconds or place the SmartClean in the Integrated Charging Dock, making sure the metal charging nodes match up with those on the back of the SmartClean. -
Page 16: How To Use The Smartclean
Once the SmartClean is powered on, press the button on the vacuum, the AUTO button on the remote, or the tzumi Smart Home app to start cleaning. Note: • The SmartClean does not clean liquids. Be sure the area you wish to clean is free of liquids before beginning a cleaning process. -
Page 17: Automatic Cleaning
For local cleaning the vacuum will clean an area of about 4 sq. ft. in a zigzag formation. Press the button on the remote or the tzumi Smart Home app to start a spot or local clean cycle. Spot Clean... -
Page 18: Edge Cleaning
For edge cleaning, the vacuum will clean the edges of the room. Once cleaning finishes along all sides, it returns to the charging dock. Press the button on the controller or use the tzumi Smart Home app to start an edge cleaning cycle. Random Mode Note: Some dark carpets may interfere with the vacuum smart sensors. - Page 19 The SmartClean needs to have already been attached to the charging base to ensure it has enough power to use. Download the tzumi Smart Home app from the App Store or Google Play store. Open the app and create a user account.
- Page 20 Maintenance & Care Roller Brush Weekly recommended cleaning Flip the vacuum over; press the buckle on the roller brush cover then remove the roller brush cover and the roller brush. Use the cleaning brush to remove any dirt in the main brush and the roller brush cavity then clean anything entangled on the roller brush.
- Page 21 Side brushes Weekly recommended cleaning Flip the vacuum over and pull out the side brushes vertically. Remove any entangled hair and dirt then reinstall the side brushes. Align the left side brush (L) and right side brush (R) with the letters L and R and press the side brushes to reinstall them.
- Page 22 Dustbin and Filter Weekly recommended cleaning Press the button on the back of the dustbin and pull to release. Open the dustbin and empty it out. When cleaning the dustbin, be sure to remove the HEPA filter. Wash the dustbin thoroughly with water (it is not recommended to clean the HEPA filter with water.).
- Page 23 Emptying the Auto-Empty Charging Base The SmartClean will automatically empty its dust bin into the charging base whenever it docks. When the dust bag inside the dock is full, a red light will blink on the dock. Open the dock cover, remove and replace the dust bag with a new one. A white light indicator will indicate the new bag is correctly installed and ready to use.
- Page 24 Cleaning the Cliff Sensors Monthly recommended cleaning Cleaning the Charging Contacts Monthly recommended cleaning Battery • The vacuum is equipped with a high-performance rechargeable lithium-ion battery pack. To maintain battery performance, keep the vacuum connected to the Integrated Charging Dock in between uses. •...
- Page 25 SPECIFICATIONS Main Unit Dimensions 13.8” x 13.8” x 3.1” (350 x 350 x 79mm) Battery 2600 mAH Rechargeable Lithium-ion Battery Rated Voltage 14.4V Rated Power Charging Time 5 hours Dust Box Capacity 300ml Water Tank Capacity 250ml Docking Station Dimensions 10.8”...
- Page 26 Troubleshooting Problems Solutions Vacuum will not • The battery power is insufficient. Please place turn on the vacuum on the docking station, and align with the charging electrodes. The vacuum will automatically power on. • The room temperature is below 32°F or above 104°F.
-
Page 27: Scheduled Cleaning
Troubleshooting Problems Solutions The cleaning • The dust box is full. Clean the dust box. performance • The filter is blocked. Clean or replace the filter. is degraded, or • The roller brush is entangled with foreign objects. dust is dropped Clean the roller brush. - Page 28 Troubleshooting Problems Solutions Error: Reinstall the • Insert dustbin before starting. dust box and start again. • Please put vacuum back on the floor and Error: The vacuum is off the start again. ground. Please put it on the ground and start again.
- Page 29 Troubleshooting Problems Solutions Error: The • Please move the vacuum to an open space vacuum cleaner before starting. is blocked. • The wheels may be stuck or entangled with Error: Please check whether foreign objects. Please check the wheels and/or the wheels are remove any foreign objects.
- Page 31 • If the batteries are leaking or swollen, stop the SmartClean robovac v4 immediately and contact customer service. Customer Support If you have any questions or need support setting up or using your SmartClean, email us at support@tzumi.com or call 1-855-GO-TZUMI.
- Page 32 For more details on the ionVac family of products or to view more home and phone innovations visit ionvacs.com live awesome.
Need help?
Do you have a question about the ionVac SmartClean robovac v4 and is the answer not in the manual?
Questions and answers

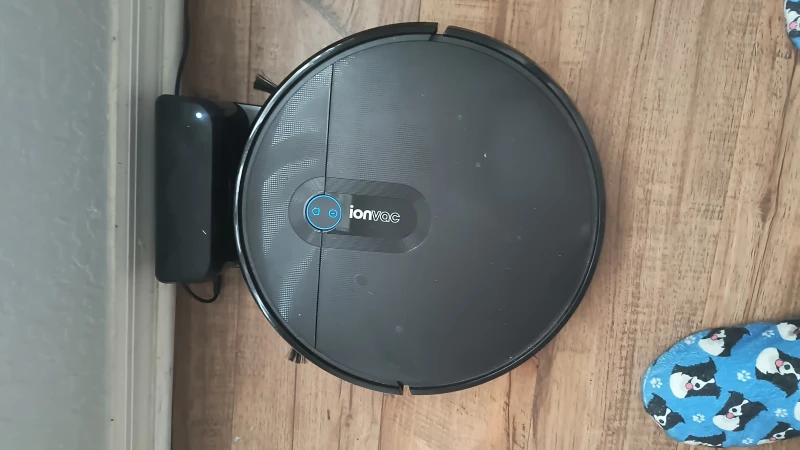

Vac lights up blue so it's charged but it doesn't turn on
