Summary of Contents for Sharp YC-GC52FU-B

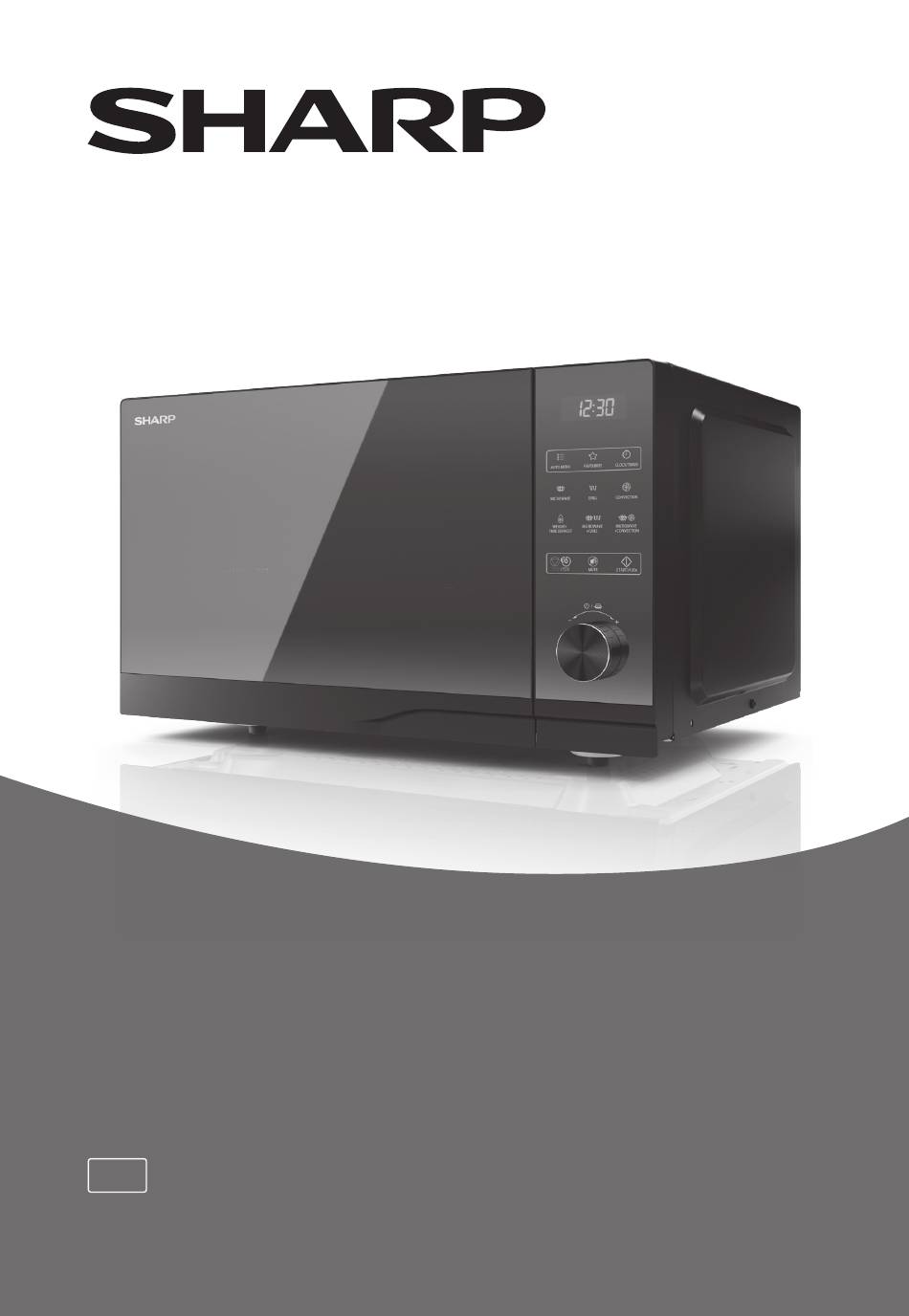

- Page 1 User manual YC-GC52FU-B Microwave oven *Product images are for illustration purpose only. Actual product may vary.
- Page 2 Need help with your microwave oven? Please contact the UK & ROI Helpline* Telephone UK 0330 024 0803 or ROI 01443 3323 Online support at: www.sharpconsumer.eu Email support at: service.gb@sharpconsumer.eu (UK) service.ie@sharpconsumer.eu (IE) * Calls to 0330 numbers are charged at standard call rates and are included as part of any bundled minutes with your phone provider.
- Page 3 1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling.
-
Page 4: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. 2. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE To avoid the danger of fi re. The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fi re. - Page 6 Utensils should be checked to ensure that they are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. Clean the waveguide cover and the oven cavity. These must be dry and free from grease.
- Page 7 To avoid the possibility of injury. WARNING: Do not operate the oven if it is damaged or malfunctioning. Check the following before use: a) Make sure the door closes properly and ensure it is not misaligned or warped. b) Check to make sure the hinges and safety door latches are not broken or loose.
- Page 8 Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent. If the power supply cord of this appliance is damaged, it must be replaced with a special cord.
- Page 9 The exchange must be made by an authorised SHARP service agent. To avoid the possibility of explosion and sudden boiling: WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
- Page 10 the end of cooking time to prevent delayed eruptive boiling. Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode.
- Page 11 the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening it to avoid burns from escaping steam and heat. Slice stuff ed baked foods after heating to release steam and avoid burns. Keep children away from the door to prevent them burning themselves.
- Page 12 with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings - paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot. Other warnings Never modify the oven in any way.
- Page 13 To prevent the base of the oven breaking: a) Before cleaning the oven base with water, leave the fl at-bed to cool. b) Do not put hot foods or hot utensils on a cold oven base. c) Do not put cold foods or cold utensils on a hot oven base.
-
Page 14: Installation
INSTALLATION 1. Remove all packing materials from the inside of the oven cavity and remove any protective fi lm found on the microwave oven cabinet surface. 2. Check the oven carefully for any signs of damage. 3. Place the oven on a secure, level surface, strong enough to take the oven weight, plus the heaviest item likely to be cooked in the oven. - Page 15 30 cm 0 cm 20 cm 20 cm 85 cm 5. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet. WARNING: Do not place the oven where heat, moisture or high humidity are generated, (for example, near or above a conventional oven) or near combustible materials (for example, curtains).
-
Page 16: Specifications
SPECIFICATIONS Model name YC-GC52FU-B AC Line Voltage 230-240V/50 Hz single phase Distribution line fuse/circuit breaker 10 A AC Power required 1400 W Output power: Microwave 900 W Grill 1200 W Convection 2050 W Standby < 1,0 W Energy Save Mode <... -
Page 17: Oven And Accessories
OVEN AND ACCESSORIES 1. Door Safety Lock System 2. Oven Window 3. Cavity Base Plate 4. Control Panel 5. Grill Heater 6. Grill Rack 7. Baking Tray 8. Ventilation openings 9. Outer cabinet 10. Power supply cord 11. Opening handle EN –... -
Page 18: Control Panel
CONTROL PANEL 1. DISPLAY - Cooking time, power, indicators and clock time are displayed. 2. AUTO MENU - Press to select auto cooking menu. 3. FAVOURITE - Use to store programs. 4. CLOCK/TIMER - Use to set clock time. Use to set timer function. 5. -
Page 19: Before Operation
BEFORE OPERATION • When the oven fi rst plugged in, a beep will sound and the display will show "1:01". • While in the set up mode and no buttons are pressed for 30 seconds, the unit will enter the standby mode. •... -
Page 20: Microwave+Grill
MICROWAVE+GRILL Combination 1: 30% time for microwave cooking, 70% for grill cooking. Use for fi sh or au gratin. Combination 2: 55% time for microwave cooking, 45% for grill cooking. Use for puddings, omelettes, baked potatoes and poultry. 1. In standby mode, press MICROWAVE+GRILL button once or twice to select "Co-1" or "Co-2". 2. -
Page 21: Time Defrost
TIME DEFROST 1. In standby mode, press WEIGHT/TIME DEFROST button twice. 2. Turn TIME/WEIGHT knob to set defrosting time. The longest time is 95 minutes. 3. Press START/+30s button to confi rm. NOTE: When using the Time Defrost function, the microwave will cook at 40% power, then at 30% power at which point it will stop to allow the door to be opened and the food turned over. -
Page 22: Child Lock
CHILD LOCK 1. To set the CHILD LOCK, press and hold the MUTE key for 3 seconds, a long beep will be heard and the display will indicate “LOC”. The oven is now in the CHILD LOCK mode. While in this mode, the display will show the clock, if any key is pressed or the door is opened, “LOC”... -
Page 23: Cleaning And Care
CLEANING AND CARE 1. Turn off the oven and unplug the power cord from the wall when cleaning. 2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. -
Page 24: Suitable Ovenware
SUITABLE OVENWARE To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety of cookware can be used as listed below. -
Page 25: Microwave Cooking Advice
WARNING: Follow instructions in the SHARP operation manual at all times. If you exceed recommended cooking times and use power levels that are too high, food may overheat, burn and, in extreme circumstances, catch fi re and damage the oven. - Page 26 Food Characteristics Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fi re. Bones in food conduct heat, making the food cook more quickly. Care must be taken so that the food is cooked evenly.
-
Page 27: Defrosting Advice
DEFROSTING ADVICE Using your microwave oven is the quickest defrosting method. It is a simple process but the following instructions are essential to ensure the food is thoroughly defrosted. • Remove all packaging and wrapping before defrosting. • To defrost food, use microwave power levels 30P or 10P. •... -
Page 28: Reheating Advice
REHEATING ADVICE For the reheating of foods, follow the advice and guidelines below to ensure food is thoroughly reheated before serving. Plated meals Remove any poultry or meat portions, reheat these separately, see below. Place smaller items of food to the centre of the plate, larger and thicker foods to the edge. Cover with vented microwave cling fi lm and reheat on 50P, stir/rearrange halfway through reheating. -
Page 29: Troubleshooting
WARNING: Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a SHARP trained engineer to carry out servicing or repairs. This is important as it may involve the removal of covers that provide protection against microwave energy. -
Page 30: Radio Interference
• Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave will not operate. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE SHARP HELPLINE. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF. - Page 32 Sharp Consumer Electronics Poland sp. z o.o. Ostaszewo 57B, 87-148 Łysomice, Poland SHARP CORPORATION 1 Takumi-cho, Sakai-ku Sakai City, Osaka 590-8522, Japan SDA/MAN/0119 www.sharpconsumer.eu...
