INSTALLATION & OPERATING INSTRUCTIONS
IF YOU CAN NOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS, DO NOT ATTEMPT TO INSTALL OR OPERATE.
INTRODUCTION
This Durablow remote control system is to provide a safe and reliable control for gas heating appliances, such as fire
fireplace. The system can be operated manually from the transmitter (remote handset). The system operates on radio
frequencies (RF) within a 20-foot range and non-directional signals. The remote receiver box code must be matched
to the transmitter prior to initial use (see
Read ALL sections and original manufacturer manual for safety installation before any action. These safety features shut
down the system and appliance, such as fireplace when a potentially unsafe condition exists, such as high-heat.
PACKING LIST :

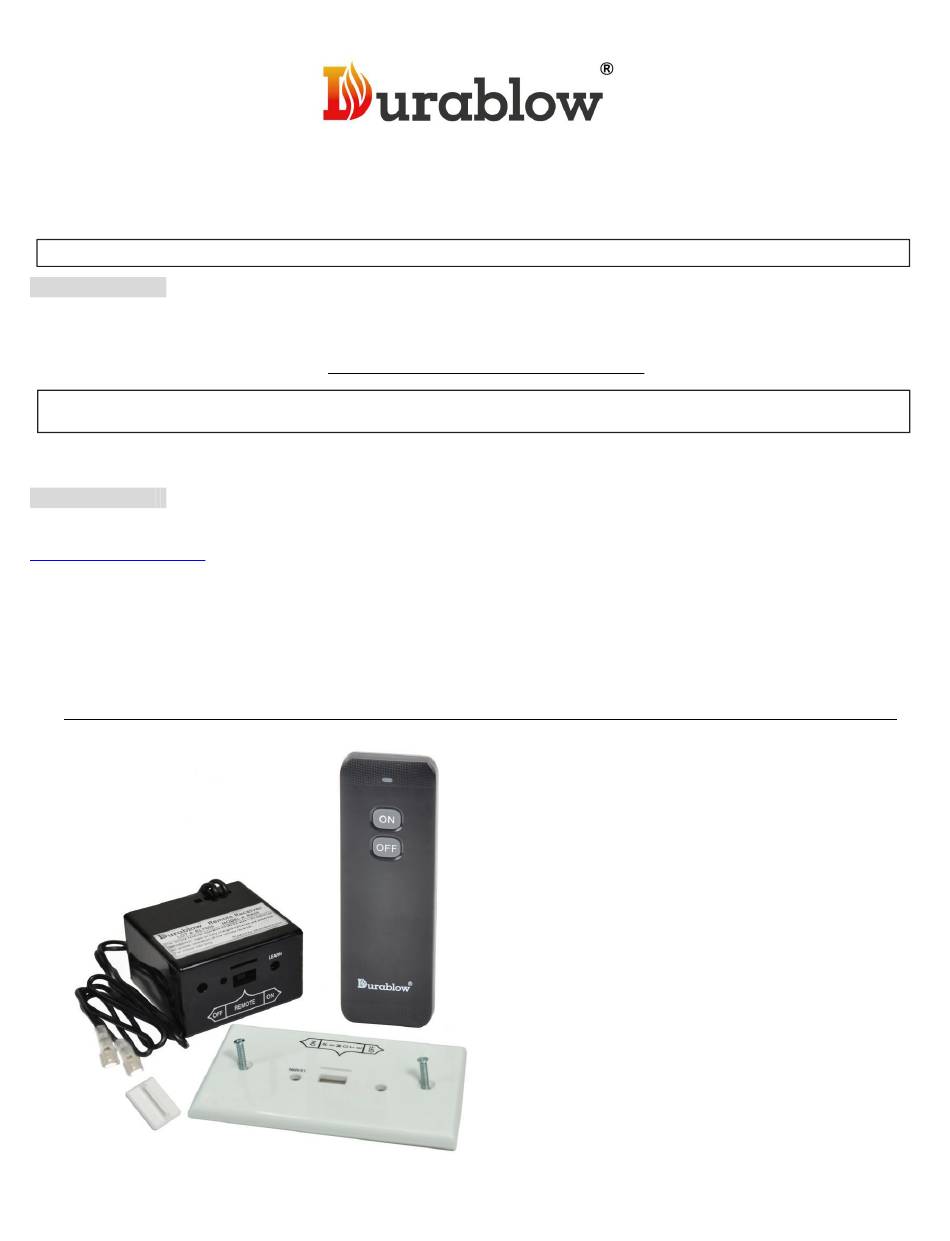

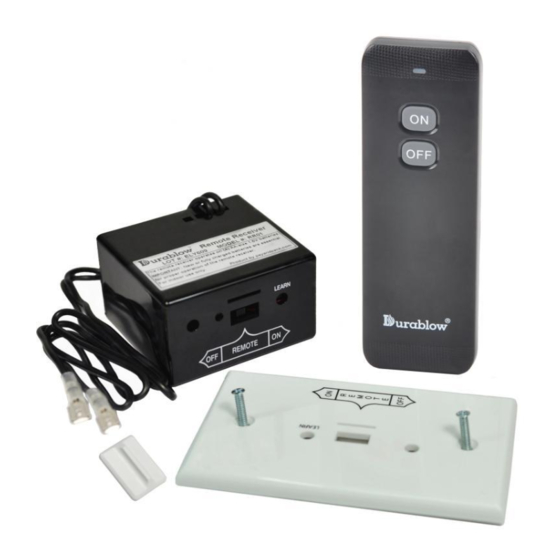

Please check (Fig. 1) and make sure all parts are in good condition before installation. Any questions, please email us
(info@payandpack.com)
Thank you.
1. 2-botton remote transmitter (1), Remote receiver box w/ 18" wire (1)
2. Wall mount cover plate (1),
3. Installation Instructions (1)
( Model: TR1001 ; Transmitter: T1001 + Receiver: RR02)
LEARNING TRANSMITTER TO
immediately before returning items or further actions, we will do our best to solve problems.
Switch box
screw (2), Slide switch button (1)
RECEIVER).
Fig. 1
TR1001
Version20220906 Page 1
Advertisement
Table of Contents
Summary of Contents for Durablow TR1001
- Page 1 IF YOU CAN NOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS, DO NOT ATTEMPT TO INSTALL OR OPERATE. INTRODUCTION This Durablow remote control system is to provide a safe and reliable control for gas heating appliances, such as fire fireplace. The system can be operated manually from the transmitter (remote handset). The system operates on radio frequencies (RF) within a 20-foot range and non-directional signals.
- Page 2 (+) and (-) ends of the batteries as indicated on the casing. The TR1001 equips a 2-botton remote transmitter handset. Please press the button on transmitter firmly and slowly to allow the receiver box to decode the ON / OFF signal for proper program execution. The time interval between pressing ON and OFF should be at least 3 seconds.
-
Page 3: Pre-Installation
installation, and follow them during installation carefully. Any modifications of Durablow remote control system, or parts, or components are PROHIBITED. They will void the warranty, and may cause a fire hazard result in human casualties and property damages. -
Page 4: Wall Mount
Fig. 6 Fig. 7 Fig. 8 WALL MOUNT Install four AA-size 1.5V batteries into the remote receiver box (Fig 3). The system operates well with all batteries’ total output voltage is greater than 5.2V. Generally, four NEW AA-size batteries should output voltage of 6.0 to 6.2 volts if installed in series. - Page 5 WIRING MILLIVOLT VALVE (Fig. 9) Connect the two 18 gauge stranded or solid wires of the Remote receiver box to the Millivolt gas valve at the TH & TH/TP terminals on the terminal block. It does not matter which wire go to which terminal. The remote receiver box‘s operation is similar to a thermostat that also turn the gas valve ON and OFF based on the input signals from TH &...
- Page 6 WIRING DEXEN or S.I.T ELECTRONIC IPI PILOT IGNITION CONTROL MODULE Find the “OPTIONAL REMOTE CONTROL” wires to connect Durablow remote controls. Page 6...
- Page 7 OUT-OF-RANGE SAFETY ALERT This Durablow remote control system have a OUT-OF-RANGE SAFETY ALERT function which alerts when the transmitter is out of the normal 20-foot operating range of the receiver for both ON and OFF status, in order to prevent the loss of transmitter, or low battery.
-
Page 8: Troubleshooting
TROUBLESHOOTING Page 8 For all Durablow fireplace remote control kits. OBSERVED PROBLEM POSSIBLE REMEDY CAUSE Fireplace fire shuts off 1. No enough fresh air in room, the ODS 1. Open window and/or door for in use. pilot shuts off the entire system. - Page 9 Durablow warrants this remote control system for a 1-YEAR LIMITED WARRANTY of the original purchaser / owner of this system. This warranty is not transferable to another person. it is for the original purchaser of the product. Durablow warrants any parts failed because of defective workmanship in production or materials from the original date of purchase.
-
Page 10: Fcc Statement
FCC / ID FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
