ITALIANO: Questo simbolo sui prodotto o sulla relativa confezione
indica che il prodotto non va trattato come un rifiuto domestico.
In ottemperanza alla Direttiva UE 2012/19/EU sui rifiuti di
apparecchiature elettriche ed elettroniche (RAEE), questa prodotto
Warranty • Garantieinformationen • Garantía • Garantie • Gwarancji • Garanzia
USA & CANADA: manhattanproducts.com
DEUTSCHLAND: manhattanproducts.de
EN MÉXICO: manhattanproducts.mx | Póliza de Garantía Manhattan — Datos del importador y responsable
ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La
Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 • La presente garantía cubre
los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
A Garantizamos los productos de limpieza, aire comprimido y consumibles, por 60 dias a partir de la fecha de entrega, o
por el tiempo en que se agote totalmente su contenido por su propia función de uso, lo que suceda primero.
B Garantizamos los productos con partes móviles por 3 años.
C Garantizamos los demás productos por 5 años (productos sin partes móviles), bajo las siguientes condiciones:
1 Todos los productos a que se refiere esta garantía, ampara su cambio físico, sin ningún cargo para el consumidor.
2 El comercializador no tiene talleres de servicio, debido a que los productos que se garantizan no
cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico.
3 La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye
en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
Para hacer efectiva esta garantía bastará con presentar el producto al distribuidor en el domicilio donde fue adquirido o en el domicilio
de IC Intracom México, S.A.P.I. de C.V., junto con los accesorios contenidos en su empaque, acompañado de su póliza debidamente
llenada y sellada por la casa vendedora (indispensable el sello y fecha de compra) donde lo adquirió, o bien, la factura o ticket de compra
original donde se mencione claramente el modelo, número de serie (cuando aplique) y fecha de adquisición. Esta garantía no es válida
en los siguientes casos: Si el producto se hubiese utilizado en condiciones distintas a las normales; si el producto no ha sido operado
conforme a los instructivos de uso; o si el producto ha sido alterado o tratado de ser reparado por el consumidor o terceras personas.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal
Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance
with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the
equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.
ENGLISH: This device complies with the requirements of CE RED 2014/53/EU, 2014/30/EU
and/or 2014/35/EU. The Declaration of Conformity for is available at:
DEUTSCH: Dieses Gerät enspricht der CE RED 2014/53/EU, 2014/30/EU und / oder 2014/35/EU.
Die Konformitätserklärung für dieses Produkt finden Sie unter:
ESPAÑOL: Este dispositivo cumple con los requerimientos de CE RED 2014/53/EU, 2014/30/EU
y / o 2014/35/EU. La declaración de conformidad esta disponible en:
FRANÇAIS: Cet appareil satisfait aux exigences de CE RED 2014/53/EU, 2014/30/EU
et/ou 2014/35/EU. La Déclaration de Conformité est disponible à :
POLSKI: Urządzenie spełnia wymagania CE RED 2014/53/EU, 2014/30/EU I / lub 2014/35/EU.
Deklaracja zgodności dostępna jest na stronie internetowej producenta:
ITALIANO: Questo dispositivo è conforme alla CE RED 2014/53/EU, 2014/30/EU e / o
2014/35/EC. La dichiarazione di conformità è disponibile al:
manhattanproducts.com
North & South America
IC Intracom Americas
550 Commerce Blvd.
Oldsmar, FL 34677, USA
Xizhi Dist., New Taipei City 221, Taiwan
All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights
reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
Printed on recycled paper.
elettrico non deve essere smaltito come rifiuto municipale misto.
Si prega di smaltire il prodotto riportandolo al punto vendita o al
punto di raccolta municipale locale per un opportuno riciclaggio.
EUROPA: manhattanproducts.eu
ITALIA: manhattanproducts.it
Regulatory Statements
FCC Class B
CE
Asia & Africa
Europe
IC Intracom Asia
IC Intracom Europe
4-F, No. 77, Sec. 1, Xintai 5th Rd.
Löhbacher Str. 7
D-58553 Halver, Germany
MH_208291_QIG_1019_REV_5.01

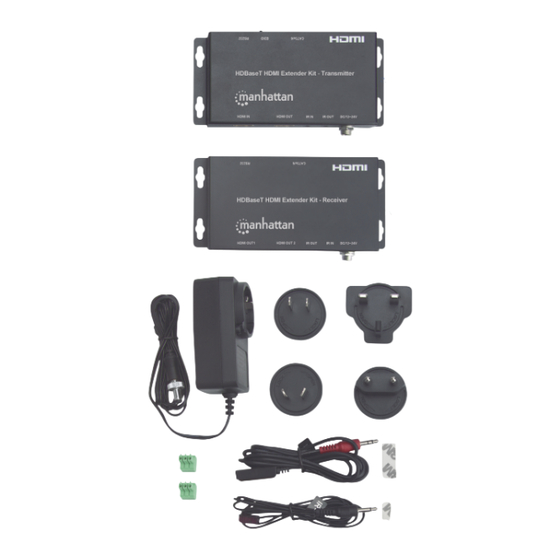

HDBaseT 4K HDMI Extender
With Dual HDMI Output
Instructions
Model 208291
1 Use HDMI cable to connect the HD source to
the transmitter unit. Use HDMI cable to connect
transmitter unit to your local HD display (optional).
2 Use Cat5e (or above) cable to connect the
RJ45 jacks on the Transmitter and Receiver.
3 Use HDMI cable to connect the receiver
unit to your HD display(s).
4 Connect the IR transmitters (IR-TX) to the IR
Out ports; connect the IR receivers (IR-RX)
to IR In ports. Ensure that each IR device has
a clear line of sight to source or remote.
manhattanproducts.com
Important: Read before use. • Importante: Leer antes de usar.
1
1
4
4
5
6
OR
2
7
6
3
3
4
4
5
5 Connect power to either the transmitter or
receiver unit. Either unit will supply power
to the other over the Ethernet cable.
6 (Optional) Terminate RS232 wiring with
the included Phoenix plugs and then plug
them into the transmitter/receiver.
7 EDID Settings — Auto: sets resolution
automatically (default is 4K@60Hz); Local: copy
EDID from display of transmitter; Remote:
copy EDID from display of receiver.
For specifications, visit manhattanproducts.com.
