SafeGuard™

Blockage Monitor

Operation Manual

GOOD

Table of Contents

Need help?

Do you have a question about the 3RIVE 3D SafeGuard and is the answer not in the manual?

Questions and answers

Summary of Contents for micro-trak 3RIVE 3D SafeGuard

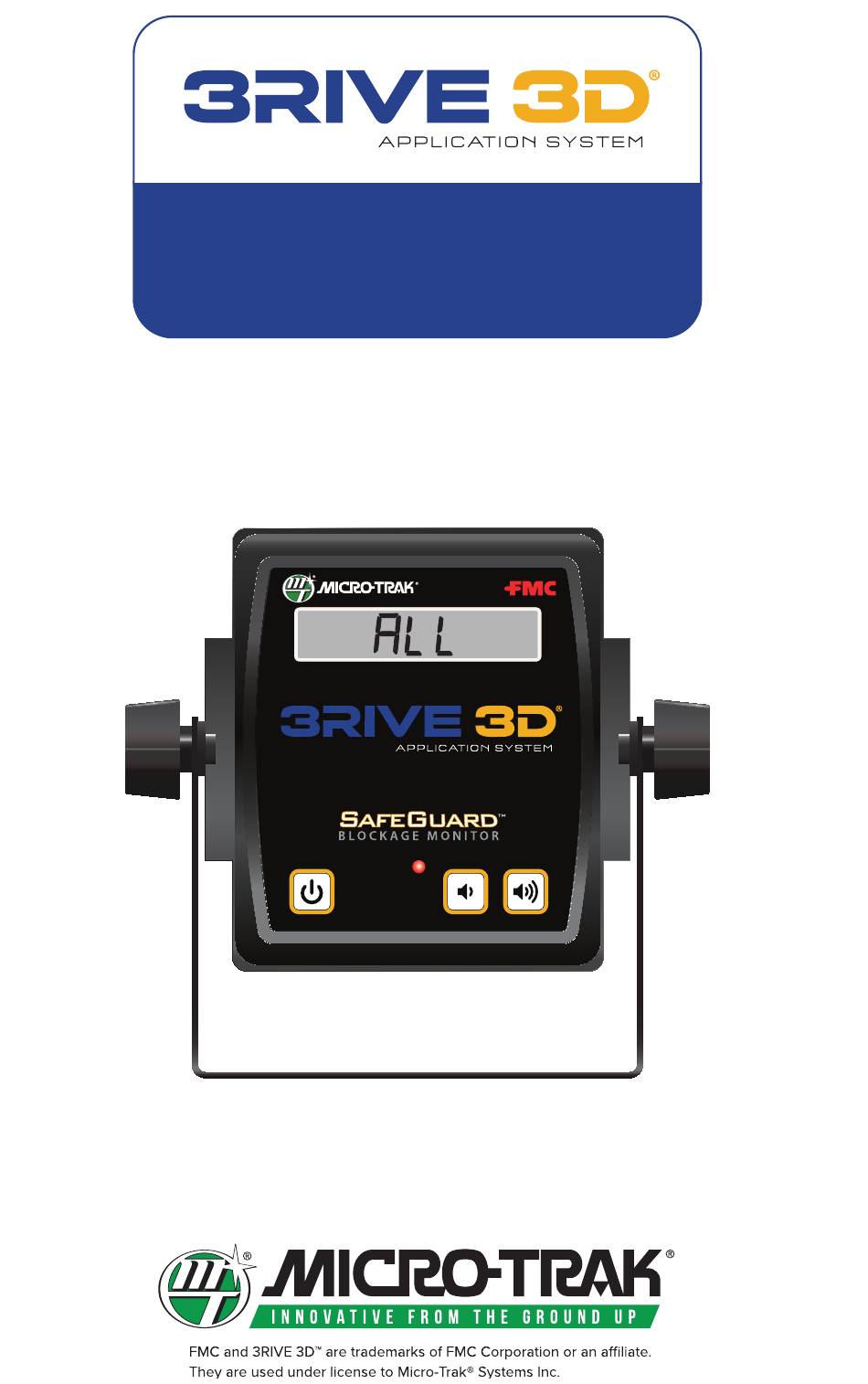

Page 1 SafeGuard™ Blockage Monitor Operation Manual GOOD...
Page 2: Table Of Contents
Contents Components Implement Switch Module Operation Power Up Sequence Normal Operation Troubleshooting Error Messages Sensor Parts Parts List Warranty Notes www.micro-trak.com...
Page 3: Components
“P2” and sensors de- signed for use with fumigants are marked “T1”. Fittings Micro-Trak offers a wide variety of O-ring seal fittings to connect SafeGuard™ sensors to your plumbing system. The use of non-Micro-Trak fittings with SafeGuard is...
Page 4: Implement Switch Module
Implement Switch Module A three-pin Metri-Pack connector joins the implement switch. The switch is con- nected between pins A & C. When the switch is closed the audibel alarm is on. When the switch is open, the audible alarm is muted and HOLD is displayed. The display still shows blockage and error indications when HOLD is displayed.
Page 5: Operation
Operation When the console is turned on it searches for sensors and implement switch mod- ules installed on the data line. During the power up sequence the console displays the number of sensors found, for example: S16 indicates 16 sensors were detect- ed during power up.
Page 6: Power Up Sequence
Power Up Sequence SafeGuard™ displays a sequence of information screens during the power-up routine. • Elapsed Time - Total cumulative time the console 5. 9 has been turned on. • Software part number - The part number of the 45147 SafeGuard™...
Page 7: Normal Operation
Normal Operation System Status – Not Applying Liquid Typically the SafeGuard is turned on before liquid application begins, so the sensors detect blockage (no flow) after initial start-up. The system will display ALL BLOCKED, or ALL BLOCKED HOLD if an implement switch is being used and is open.
Page 8: Troubleshooting
Troubleshooting Console won’t turn on Is there power on the console power cable? Pin A is +12 VDC, Pin B is ground. • Troubleshoot for possible blown fuse, broken wiring or bad connections on power cable. Verify there’s power at cable connection point. •...
Page 9: Error Messages
Error Messages HOLD This is not an error. This indicates HOLD that the implement switch module BLOCKED has placed the system in “hold”, or standby. The audible alarm is muted but blockages are still displayed. BLOCKED This indicates a blockage is detected.
Page 10: Sensor Parts
Sensor Parts 3RIVE 3D Foam Blockage Kit - P/N 16017 Cartridge clip Foam Sensor P/N 19685 P/N 18514 Pink cartridge P/N 18687 Cartridge clip P/N 18514 O-ring P/N 18521 (Viton® type) Pink Cartridge U-clips (2) P/N 18510 P/N 18687 3/8” plug ﬁtting P/N 18627 Cap ﬁtting P/N 18488...
Page 11: Parts List
Parts List Part # Description 18687 Pink Cartridge 18514 Cartridge Retainer Clip 19360 3RIVE 3D™ SafeGuard™ Console 13304 Console Mount Bracket 13181 Console Mount Kit 12888 Console Mount Knob 12889 Console Mount Washer 18529 A Implement Whisker Switch w/cable 18530 Magnet Mount for Implement Whisker Switch 18541 Implement Whisker Switch Kit w/cable and magnetic mount...
Page 12: Warranty
Warranty Micro-Trak Systems, Inc. (herein “Seller”) warrants to the original purchaser (herein “Buyer”) that, if any product or part of the product (herein “Parts”) proves to be defective in material or workmanship, upon inspection and examination by Seller, within three (3) years from the...
Page 13: Notes
Notes...
