Thank you for purchasing the new Digitek G-Line 'Pro' Thatcham approved CAT 1 alarm system; this security system has
been designed specifically for motorcycles. An additional Digitek G-Link garage/shed wireless 'PIR' can also be added to
this system to protect your garage/shed contents providing the motorcycle is within 20meters of the PIR. When the PIR
detects movement it will trigger the Digitek G-Line Pro motorcycle alarm. For further information on the Digitek G-Link
Please read the following installation instructions carefully to familiarise yourself fully with the alarm system features
and operating procedures, should you have any questions then please contact us at
Installation Instructions
garage/shed wireless PIR please visit us at
'www.digitek-mot.com'
'techincal@digitek-moto.com'.
Thatcham Homologation Number; TQA 382
CONTENTS
1/14
www.digitek-moto.com
Rev05/KM/271113/DigProInst
G-Line 'Pro' Alarm
System
Advertisement
Table of Contents
Summary of Contents for Digitek G-Line Pro
-
Page 1: Table Of Contents
System Installation Instructions Thank you for purchasing the new Digitek G-Line ‘Pro’ Thatcham approved CAT 1 alarm system; this security system has been designed specifically for motorcycles. An additional Digitek G-Link garage/shed wireless ‘PIR’ can also be added to this system to protect your garage/shed contents providing the motorcycle is within 20meters of the PIR. When the PIR detects movement it will trigger the Digitek G-Line Pro motorcycle alarm. -
Page 2: Alarm Positioning
Warrant will be void! ATTENTION; Do not jet wash the alarm ECU. The alarm warranty will not cover damages to the alarm system due to water ingress caused by improper installation OR jet washing! 2/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... -

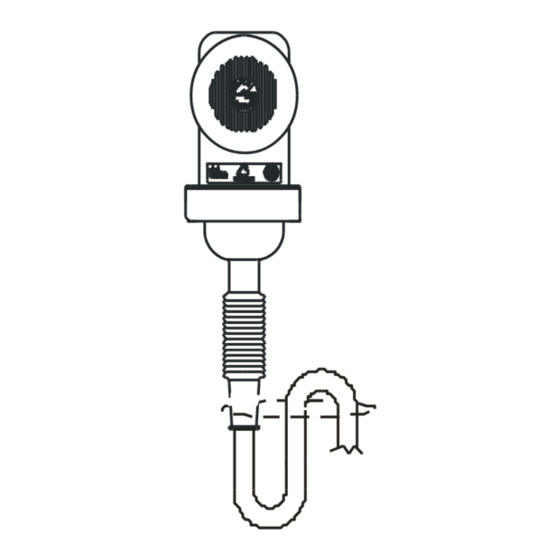

Page 3: Alarm Positioning For Maximum Sensitivity
To ensure correct operation of the built-in motion sensor install the alarm as illustrated below. 45° 45° Figure 1: horizontal positioning. Figure 2: maximum applicable inclination. Figure 3: Motion sensor operation with the siren facing up or down. The sensor will detect any movement of the motorcycle in any direction (recommended). 3/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... - Page 4 ATTENTION: Only for motorcycles with a centre stand. To prevent water from entering the alarm unit via the rubber sheath the alarm must position with the rubber sheath at the bottom (as shown in figure 5 above). 4/14 www.digitek-moto.com Rev05/KM/271113/DigProInst...
-
Page 5: Alarm Unit Sealing
To seal the alarm, position the rubber cap over the external edge of the alarm housing. Pull the plastic rectangular flange over the rubber cap and secure with the supplied screws. Do not over tighten. Alarm unit sealed 5/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... -
Page 6: Electronic Touch Key Receptacle Positioning
ATTENTION: Before drilling with a 13mm drill bit check behind the trim that you have plenty of room for the receptacle and to be sure that the LED will not be obscured for example by the handlebars when the vehicle is parked. 6/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... -
Page 7: Contact Switch Positioning
If more than one area is to be protected, extra magnets and switches are available through Digitek Moto-Technic, this is a chargeable extra. ATTENTION: The ENGINE immobilizer 40 second count down is interrupted until the seat/top case is closed! 1.5 –... -
Page 8: Engine Immobilisation (Electronic Ignition)
Turn Indicator Black Antenna Alarm connecter plug from wire entry side. WIRING CONNECTOR lack signed “B1” Engine immobilis Brown Earth for electron 3 Black signed “M” : Power supply ea White/Violet Panic siren input 8/14 www.digitek-moto.com Green/Brown Contact switch Rev05/KM/271113/DigProInst... - Page 9 ‘B1’ (Com) marked Green/Black Yellow Pink Ignition key Immobiliser: Black wire (Max 10 mA) ‘H1’ (N/C) marked 12v Battery Green/Brown ‘G’ Black wire marked Attention; the supplied reed Ground switch must be fitted to comply with Thatcham approval. 9/14 www.digitek-moto.com Rev05/KM/271113/DigProInst...
-
Page 10: Engine Immobilisation (Electronic Ignition) - Wiring Diagram
‘ ’ to to other side of wire being cut (i.e; fuel or Ign). ATTENTION: Max relay capacity is 8amp. The ENGINE immobilizer 40 second count down is interrupted until the seat/top case is closed! 10/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... -
Page 11: Learning New Devices
System 1.9 – Learning New Devices The following 2 procedures below (A or B) can be used for learning additional remote controls and the Digitek G-Link garage/shed wireless PIR. For further information on the ‘Digitek G-Link’ visit us at ‘www.digitek-moto.com’. -
Page 12: Programmable Features
After pressing both buttons simultaneously (step 4), program the features according to your needs. TO ENABLE DISABL Press button 2 Press button Button 1: TO ENABLE Acoustic signals Button 2 TO DISABLE Button 1: TO ENABLE Panic siren Button DISABLE EXIT PROGRAMMING 12/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... -
Page 13: Replacing Remote Control Batteries
LED will show a steady light at the press of a button. If the batteries are low the radio key LED will start blinking rapidly when the button is pressed. Button 1: Alarm system arming/dis-arming Panic Alarm Button 2: Hazard feature activation indicator Button 1 Button 2 13/14 www.digitek-moto.com Rev05/KM/271113/DigProInst... -
Page 14: Technical Specifications
12 Vdc Supply voltage range 9Vdc - 15Vdc Current absorption @ 12 Vdc <1.5ma (System armed and LED flashing) Current absorption in ’Sleep Mode’ < 1 µA Realay Capacity 8amp Siren sound level 118 dB max @1m 14/14 www.digitek-moto.com Rev05/KM/271113/DigProInst...
