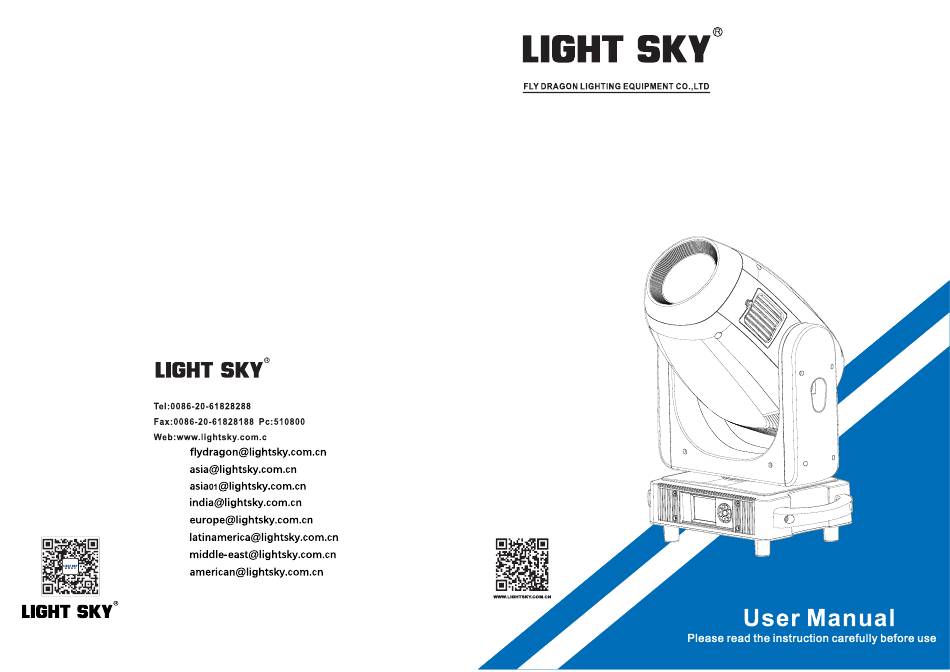

- Page 1 SUPER SCOPE PRO E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...
-
Page 2: Table Of Contents
CONTENTS ....................2 1. Safety Instructions ...................5 2. Technical Specifications ..................7 2.1. Attachment And Size ................... Color/Gobo/Prism ......................10 4. Control Panel ..................11 5. Connection and control ................11 5.1. Power supply connection ..................12 5.2. DMX 512 Connection ....................13 6. How To Set The Unit ....................13 6.1. -
Page 3: Safety Instructions
1.Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:... - Page 4 The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces. Be sure that no ventilation slots is blocked, otherwise the unit will be overheated. Before operation, ensure that you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product’s specification label.
- Page 5 Do not operate this product if you see damage on the housing, shields, or cables. Have the damaged parts replaced by an authorized technician at once. Installation: The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid vibration and slipping off...
-
Page 6: Technical Specifications
2.Technical Specifications OPTICAL - Light source: 450W white LED module - Zoom range: 4°- 53° - Optical lens: coated with high anti-reflection coating, diameter 133mm - Color temperature: 6500K - Color rendering index: RA≥70 / RA≥90 (cut into high rendering index filter) - Illuminance: 26000 Lux@10m - Luminous flux: 21000 Lm - Light source lifespan: ≥... - Page 7 SOFTWARE - Software upgrade via USB or DMX interface - Intelligent temperature control to ensure LED life X, Y AXIS MOVEMENT - X axis: 540° 8bit/16bit precision scanning - Y axis: 270° 8bit/16bit precision scanning POWER AND POWER Input voltage rangr : AC 100-240V ~ 50/60Hz - Maximum power:520W - Power factor: 0.98...
-
Page 8: Attachment And Size
illuminationdiagram Distance(m) 4° 53° 4° Lux 11500 26000 6500 2800 1000 Diameter(m) 0.62 0.93 1.24 1.86 53° Lux Diameter(m) 56.9 17.07 34.14 22.76 11.38 2.1.Attachment And Size Attachment contents-Fig.1 power cord FAST LOCK Certificate of conformity (Optional) Size-Fig.2... -
Page 10: Color/Gobo/Prism
3.Color/Gobo/Prism CMY-color wheel white white white Blue Cyan Orange Green Pattern-Effect disc Prism... -
Page 11: Control Panel
4.Control Panel 1.Display: To show the various menus and the selected function. 2.Button: OK confirmation key DOWN To the left To the right 3.Socket version power input: connect the power supply. 4.Power output: Connect the lamp power output adapter. 5.DMX inputloutput: Used for DMX512 connection, use 3/5 core XLR signal cable toconnect console and lamps,And input/output DMX signal. -
Page 12: Connection And Control
5.Connection and control 5.1.Power supply connection POWER POWER END The ground wire is connected to the yellow-green wire The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring - The bus connecting the power supply must be installed by a qualified professional technician. -
Page 13: Dmx 512 Connection
5.2.DMX 512 Connection DMX512 in SIGNAL END DMX-input DMX - output - Shield 1 - Shield - Signal (-) 2 - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected 1. -
Page 14: How To Set The Unit
6.How To Set The Unit 6.1.Main Function Turn on the fixture, press the OK button to enter the menu mode, use the UP/DOWN buttons to find the menu, when the preset menu is shown on the display, press the OK button to confirm, use the UP/DOWN buttons to select a submenu, then press the OK button to save Settings, use the left button to return to the previous menu. - Page 15 Main menu I menu II menu III menu Ⅳ menu 1.Pan 0 - 255 Manual Control → 2.Pan fine → 0 - 255 3..0 - 255 Total reset Pan/Tilt reset Manual → Gobo reset Reset → Color reset Profile reset Focus reset Effect reset Test all...
-
Page 16: Channel Setting
6.2 . Channel Setting Enter the MENU menu, select the Personal Settings function, select the channel mode, press the OK button to confirm, you can use the up and down keys to select:33 channels (default), 36channels, Press the OK key to enter the selection confirmation and return to the previous menu. 6.3 . -
Page 17: Dmx 512 Configuration
6.4.DMX 512 Configuration Please control the fixture by referring to the configurations below 33 Channel 36 Channel Function Note 0--255 Pan positioning 0--255 Fine Pan positioning 0--255 Tilt positioning 0--255 Fine Tilt positioning 0--255 Speed pan/tilt DeviceSet(Hold 3s） 0--9 No function 10--19 Fan high speed 20--29... - Page 18 33 Channel 36 Channel Function Note 50--59 RotGobo 5 60--69 RotGobo 6 70--79 RotGobo 7 80--87 RotGobo1shake,slow to fast 88--95 RotGobo2shake,slow to fast 96--103 RotGobo3shake,slow to fast 104--111 RotGobo4shake,slow to fast 112--119 RotGobo5shake,slow to fast 120--127 RotGobo6shake,slow to fast 128--135 RotGobo7shake,slow to fast 136--139 Open...
- Page 19 33 Channel 36 Channel Function Note 128--191 Backwards prism rotation from fast to slow 192--207 prism flickered 90° 208--223 prism flickered 180° 224--239 prism flickered 270° 240--255 prism flickered 360° 0--255 Frost 0--255 Focus8bit 0--255 FocusFine16bit 0--255 Zoom8bit 0--255 ZoomFine16bit Strobe 0--9 Strobe closed...
-
Page 20: Electrical Connection Diagram
7.Electrical Connection Diagram -19-... -
Page 21: Troubleshooting
8.Troubleshooting The following are common faults of lamps and corresponding solutions. Faults that cannot be repaired by yourself should be handled by professionally qualified personnel. Disconnect the power supply to the lamp during maintenance! ● The light source is not bright - Check that a suitable light source is installed for the luminaire. - Page 22 - Check whether the power supply is insufficient, and whether the power switch and wiring are in poor contact or aging. - Check whether the over-temperature protection temperature switch inside the lamp is damaged. ● Although it emits light, the lamp does not accept instructions from the controller - Check whether the digital start address value and function options of the lamp are correct.
-
Page 23: Fixture Cleaning
9.Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
