Summary of Contents for Chase CARD READER

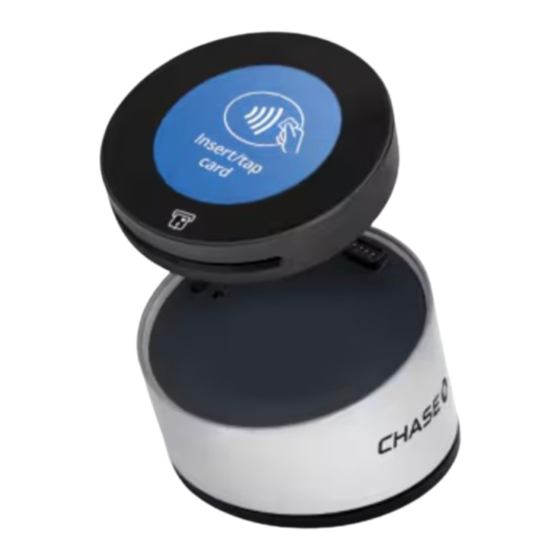

- Page 1 OBILE EADER CHASE CARD READER & BASE INSTALLATION GUIDE Product Description CHASE CARD READER Versatile mobile card reader CARD READER BASE Countertop charging base...
- Page 2 2 years. Caution: Do NOT attempt to open and disassemble the device to cause device tamper and violet the warranty. ■ CHASE CARD READER Power spec: Input: 5V DC, 1A ■ READER CHARGING BASE Power spec:...
-
Page 3: Package Content
1. PACKAGE CONTENT ■ CHASE CARD READER BOX Card reader • Pogo pin to USB-C charging cable • ■ CARD READER CHARGING BASE Card reader base • 6.5ft (2m) power cable • 5V/2A power adapter • Base holder plate •... -
Page 4: Device Overview
2. DEVICE OVERVIEW 2.1 CHASE CARD READER TOP & SIDE VIEW Description Touch Display & NFC area Magnetic Stripe Reader Smart Card Reader Power Button... - Page 5 2.2 CHASE CARD READER_BOTTOM VIEW Description Battery Cover Charging Connector Secure Screw Nut T-pin indicator Hole Lanyard Hole Bottom Cover Removal Warning When removing the bottom cover for the purposes of changing battery, please remove the connector gentilely. . CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
- Page 6 2.3 CHASE CARD READER_INSIDE VIEW Description Battery Connector Battery Pack SAM Card Slot Reset key 2.4 READER CHARGING BASE_TOP VIEW...
- Page 7 Description Power LED (Blue) Charging Connector Secure Screw T-pin indicator 2.5 READER CHARGING BASE_BOTTOM VIEW...
-
Page 8: Contactless Reader
Description USB-C Power Connector Base Holder Slot Base Holder Anchor Positioning Hole Secure Screw (keep Chase Card Reader on the Charging Base) Power Cable Slot Base Holder Plate 3. HOW TO POWER ON THE READER Press the power key >3 seconds as shown on Figure 6 until hearing the beep sound and the display on. -
Page 9: Smart Card Reader
4.2 SMART CARD READER Insert your credit card with the ICC chip upward into the card slot and push it to the end as below Figure 8. 4.3 MAGNETIC STRIPE READER Swipe your credit card with the magnetic stripe up facing the device. You can swipe... - Page 10 5. HOW TO OPEN BATTERY COVER FOR REPLACEMENT Use the finger or the pen point to push the battery cover to right side as below Figure 11 to release the battery cover from the reader body to replace the battery or SAM card.
- Page 11 7. HOW TO LOCK READER TO THE BASE After placing the Reader onto the Base, turn over the full set to find the secure screw. Use one cent US dollar coin or screw drive to lock the device as shown on Figure 13.
- Page 12 Step#3: Push the Charging Base from the front side to fix it with the Base Holder. Pull it back to remove the Base from the desktop as Figure 16. 9. HOW TO PLUG IN THE BASE Use the 6.5ft (2m) power cable provided in the charging base box to connect the base to the 5V/2A power adapter.
- Page 13 Figure 18 shows the incorrect method of using the straight plug into the base. Insert the straight plug into the power adapter, as shown in Figure 19.
- Page 14 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
