welcoming
MODEL NUMBER DESCRIPTION
1789MR-22-201
1789MR-22-310
1789MR-22-322
1789MR-22-323
1789MR-22-325

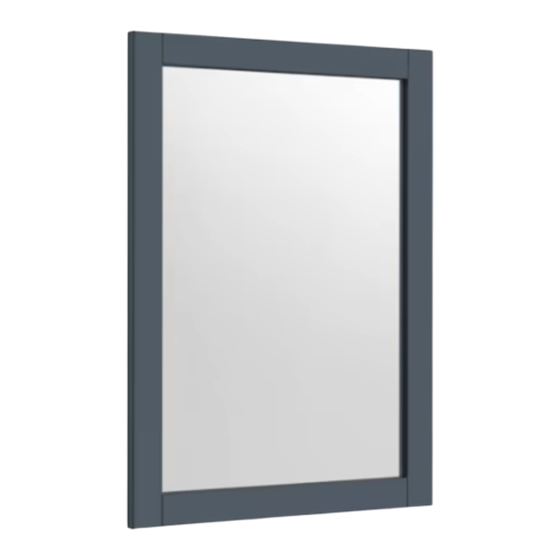

22-IN MIRROR
ITEM #4136288; 5055519; 4136287; 4136290; 4136289
MODEL #1789MR-22-201; 1789MR-22-310; 1789MR-22-322; 1789MR-22-323; 1789MR-22-325
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
AR 22-IN BROOKVIEW WHITE MIRROR
AR 22-IN BROOKVIEW SLATE BLUE MIRROR
AR 22-IN BROOKVIEW PINE MIRROR
AR 22-IN BROOKVIEW ROYAL NAVY MIRROR
AR 22-IN BROOKVIEW TRUE GRAY MIRROR
1
•
inspiring
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allen + Roth 1789MR-22-201
Summary of Contents for Allen + Roth 1789MR-22-201
- Page 1 AR 22-IN BROOKVIEW TRUE GRAY MIRROR 22-IN MIRROR ITEM #4136288; 5055519; 4136287; 4136290; 4136289 MODEL #1789MR-22-201; 1789MR-22-310; 1789MR-22-322; 1789MR-22-323; 1789MR-22-325 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
- Page 2 TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................3 Assembly or Installation Instructions ....................5 Care and Maintenance........................7 Warranty............................7 Replacement Parts List........................7...
- Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Mirror Mounting Hanger (preassembled to Mirror (A)) HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Anchor Screw Touch Up Pen Qty. 2 Qty. 2 Qty. 1 SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product.
- Page 4 BEFORE YOU INSTALL, MAKE A CHOICE!! OPTION 1: Vertical Mounting. OPTION 2: Horizontal Mounting.
- Page 5 INSTALLATION INSTRUCTIONS 1. Measure the distance between the holes in the mounting hangers (B) on the back of the mirror (A). 2. Measure and mark location for mounting hardware on the wall using the measurement from Step 1. Make sure the marks are level and located at the desired height.
- Page 6 INSTALLATION INSTRUCTIONS 3. If the wall is drywall, there is no need to drill pilot holes for wall anchors (AA). Screw anchors (AA) flush into the wall. Then, insert screws (BB) into anchors (AA), leaving approximately 1/4 in. protruding out from the wall. If the wall is not drywall, please choose appropriate mounting hardware (not included) for your installation site, and follow the installation instructions to secure the mounting hardware to...
- Page 7 For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Mounting Hanger Anchor PU16-1.75x1-MH Screw Touch-up Pen OF-0010 (1789MR-22-201) Touch-up Pen M-1128 (1789MR-22-310) Touch-up Pen M-0066 (1789MR-22-322) Touch-up Pen OX-0180Y (1789MR-22-323) Touch-up Pen...
