Hydronix EA01 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

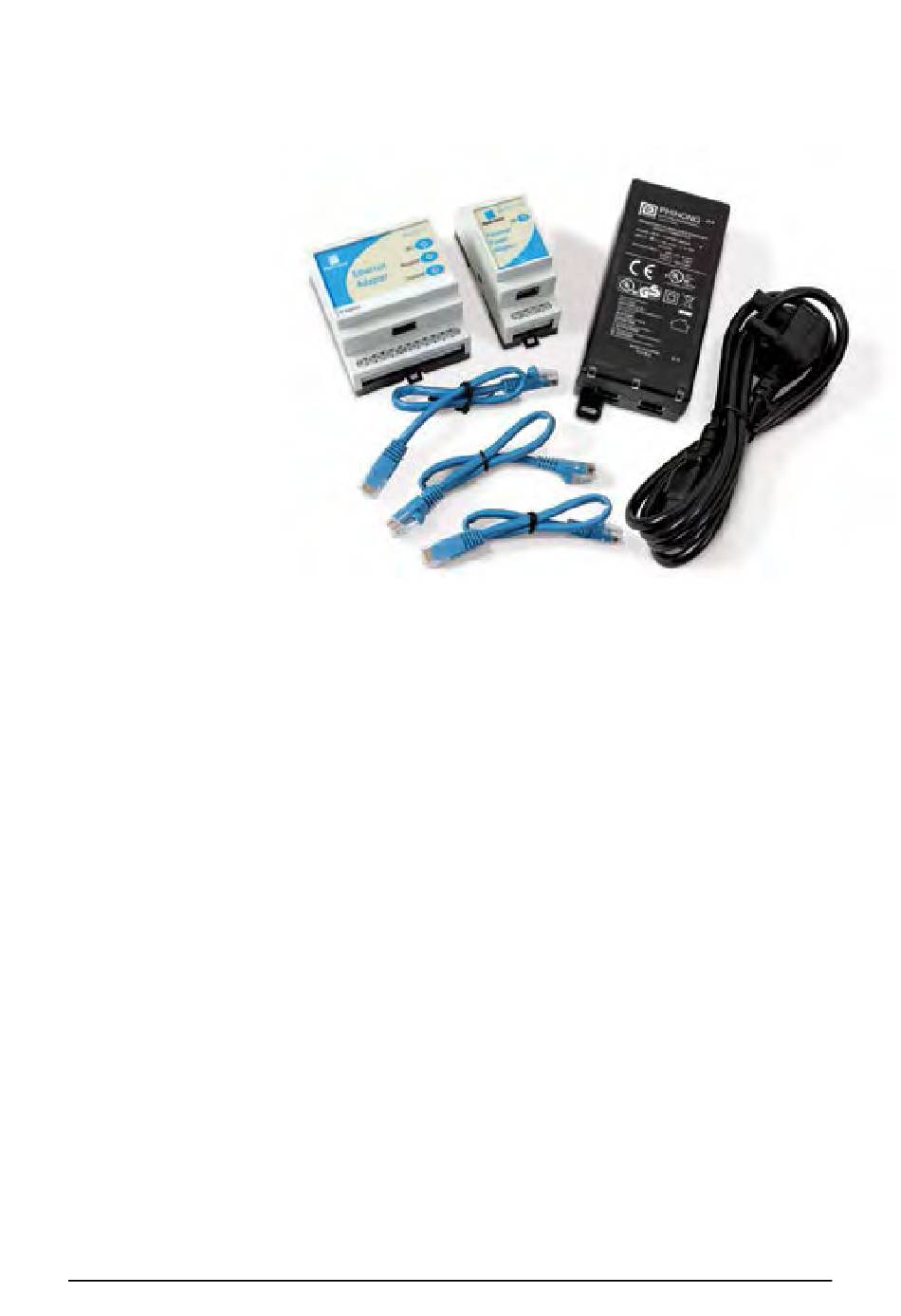

A – Ethernet Adapter – EA01
B – Ethernet Power Adapter – EPA01
C – Ethernet Power Injector – EPI01
D – IEC Mains Cable
E – Ethernet Patch Cables x 3
Order Options:
Ethernet Adapter Kit
Comprises:
Use:
Ethernet Power Adapter Kit:
Comprises:
Use:
Kit Contents
B
A
Part Number: EAK01
Ethernet Adapter, Ethernet Patch Cable (0.5m), User Guide, CD
with Hydro-Com software and User Guide
Use with external 24V power supply
Part Number: EPK01
All the above plus Ethernet Power Adapter, Power Injector, IEC
mains cable and 2 additional Ethernet Patch Cables
Provides power and Ethernet connection over standard CAT5e
cable
Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0
C
E
D
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EA01 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydronix EA01

Summary of Contents for Hydronix EA01

  • Page 1 Part Number: EPK01 Comprises: All the above plus Ethernet Power Adapter, Power Injector, IEC mains cable and 2 additional Ethernet Patch Cables Use: Provides power and Ethernet connection over standard CAT5e cable Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 2 Chapter 1 Introduction The Hydronix Ethernet Adapter provides a simple method of network enabling Hydronix products. The Adapter is a small DIN-rail mounted unit that converts packets received over an Ethernet (TCP/IP) network to RS485 or RS232. This enables a host PC elsewhere on the network to communicate with sensors using Hydronix Hydro-Com software.

  • Page 3: Connecting With Sensors

    The Ethernet Adapter should be mounted in the wiring junction box as close to the sensors as possible, and protected from water and excessive dust. The Ethernet Adapter (EA01) should be installed in such a manner as to prevent electro-static discharge to the Ethernet “IN”...
  • Page 4 The diagram below shows the number of sensors that can be used at different air temperatures for each sensor type. Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 5 IN to the router output and the port labelled OUT to the drop cable. Connect a 240V or 110V mains supply to the Power Injector. Note: The Power Injector Module can supply sufficient power for up to three Hydronix sensors (or 4 Hydro-Probe II sensors). If more sensors are to be connected to the network, then a separate power supply local to the sensors should be used instead of the Power over Ethernet solution.

  • Page 6: Rs-485 Wiring Recommendations

    It must be connected to an Ethernet cable with an 802.11af compliant Power Injector supplying it. The Ethernet Adapter (EA01) has three indicator lights on the top. The red indicator illuminates when a suitable 24V supply is connected. The transmit indicator light blinks when data is received by the Adapter and is being sent to the sensors.
  • Page 7 Winsock or TCP Client control to port 10001 on the Adapter. Further information on these controls can be found in the programming system documentation. Although Hydronix is able to provide guidance they may be unable to give detailed technical support for developing custom software applications.
  • Page 8 In order to maintain compliance with the relevant product directives, this equipment should only be installed and used with the approved components supplied by Hydronix. Unauthorized modifications to these units could void the units compliance and invalidate the users right to use the equipment.
  • Page 9 Ethernet Adapter, ensuring that the wire is of sufficient power rating to carry the power for the Hydro-Control VI and it’s sensor. Connect RS232 cables between the Ethernet Adapter and the Hydro-Control VI. Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 10 The same “ * “ commands can be used as would normally be used over a serial link, and the responses will provide the same information. Refer to the Hydro-Control VI Users Guide for more details of the commands available Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...

  • Page 11: Configuring The Ethernet Adapter

    DHCP addresses. Contact the Network Administrator to find a suitable address. 2 Finding an Ethernet Adapter automatically Communication with Hydronix sensors is carried out with the Hydro-Com Utility. To start go to the Communications->TCP/IP menu in Hydro-Com and select “Search for Ethernet Adapters”.

  • Page 12: Adding An Ethernet Adapter Manually

    >Add Ethernet Adapter. In the dialog that is shown, enter the IP Address and Port Number (usually 10001) of the Ethernet Adapter The adapter will be added to the list, select it to connect. Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...

  • Page 13: Changing The Ethernet Adapter Ip Address

    The table below shows the settings used in this example: Company Network Settings Ethernet Adapter Settings IP Address Opened Port IP Address Port Number 123.456.78.901 7011 192.168.10.61 10001 Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 14 Hydro-Com prevents you from setting these port numbers. Install Hydro-Com on the remote machine. As before, select Communications->TCP/IP->Add Ethernet Adapter. In the Add Ethernet Adapter window, enter the IP Address of the Firewall and the Port opened. Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...

  • Page 15: Technical Specifications

    Modules should be used indoors in dry environments only. The enclosures are rated to IP31. Interfaces: Ethernet IN: Standard 10/100baseT Ethernet RJ45 socket RS485: Can connect to a maximum of 16 Hydronix Sensors RS232: Standard RS232 interface Weight: 160g 2 EPA01 Ethernet Power Adapter...

  • Page 16: Terminal Identification

    24V + to sensor 0V to sensor It is not recommended to wire RS485 using a star topology RS485 B Please refer to chapter 2 on RS485 RS485 A wiring recommendations 24V + to sensor Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 17 Ethernet Power Adapter Signal Terminal Description CAT5e Network cable from EPI01 CAT5e Network cable to EA01 0V output 0V output No connection 24V + output 24V + output 0V output 0V output Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 18 Technical Specifications Chapter 5 No connection 24V + output 24V + output Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...

  • Page 19: Fault Finding

    If that fails then try pinging the IP address of the Ethernet Adapter Invalid IP address If the subnet mask is Connection from Contact local network 255.255.255.0 then if Hydro-Com to Ethernet administrator or Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...

  • Page 20: Ethernet Power Injector Epi01

    Check Required Result Action required on failure Ethernet cable to Cable between EPI01 CONNECT light Replace cable or try a Ethernet Power Adapter and EPA01 illuminated different EPA01 faulty or not connected Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 21 Appendix A Declaration of Conformity Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
  • Page 22 Ethernet Adapter Location......22 Weight ............29 Ethernet Power Adapter ......22 Wiring ............17 Installation ..........21 RS-485 ............18 Hydro-Link ............. 19 Indicator Lights ..........18 Installation ............. 15 Ethernet Adapter ........15 Hydronix Ethernet Adapter User Guide HD0333 Rev 2.1.0...
