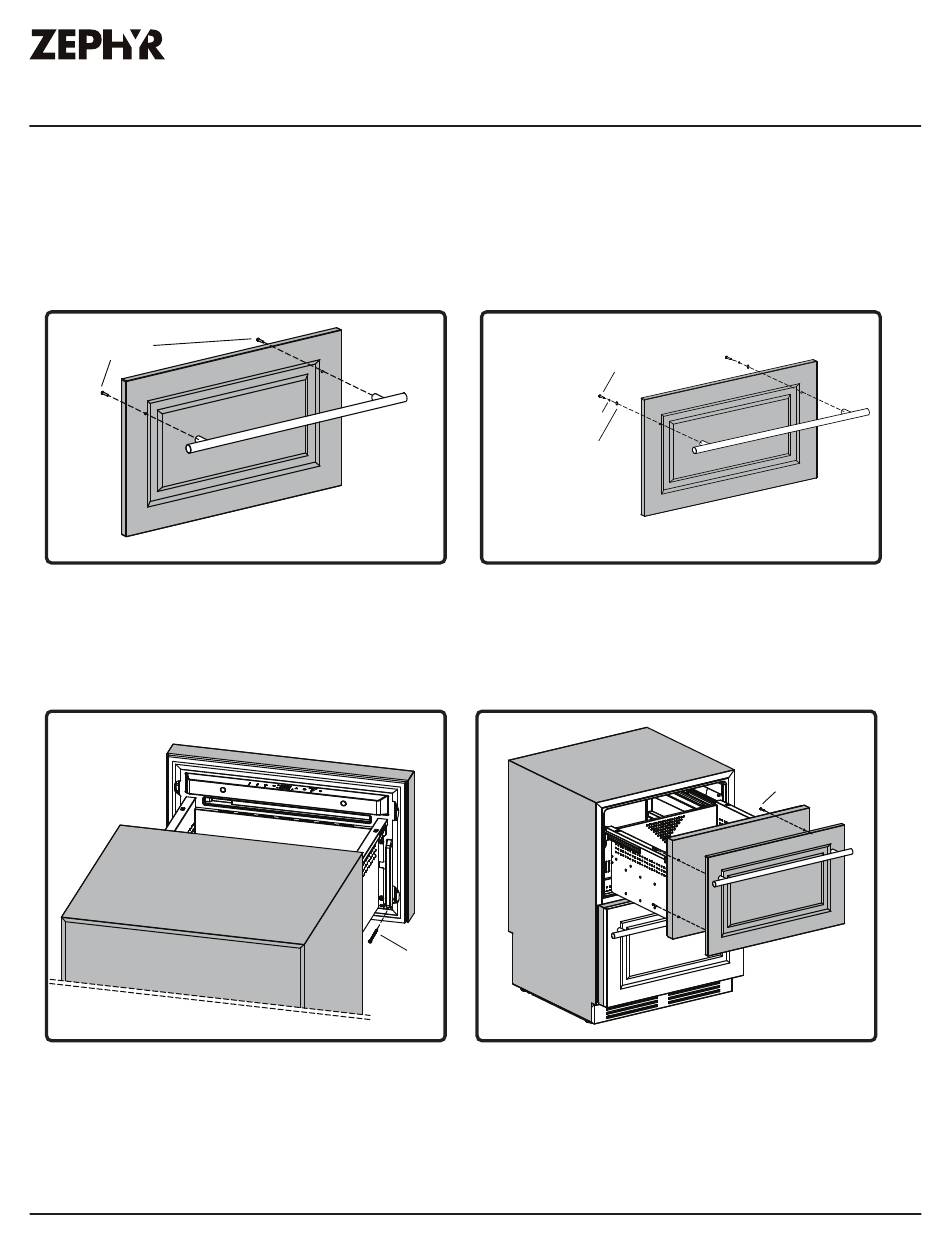

Installing the Drawer Handles and Overlay Panel
The following instructions for installing the drawer handles and overlay panel apply only for the
model, PRRD24C2AP. You may install your own handle onto the wood overlay panel. Take care to
measure and drill the handle screw holes accurately and source the appropriate screws (not included)
unless using Zephyr PRHAN-Cxxx accessory handles.
Screws
1. Custom Handles: Drill (2) holes per
overlay panel to install the handles. Refer
to page 16 for measurements. Install each
of the handles onto the overlay panels by
(2) screws.
2. Pull out the drawer and push aside the
door gasket to reveal screw holes where
(4) ST4*45 screws will be inserted per
overlay panel.
PRRD24C1AS, PRRD24C2AS, PRRD24C2AP Use, Care, and Installation Guide
Installation Instructions
Spring washers
Flat washers
1. Zephyr Handles: Drill (2) holes
counterbore per overlay panel to install
the handles. Install each of the handles
onto the overlay panels by (2) M4*20
screws, spring washers, and flat washers.
Screws
3. Clamp the overlay panel with the drawer
door firmly with bar clamps and screw
(4) self-tapping screws for each overlay
panel. Make sure the overlay panel is
completely secured.
(M4*20) screws
Screws
