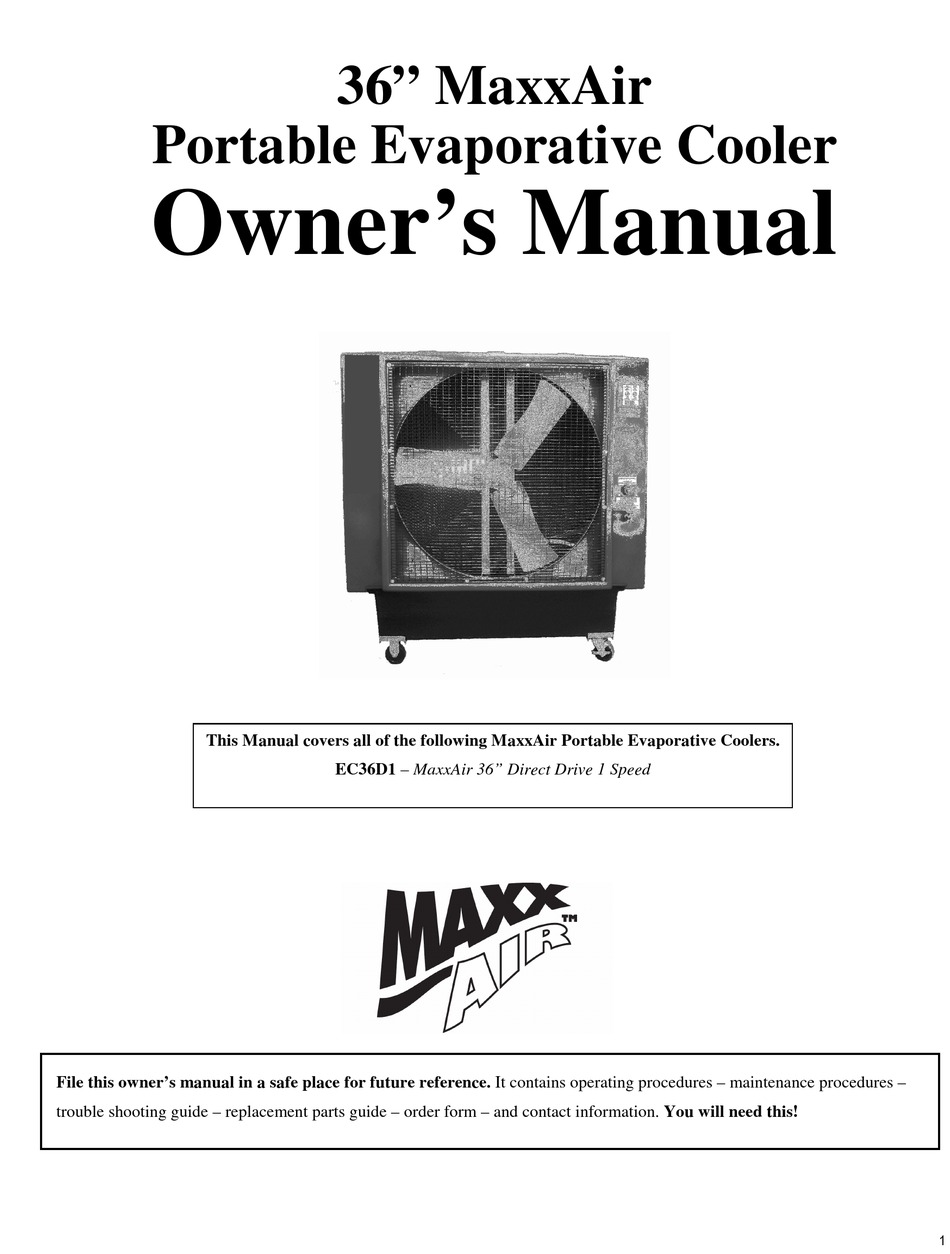

36" MaxxAir
Portable Evaporative Cooler
Owner's Manual
This Manual covers all of the following MaxxAir Portable Evaporative Coolers.
EC36D1 – MaxxAir 36" Direct Drive 1 Speed
File this owner's manual in a safe place for future reference. It contains operating procedures – maintenance procedures –
trouble shooting guide – replacement parts guide – order form – and contact information. You will need this!
Advertisement
Table of Contents
Summary of Contents for Maxxair EC36D1
- Page 1 Portable Evaporative Cooler Owner’s Manual This Manual covers all of the following MaxxAir Portable Evaporative Coolers. EC36D1 – MaxxAir 36” Direct Drive 1 Speed File this owner’s manual in a safe place for future reference. It contains operating procedures – maintenance procedures –...
- Page 2 WARNING Your MaxxAir unit must be plugged into a fused or circuit breaker protected 20 Amp, 120 Volt, 60 Hz circuit – unless specifically manufactured for another voltage / frequency configuration. See manufacturer’s label on cooler. A ground fault circuit interrupter protected circuit is strongly recommended.
-
Page 3: Table Of Contents
Table of Contents Introduction 1.1 Quick Start 1.2 Operate unit for 2 weeks before adding Evap-O-Matic Tablets How Evaporative Cooling Works Unpacking your new MaxxAir unit Set-up your MaxxAir unit 4.1 Connecting the electrical supply 4.2 Connecting the water supply Operating procedures 5.1 Filling the units reservoir with water... -
Page 4: Introduction
MaxxAir Portable Evaporative Cooler 1.0 Introduction Your MaxxAir was tested 3 ways. Your unit was tested for 1. Maximum air flow at operating static pressure. • Only MaxxAir is tested in operating conditions with 2. Water and 3. Electricity before it is shipped. -
Page 5: Connecting The Electrical Supply
4.2 Connecting the water supply Connect standard water hose to female fitting on the right side of your MaxxAir (looking at the fan blade side). If your water pressure is above 60 pounds per square inch (p.s.i). you must use a pressure regulator (which can be found at your local hardware store). -
Page 6: Adjust Water Flow
5.4 Turn-on Fan Once your cooling pads are wet – you may turn on your MaxxAir unit. Now you can begin to feel the MaxxAir difference in temperature. After your MaxxAir has run for 5 minutes or so, visually inspect the pads – if water is dripping outside the unit –... -
Page 7: Daily Maintenance
If you begin to detect an algae smell coming from your unit – it’s time to flush your MaxxAir reservoir with fresh water. Refer to and follow the steps above in 7.2 and you will only need to remove 1 or 2 of the cooling pads from the left side of the unit to gain access to your water reservoir. -
Page 8: Maxxair Trouble Shooting Guide
Reduce the water flow with the water control valve located on the front of the unit. Note: Close the valve all the way – then open 1 ¼ turns. (MaxxAir units usually operate at peak performance at 1 ¼ turns). Damage to polyethylene housing. Note: Repair as necessary. -
Page 9: Storage
Remove pads as described above in 7.2 and rinse pads clean with fresh water. Dry cooling pads in sunlight. Drain water reservoir completely and wipe dry. Replace dry cooling pads. Replace top angle bar to hold pads in place. Store MaxxAir in dry, clean area and cover to prevent dust build up to have unit ready for the next hot season. -
Page 10: Warranty
10.0 Warranty LIMITED WARRANTY Ventamatic, Ltd. extends this warranty to the original retail purchaser of this fan against defects in materials and workmanship for a period of one (1) year from the date of purchase. There is no warranty for defects caused by abuse. Repairs or replacement parts supplied under this warranty are warranted only for the period of this warranty: that is one year from the date of the original retail purchase of this fan.
