- Page 1 INSTRUCTION MANUAL 36V Lithium-Ion cordless lawn mower Model # PS76215A Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
26.4 x17.3 x 11.8 inches Weight: 30 lb. Thank you for purchasing PowerSmart products. Please register online at www. Amerisuninc.com. The information will allow us to track your warranty and update on your unit. Important: Our company does not provide email or personal information to any third party for any reason. -
Page 4: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your lawn mower works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. WARNING: This symbol indicates important safety instructions. - Page 5 Carefully read all instructions on the mower and in the manual before attempting to assemble and operate the mower. Keep this manual in a safe place for future reference, and consult it regularly. Become familiar with all controls and their proper operation. Know how to stop the mower and how to disengage the power in an emergency.
- Page 6 BATTERY & CHARGER CAUTION: USE ONLY POWERSMART APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER. USE WITH POWERSMART 36V BATTERY.
- Page 7 1. Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury. 2.
-
Page 8: Symbols
• DO NOT ABUSE THE CHARGE CORD. Never carry the charger by the cord. Do not disconnect the charger from the outlet or from the mower by pulling the charger cord. • Do not use a damaged charger. Replace the charger cords or the charger immediately. •... - Page 9 Volts Amperes Hertz Watts Hours Precautions that involve your safety. To reduce the risk of injury, user must read and understand user’s manual before using this product. Wear eye and head protection when operating this equipment. Do not expose machine to rain or wet conditions. Pay attention that bystanders are not injured through foreign objects thrown from the mower.
- Page 10 WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage.
-
Page 11: Knowing Your Lawn Mower

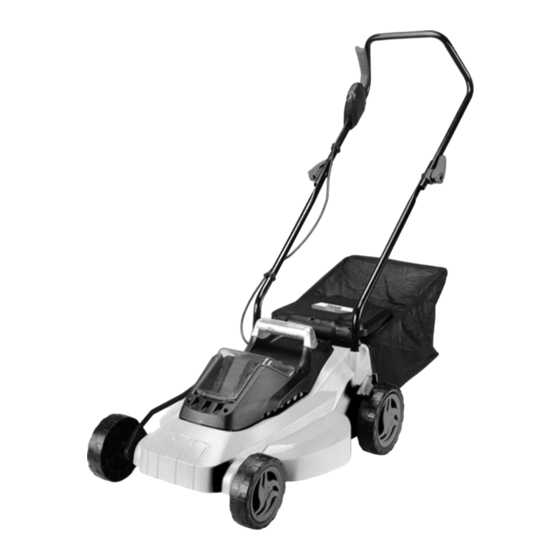

KNOWING YOUR LAWN MOWER Deck Front wheel Rear wheel Height adjustment lever Lower handle Upper handle Switch level Switch button Battery door Grass collector Cam lock Unpacking Unpack the lawn mower and all its parts, and compare against the list below. Do not discard the carton or any packaging materials. -
Page 12: Assembly Instruction
If any parts are damaged or missing do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury. WARNING Do not attempt to modify this product or create accessories not recommended for use with this product. - Page 13 Now push the upper handle bar over the lower bar. Install the handles together, using the bolts and cam lock supplied. then tighten the upper handle with the cam locks on both sides. Then attach the power cable to the handle bar using the cable clips. Fig.2 Installing the grass collector Lift the rear chute cover (A) with one handle.
-
Page 14: Operating Instruction
Remove battery pack from the product. OPERATING INSTRUCTION WARNING: Read and thoroughly understand all instructions and safety information before operating this lawn mower. Failure to do so may cause serious injury or death. Do not allow anyone to operate this lawn mower who has not read this manual. a lawn mower can be dangerous if assembled or used improperly. - Page 15 WARNING: The operation of any mower can result in foreign objects being thrown into the eyes, which can cause severe eye damage. Always wear safety glasses while operating the mower and while performing any adjustments or repairs. WARNING: Ensure that other people and pets remain at least 50’(15 m) away when the mower is in use. INSPECT THE CUTTING AREA.
- Page 16 Do not mow a slope that has an angle of greater than 15°, as determined using the slope gauge. Do not mow wet or damp grass. Unstable footing can cause slipping. Fig.12 WARNING: Do not mow a slope that has an angle of greater than 15° (a rise of approximately 2 1/2’ [0.75 m] every 10’...
- Page 17 NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section. Verify that the lawn is free of stones, sticks, wires, and other objects that could damage the blades or the motor.
-
Page 18: Maintenance
MAINTENANCE REPLACING THE CUTTING BLADE WARNING: Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. ALWAYS remove the key when servicing or transporting the mower. Use only a POWER SMART replacement blade. - Page 19 To install a new battery: Remove the key. Carefully and remove the battery pack. Install the new battery pack. Take the old battery pack to a recycling center that accepts lead acid/lithium ion batteries. Never dispose of battery in fire or regular household trash. CLEANING THE MOWER WARNING: In order to reduce the risk of electric shock, do not expose the mower to water.
-
Page 20: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The batteries used in this mower's battery pack contain the following toxic and corrosive material: LITHIUM-ION. WARNING: Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency for information and specific instructions. - Page 21 TROUBLE SHOOTING The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. PROBLEMS POSSIBLE CAUSES SOLUTION The battery is not charged Charge the battery. The mower does not start. The switch is defective. Replace the switch(call the toll free helpline, at1-800-791-9458) Grass jammed at blade.
- Page 23 Item Stock# Description Item Stock# Description PS76215A-034 Bolt(M10X23) PS76215A-001 Switch box assembly PS76215A-035 Torsional spring PS76215A-002 Cable clip PS76215A-036 Mound layer PS76215A-003 Lower right handle PS76215A-037 Screw ST5x20 PS76215A-004 Bolt(M8x50) PS76215A-038 Front wheel axle PS76215A-005 Lower left handle PS76215A-039 Torsional spring...
- Page 24 Item Stock# Description Upper handle Trigger spring Trigger Button spring Switch button PS76215A- Top cover of switch box Screw (ST4x20) Switch box assembly Screw (ST4x16) Micro switch Screw (ST4X14) mound layer Down cover of switch box Power cord...
- Page 25 Item Stock# Description Fixed block Contact chip Baffle Pressing plate Button Spring Pressing plate Micro switch PS76215A-050 bolt upper cover Controller assembly Upper cover Left handle cover Upper handle cover Right handle cover Screw(ST4x14) Transparent cover Pressing plate Screw(ST3x10)
- Page 26 TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
