Philips 107H62 Electronic User's Manual

Computer monitor
Hide thumbs Also See for 107H62:
Table of Contents

Advertisement

Quick Links

Download this manual

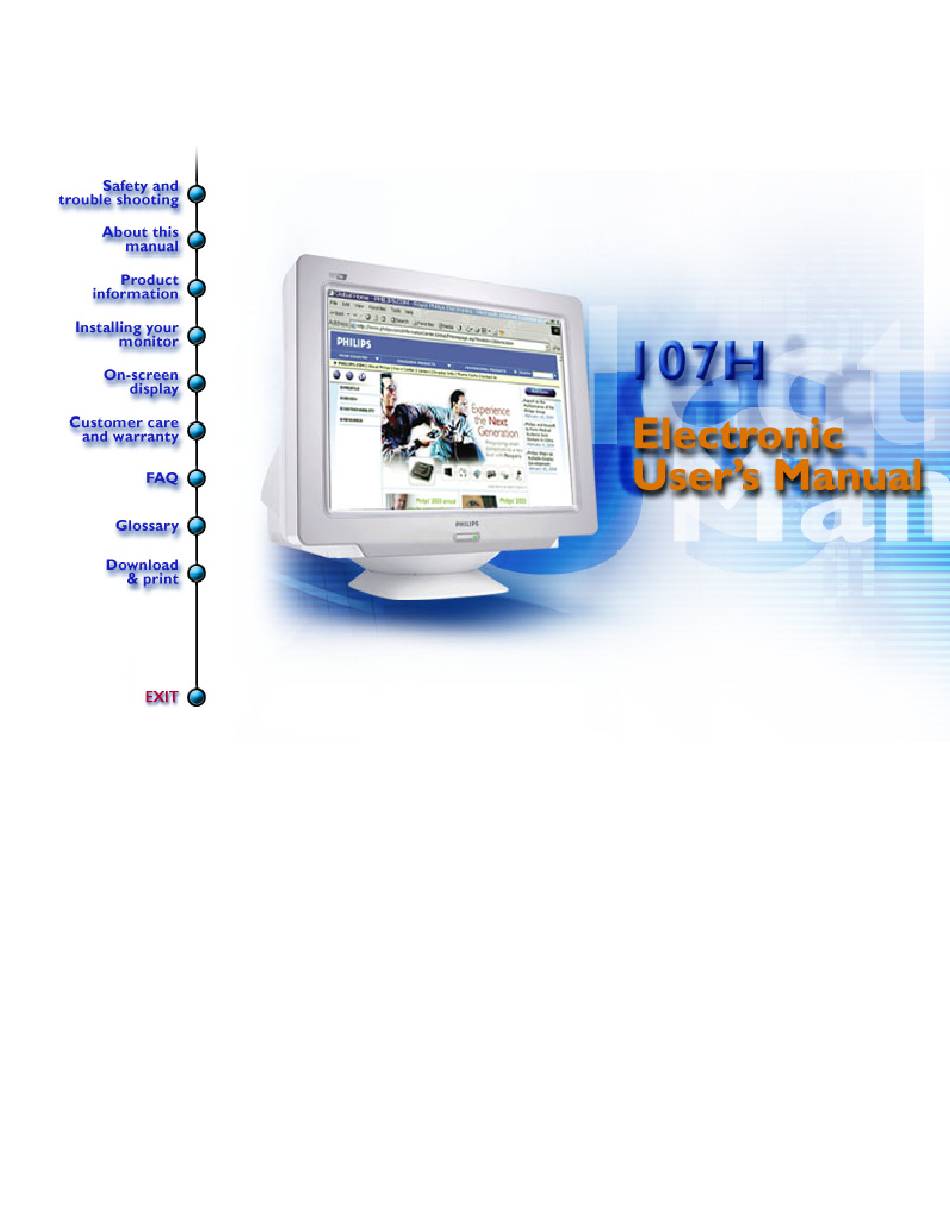

electronic user's manual
file:///D|/EDFU/crt_17_6/edoc/english/107H/manual.html2005-04-08 ¤W¤È 11:25:51

Advertisement

Table of Contents
loading

Related Manuals for Philips 107H62

Summary of Contents for Philips 107H62

  • Page 1 electronic user's manual file:///D|/EDFU/crt_17_6/edoc/english/107H/manual.html2005-04-08 ¤W¤È 11:25:51...

  • Page 2: Safety And Troubleshooting Information

    Safety & Troubleshooting Safety and Troubleshooting Information Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information Safety precautions and maintenance WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.
  • Page 3 Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the monitor's features, setup, operation and all other information, which is the same exact information described in our printed version.

  • Page 4: Notational Descriptions

    About This Electronic User's Manual Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the monitor. This is included with this product. RETURN TO TOP OF THE PAGE Notational Descriptions The following subsections describe notational conventions used in this document.
  • Page 5 About This Electronic User's Manual ©2005 Koninklijke Philips Electronics N.V. All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V. file:///D|/EDFU/crt_17_6/edoc/english/107H/ABOUT/ABOUT.HTM (3 of 3)2005-04-08 ¤W¤È 11:25:55...

  • Page 6: Product Information

    RETURN TO TOP OF THE PAGE Lead-free product Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment. Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.

  • Page 7: White Color Temperature

    107H Product Information you can be confident that your display device does not harm the environment. Technical Specifications* • Size and deflection 17 inch / 41 cm ; 90° deflection angle • Dot pitch 0.25 mm • Horizontal pitch 0.21 mm Shadow mask, real flat, high contrast, anti-glare, anti-static, •...

  • Page 8: Preset Modes

    Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 9 107H Product Information sRGB and press OK again. Exit this OSD. After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K.
  • Page 10 107H Product Information Physical Specifications 15.6" x 15.1" x 16.7" / 397 x 383 x 424 mm (including base) • Dimensions 15.6" x 13.1" x 16.7" / 397 x 333 x 424 mm (excluding base) • Weight 15.0 kg 100-240 VAC, 60-50Hz •...
  • Page 11 107H Product Information Assignment Assignment Red video input +5V DDC supply Green video input Logic ground Identical output - connected Blue video input to pin 10 Identical output - connected Serial data line (SDA) to pin 10 Ground H. Sync / H+V Red video ground V.

  • Page 12: Installing Your Monitor

    Installing your Monitor Installing your Monitor Front View • Rear View Front View Power button switches your monitor on. OK button which when pressed will take you to the OSD controls Contrast hotkey. When the "-" button is pressed, the adjustment controls for the CONTRAST will show up.

  • Page 13: Rear View

    Installing your Monitor Brightness hotkey. When the "+" button is pressed, the adjustment controls for BRIGHTNESS will show up. "-" and "+" buttons, are used for adjusting the OSD of your monitor. High Bright hot key delivers 4 suitable brightness instantly for text, internet, game and multimedia.
  • Page 14 Installing your Monitor 1. Power in - attach power cable here. 2. Video In - this is a cable which is already attached to your monitor. Connect the other end of the cable to your PC. RETURN TO TOP OF THE PAGE file:///D|/EDFU/crt_17_6/edoc/english/install_5/INSTALL.htm (3 of 3)2005-04-08 ¤W¤È...

  • Page 15: Description Of The On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips monitors which allows an end-user to adjust screen performance of monitors directly through an on-screen instruction window. The user interface provides user- friendliness and ease-of-use when operating the monitor.
  • Page 16 On-Screen Display RETURN TO TOP OF THE PAGE The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments. Your monitor may not include all the items in the OSD tree shown below.
  • Page 17 On-Screen Display RETURN TO TOP OF THE PAGE file:///D|/EDFU/crt_17_6/edoc/english/OSD_2/OSDDESC.HTM (3 of 4)2005-04-08 ¤W¤È 11:25:58...
  • Page 18 On-Screen Display file:///D|/EDFU/crt_17_6/edoc/english/OSD_2/OSDDESC.HTM (4 of 4)2005-04-08 ¤W¤È 11:25:58...

  • Page 19: Customer Care And Warranty

    Customer Care and Warranty Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED: WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland •...

  • Page 20: Frequently Asked Questions

    PC9x (97, 98, or 99) System Design Guide and passes stringent WHQL tests. What models are Mac compatible? All listed Philips monitors are Mac compatible. BUT, you may need an adapter to connect the monitor to your Mac system. Please contact your dealer/reseller for details.
  • Page 21 Frequently Asked Questions TCO95: Further toughened TCO92 rules. TCO99: Delineated even more severe standards and test procedures than TCO95. TCO'03: Same as TCO99 standard + Testing uncertainty. Safety: MPRII: No requirement. TCO92/95/99/03: All set requirements. Energy Saving: MPRII: No requirement. TCO92: Standby mode <...
  • Page 22 Go to 'My Computer' and select 'Control Panel' followed by "Monitor Control". Select "All default selection" and choose your Philips monitor model from the default driver list. Plug and Play will automatically enable the EPA tick box for you. In DOS or Windows 3.1, you must first make sure your PC supports power saving.
  • Page 23 Simply press OK button then select "Reset to factory settings" to restore all settings. 12. What is LightFrame ? LightFrame is a Philips technology breakthrough which offers a unique and revolutionary solution for boosting a monitor 's brightness and sharpness. With LightFrame...
  • Page 24 15. Will anyone else have this? LightFrame was invented, developed and patented by Philips. It is a unique feature that you will find exclusively in Philips monitors. 16. Will LightFrame shorten the life of a monitor? No.
  • Page 25 Frequently Asked Questions Only a Philips driver can determine if your monitor is equipped with LightFrame ; a generic Windows driver cannot. Install the special Philips driver that came with your monitor. If the warning continues to flash after your Philips driver is installed, ignore the message. LightFrame will function properly.
  • Page 26 Frequently Asked Questions 21. What is Philips monitors' solution for audio? Not all users need multimedia capabilities. To give users freedom of choice, Philips provides an optional Multimedia Base (type number: 6G3B10). The Multimedia Base replaces the easily removable standard pedestal of the monitor.
  • Page 27 Auto Calibrate regularly readjusts color temperature and luminance to their original values. 27. How does Philips Auto Calibrate feature benefit me? With Auto Calibrate, it takes a monitor's luminance 33 percent longer to deteriorate to the 50 percent level that marks the end of a display device's useful life.
  • Page 28 Calibration should be performed after the monitor is warmed up. Auto Calibration takes place when a monitor receives a signal indicating an imminent switch to its sleep mode/stand-by mode. 30. Which models of Philips monitors are equipped with Auto Calibrate feature? Auto Calibrate is currently available in the new 202P, 201B and 109P.
  • Page 29 This is an intentional design and is an industry standard, not just for Philips monitors. Please be aware that not all models in the Philips range has this manual degauss function. Some models are built with an auto degauss feature which automatically degausses the monitor when it is switched on.
  • Page 30 Frequently Asked Questions 37. How do I adjust the picture on the screen? Please perform the following to correct the picture image: Reset your monitor via the OSD menu Adjust the Horz (width) and/or Vert size (height) in the OSD Change monitor timing to work at the recommended resolution 38.
  • Page 31 Video card could be defective (try the monitor with another computer) 40. I have noticed two thin horizontal lines on the screen of my Philips monitor. Is this normal? This phenomenon can occur with Philips 107P, 109P and 202P monitors and is normal. Your monitor is using an Aperture Grille, which consists of fine vertical wires to align the electron beams with the phosphors on the screen.
  • Page 32 45. Why does the picture disappear after I press the on/off button quickly? This is a unique Philips feature designed to preserve the life of your monitor. Please allow 5 seconds between powering off and on your monitor, your picture will then be restored.
  • Page 33 W X Y Z Autoscan A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically horizontal and vertical frequencies of input signals with those of the installed video card. An autoscan monitor can thus operate with a wide range of video cards. MultiSync, a registered trademark of NEC, provides a similar function.

  • Page 34: Color Temperature

    A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source. Most Philips monitors offer the possibility of setting the color temperature to any desired value. Contrast The ratio between the brightness of the brightest and darkest parts of a picture.
  • Page 35 Glossary a picture is set by the brightness of the unexcited phosphor, which is governed by the degree with which ambient light is reflected. Contrast is therefore reduced in conditions of high ambient light levels. Black Matrix tubes reflect less ambient light so exhibit higher contrast than other tubes. Convergence error Bean misalignment causing one or more of the three beams passing through the wrong aperture in the shadow mask and striking a phosphor dot in the wrong triad.
  • Page 36 Glossary Cathode-ray tube - the general term for all tubes in which one or more electron beams emitted by a cathode are periodically scanned across a phosphor screen by means of deflection circuitry. A special form of the cathode-ray tube is the TV and monitor picture tube. RETURN TO TOP OF THE PAGE DDC (Display Data Channel) DDC is a communication channel for displays and computers.

  • Page 37: Digital Control

    This is a very advanced feature that allows the user to switch to any required mode at any instant without having to spend time readjusting the picture. It is currently available in most Philips monitors. Dot pitch The shortest distance between two phosphor dots of the same color on the screen.
  • Page 38 Glossary Dot rate Frequency in MHz of the dot clock. It is a measure of the speed with which data is transferred between the video card and subsequent processing circuitry. Also known as video dot rate. RETURN TO TOP OF THE PAGE Electromagnetic radiation standards International standards set to limit electromagnetic emissions from monitors.
  • Page 39 Glossary two important standards both derived from regulations originally laid down by Swedish authorities. MPR-II The standard originally proposed by the Swedish National Board of Measurement and Testing. It set maximum levels of electromagnetic radiation emitted by monitors, and has now been adopted as a world standard.
  • Page 40 Glossary problem can, however, be eliminated by increasing the refresh rate (number of frames/second) of the monitor to a value above around 70 Hz. Sensitivity to flicker appears to diminish with increasing age. RETURN TO TOP OF THE PAGE Hertz The unit of frequency named after the physicist Heinrich Hertz (1857-1894).
  • Page 41 Glossary INF file (Information File) Information (INF) files store information in a specific format. The set-up functions retrieve information from the INF file to use when performing installation operations. Examples of the type of information stored in an INF file include INI and registry changes, file names, and locations of the source files on source media.

  • Page 42: Line Frequency

    Glossary Linearity The degree to measure the actual location of a pixel on the screen corresponds with its intended location. ( see figure ) Line frequency See Horizontal scanning frequency. Low-emission monitor A monitor that complies with international standards on radiation. See Electromagnetic radiation standards.
  • Page 43 Glossary Alternating fields generated by the deflection yoke. These are subject to increasing attention, notably by governing authorities, the trade and the press. Although there is no scientific evidence that monitor emissions are harmful, much effort has gone into reducing emissions on the principle of better safe than sorry.
  • Page 44 Glossary Non-interlaced See Interlaced/non-interlaced. RETURN TO TOP OF THE PAGE OSD (On Screen Display) The feature that allows an end user to adjust screen performance and parameters of monitors directly through an on-screen instruction window. See CustoMax in CrystalClear section. Overscan The practice in which areas without useful video information are scanned outside the visible screen area in order to make maximum use of the screen for display of active video information.
  • Page 45 Glossary Parallelogram Distortion See Geometric distortion. Phosphor Generic name for the class of substances that exhibit luminescence. To produce a picture on screen, phosphors are deposited on the inner surface of the picture-tube screen and excited into luminescence by the electron beam. Typical examples of phosphors are P22 medium short- persistence phosphor and EBU high-color-saturation phosphor.
  • Page 46 Glossary Plug-and-Play See DDC. See USB section. RETURN TO TOP OF THE PAGE Raster The area on screen that electron beam can reach. Refresh rate See Vertical scanning frequency. Resolution The number of pixels that can be displayed on the screen. The resolution is specified as the number of pixels in a line multiplied by the number of horizontal lines.
  • Page 47 Glossary Screen coatings Anti-Static coatings Due to bombardment by beam electrons, monitor screens become electrically charged when in use. Electrically charged screens surfaces can attract dust particles. An Anti-Static coating is a conductive coating deposited on the screen (or on a glass panel immediately in front of the screen) that conducts away the charge and prevents screen dust build-up.

  • Page 48: Self-Test Function

    Glossary ARAS is one of the most effective anti-reflection/anti-static screen treatments currently available. It is composed of a multi-layer structure of transparent dielectric material that suppresses specular reflections by broadband interference effects at the screen surface. Anti-static properties are provided by a single conductive layer within the multi-layer structure. With ARAS, the intensity of reflected light is reduced from around 4.5% of the incident light (the reflectivity of uncoated screens) to less than 0.5%.
  • Page 49 Glossary common: SOG (Synchronization On Green) A properly functioning color monitor requires five kinds of signals: horizontal sync pulse, vertical sync pulse, red color signal, green color signal and blue color signal. Signals from a PC are transmitted to a monitor using one of three methods: 1.

  • Page 50: Tilt Function

    Glossary See Electromagnetic radiation standards. Tilt function See rotation function. Trapezoid distortion See Geometrical distortion. TTL signal A TTL (Transistor-transistor-logic) signal is a digital signal level for controlling the screen colors. With TTL driving, the red, green and blue signals can only be switched on or off or provided with an intensity signal.
  • Page 51 Glossary USB eliminates "case angst" -- the fear of removing the computer case to install add-on peripherals. And USB also eliminates adjustment of complicated IRQ settings when installing new peripherals. USB does away with "port gridlock." Without USB, PCs are normally limited to one printer, two Com port devices (usually a mouse and modem), one Enhanced Parallel Port add-on (scanner or video camera, for example) and a joystick.
  • Page 52 Glossary for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. Downstream The direction of data flow from the host or away from the host. A downstream port is the port on a hub electrically farthest from the host that generates downstream data traffic from the hub. Downstream ports receive upstream data traffic.
  • Page 53 Glossary Vertical dot pitch See Dot pitch. Vertical scanning frequency Expressed in Hz, this is the number of fields written to the screen every second in interlaced mode. In non-interlaced mode vertical scanning frequency is the number of frames (complete pictures) written to the screen every second (also known as refresh rate).
  • Page 54 Glossary A card equipped with a character or graphic generator and video memory, which maps to the screen. A microprocessor scans video memory and translates bit information from the computer into displayable video signals for the monitor. These cards comply with various standards that determine the nature and quality of the display.

  • Page 55: Download And Print

    Download and Print Download and Print This page provides an option to read the manual in .pdf format. PDF files can be downloaded into your hard disk, then viewed and printed with Acrobat Reader or through your browser. If you do not have Adobe® Acrobat Reader installed, click on the link to install the application. Adobe®...
  • Page 56 Download and Print 107T.pdf 107Q.pdf file:///D|/EDFU/crt_17_6/edoc/english/DOWNLOAD/DOWNLOAD.HTM (2 of 2)2005-04-08 ¤W¤È 11:26:01...

  • Page 57: Troubleshooting

    Troubleshooting Troubleshooting Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other Related Information Common Problems Having trouble? Something not working? Before calling for help, try these suggestions. Having this Check these items problem? Make sure the Power cable is plugged into the power outlet and back of the monitor.
  • Page 58 Troubleshooting If you are using a non-VESA-DDC standard video card, No color or intermittent turn the DDC1 / 2B feature Off. color The picture may need degaussing. Remove any nearby magnetic objects. Face the monitor toward the East for the best picture Color appears blotchy quality.
  • Page 59 Troubleshooting For further assistance, refer to the Consumer Information Centers list to contact your local Philips distributor. RETURN TO TOP OF THE PAGE file:///D|/EDFU/crt_17_6/edoc/english/107H/SAFETY/saf_troub.htm (3 of 3)2005-04-08 ¤W¤È 11:26:09...

  • Page 60: Regulatory Information

    Regulatory Information Regulatory Information Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life Disposal Safety Precautions and Maintenance • Troubleshooting • Other Related Information Ergonomie Hinweis (nur Deutschland) Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden durch Röntgenstrahlen"...
  • Page 61 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.

  • Page 62: Other Related Information

    Other Related Information Other Related Information Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Information for Users in the U. S. • Information for Users Outside the U.S Information for Users in the U. S. For units set at 115 V : Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.
  • Page 63 The OSD Controls The OSD Controls Description of the On-Screen Display • The OSD Tree The OSD Controls : Brightness (HotKey) • Contrast (HotKey) • Language • Zoom • Adjust Horizontal • Adjust Vertical • Adjust Shape • Adjust Color •...
  • Page 64 The OSD Controls To adjust your screen's contrast, follow the steps bellow. Contrast is the difference between the light and dark areas on the screen. A 100% contrast is recommended. 1) Press the button on the monitor. The CONTRAST window appears. 2) Press the button to adjust the contrast.
  • Page 65 The OSD Controls 3) Press the button until the desired language is highlighted. 4) Press the button to confirm your selection and return to MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted. RETURN TO TOP OF THE PAGE file:///D|/EDFU/crt_17_6/edoc/english/OSD_2/osd_cont.htm (3 of 24)2005-04-08 ¤W¤È 11:26:24...
  • Page 66 The OSD Controls ZOOM ZOOM increases or decreases the size of the images on your screen. To adjust the ZOOM follow the steps below. 1) Press the button on the monitor. The MAIN CONTROLS window appears. 2) Press the button until ZOOM is highlighted. 3) Press the button.
  • Page 67 The OSD Controls 5) Press the button to confirm your selection and Press again return to the MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted. RETURN TO TOP OF THE PAGE ADJUST HORIZONTAL ADJUST POSITION under ADJUST HORIZONTAL shifts the image on your screen either to the left or right.
  • Page 68 The OSD Controls 4) Press the button to move the image to the left or right. 5) When the position is adjusted, press the button to confirm. Press the to highlight SIZE, press to confirm. 6) To adjust the horizontal size, press the button.
  • Page 69 The OSD Controls ADJUST VERTICAL ADJUST POSITION under ADJUST VERTICAL shifts the image on your screen either up or down. Use this feature if your image does not appear centered. ADJUST SIZE under ADJUST VERTICAL expands or controls the image on your screen, pushing it out toward the top or bottom or pulling it in toward the center.
  • Page 70 The OSD Controls 4) Press the button to move the image up or down. 5) When the position is adjusted, press the button. Press again to return to MAIN CONTROLS window, or press the to highlight SIZE and to confirm. 6) To adjust the vertical size, press the button.
  • Page 71 The OSD Controls RETURN TO TOP OF THE PAGE ADJUST SHAPE ADJUST SIDE CURVE ADJUST SIDE CURVE under ADJUST SHAPE allows you to adjust two of the five preset options. These two options are PINCUSHION and BALANCED pincushion. Note: use these features only when the picture is not square.
  • Page 72 The OSD Controls 4) Press the button. The SIDE CURVE window appears. PINCUSHION should be highlighted. Press to confirm. 5) To adjust the pincushion, press the button,press the to confirm. 6) When the pincushion is adjusted, press the button to highlight BALANCED. Press confirm.
  • Page 73 The OSD Controls 7) To adjust the balanced pincushion, press the button.Press to confirm. 8) When the balanced pincushion is adjusted, press the button to return to the ADJUST SHAPE window. BACK TO MAIN WINDOWS will be highlighted. 9) Press the button to return to the MAIN CONTROLS window, or press the button until ADJUST SIDE ANGLES is highlighted.
  • Page 74 The OSD Controls 3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted. 4) Press the button to highlight ADJUST SIDE ANGLES. 5) Press the button. The SIDE ANGLES window appears. TRAPEZOID should be highlighted, press to confirm.
  • Page 75 The OSD Controls 6) To adjust the trapezoid, press the button. 7) When the trapezoid is adjusted, press the button to confirm. Then to highlight PARALLELOGRAM, press to confirm. 8) To adjust the parallelogram, highlight parallelogram then to confirm. Press the button to adjust..
  • Page 76 The OSD Controls 10) Press the button to return to the MAIN CONTROLS window, or press the button until ROTATE IMAGE is highlighted. ROTATE IMAGE (Not available in all models) ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of the five preset options. These two options are PINCUSHION and BALANCED pincushion.

  • Page 77: Adjust Color

    The OSD Controls 5) Press the button. The ROTATE IMAGE window appears. ROTATE should be highlighted. 6) To adjust the rotation, press the button. 7) When the rotation is adjusted, press the button to confirm. Press to return to the ADJUST SHAPE window.
  • Page 78 The OSD Controls projects such as desktop publishing, viewing a DVD from your DVD player or pictures on the World Wide Web, and playing video games. The third option is for PHOTO RETOUCH, which is for working with pictures you have imported into your computer and want to alter. When you select one of these options, the monitor automatically adjusts itself to that option.
  • Page 79 The OSD Controls 4) Press the button to highlight 9300K for GENERAL USE, 6500K for IMAGE MANAGEMENT, 5500K for PHOTO RETOUCH, or USER PRESET. 5) Once you have highlighted GENERAL USE, IMAGE MANAGEMENT, or PHOTO RETOUCH, press the button to confirm you selection. Press again to return to the MAIN CONTROLS window.

  • Page 80: Reset To Factory Settings

    The OSD Controls confirm. Press button to adjust the color red. 6b) When finished with RED, press to confirm. Press the button to highlight GREEN. press to confirm.Next, press the button to adjust the color green. 6c) When finished GREEN, press to confirm.Then, press button to highlight BLUE.Press to confirm.
  • Page 81 The OSD Controls 3) Press the button. The RESET TO FACTORY SETTINGS window appears. 4) Press the button to select YES or NO. NO is the default. YES returns all settings to their original factory adjustments. 5) Press the button to confirm your selection and press again return to the MAIN CONTROLS window.
  • Page 82 The OSD Controls DEGAUSS EXTRA CONTROLS is a set of three features, including DEGAUSS. Degaussing removes electromagnetic build up that may distort the color on your screen. 1) Press the button on the monitor. The MAIN CONTROLS window appears. 2) Press the button until EXTRA CONTROLS is highlighted.
  • Page 83 The OSD Controls 5) To degauss your screen, press the button. Your screen will be degaussed, then the MAIN CONTROLS window will reappear. CLOSE MAIN CONTROLS will be highlighted. ADJUST MOIRE (Not available in all models) EXTRA CONTROLS is a set of three features, including ADJUST MOIRE. Moire is a fringe pattern arising from the interference between two superimposed line patterns.
  • Page 84 The OSD Controls 3) Press the button. The EXTRA CONTROLS window appears. ADJUST MOIRE will be highlighted. 4) Press the button. The ADJUST MOIRE window appears. HORIZONTAL will be highlighted, press to confirm. file:///D|/EDFU/crt_17_6/edoc/english/OSD_2/osd_cont.htm (22 of 24)2005-04-08 ¤W¤È 11:26:24...
  • Page 85 The OSD Controls 5) To adjust the horizontal moire, press the button. 6) When the horizontal moire is adjusted, press to confirm. Press the button to highlight VERTICAL. 7) To adjust the vertical moire, press to confirm. Then press button to adjust. 8) When the vertical moire is adjusted, press the to confirm.
  • Page 86 The OSD Controls RETURN TO TOP OF THE PAGE file:///D|/EDFU/crt_17_6/edoc/english/OSD_2/osd_cont.htm (24 of 24)2005-04-08 ¤W¤È 11:26:24...
  • Page 87 Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective.Philips aims at a swap within 48 hours of your call being received.
  • Page 88 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 89 The full address to which the faulty monitor has to be collected and the swap model should be delivered. Philips' customer help desks are located worldwide. Click here to access the F1rst Choice Contact Information. Or you can reach us via: Website: http://www.philips.com/support...
  • Page 90 Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 91 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Philips Service and Consumer Information Centers.

  • Page 92: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 93 International Guarantee http://www.philips.com Website: file:///D|/EDFU/crt_17_6/edoc/english/WARRANTY/WAR_INTL.HTM (2 of 2)2005-04-08 ¤W¤È 11:26:29...

  • Page 94: Who Is Covered

    Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase.

  • Page 95: What Is Excluded

    Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 96 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 97 United States Guarantee This warranty gives you specific legal rights. You may have other rights which vary from state/ province to state/province. Before contacting Philips, please prepare the following details so we can solve your problem quickly. Philips type number...

  • Page 98: F1Rst Choice Contact Information

    F1rst Choice Contact Information F1rst Choice Contact Information Country Telephone number Tariff Austria 01 546 575 603 Local call tariff Belgium 070 253 010 0.17 Cyprus 800 92256 Free of Charge Denmark 3525 8761 Local call tariff Finland 09 2290 1908 Local call tariff France 08 9165 0006...

  • Page 99: Consumer Information Centers

    Consumer Information Centers Consumer Information Centers Antilles • Argentina • Australia • Bangladesh • Belarus • Brasil • Bulgaria • Canada • Chile • China • Colombia • Croatia • Czech Republic • Dubai • Estonia • Hong Kong • Hungary •...
  • Page 100 Consumer Information Centers CROATIA Renoprom d.o.o. Mlinska 5, Strmec HR - 41430 Samobor +385 1 333 0974 ESTONIA FUJITSU SERVICES OU Akadeemia tee 21G EE-12618 Tallinn Tel: +372 6519900 www.ee.invia.fujitsu.com HUNGARY Serware Szerviz Vizimolnár u. 2-4 HU - 1031 Budapest Tel: +36 1 2426331 Email: inbox@serware.hu www.serware.hu...
  • Page 101 Consumer Information Centers ROMANIA Blue Ridge Int'l Computers SRL 115, Mihai Eminescu St., Sector 2 RO - 020074 Bucharest Tel.:+40 21 2101969 SERBIA&MONTENEGRO Tehnicom Service d.o.o. Bulevar Vojvode Misica 37B YU – 11000 Belgrade Tel: +381 11 3060 886 SLOVAKIA Datalan Servisne Stredisko Puchovska 8 SK - 831 06 Bratislava...
  • Page 102 Comel Shevchenko street 32 UA - 49030 Dnepropetrovsk Tel: +380 562320045 www.csp-comel.com Latin America ANTILLES Philips Antillana N.V.Kaminda A.J.E. Kusters 4 Zeelandia, P.O. box 3523-3051 Willemstad, Curacao Phone: (09)-4612799 Fax : (09)-4612772 ARGENTINA Vedia 3892 Capital Federal CP:1430 Buenos Aires Phone/Fax: (011)-4544 2047 file:///D|/EDFU/crt_17_6/edoc/english/WARRANTY/WARCIC.HTM (4 of 12)2005-04-08 ¤W¤È...
  • Page 103 Consumer Information Centers BRASIL Philips da Amazonia Ind. Elet.Ltda. Rua Verbo Divino, 1400 -Sao Paulo-SP CEP-04719-002 -São Paulo & 0800-701-0203 - Other Regions without São Paulo City. Phone: 11 2121 0203 CHILE Philips Chilena S.A. Avenida Santa Maria 0760 P.O. box 2687Santiago de Chile...
