Summary of Contents for POWERSHADES RF REPEATER 2.0

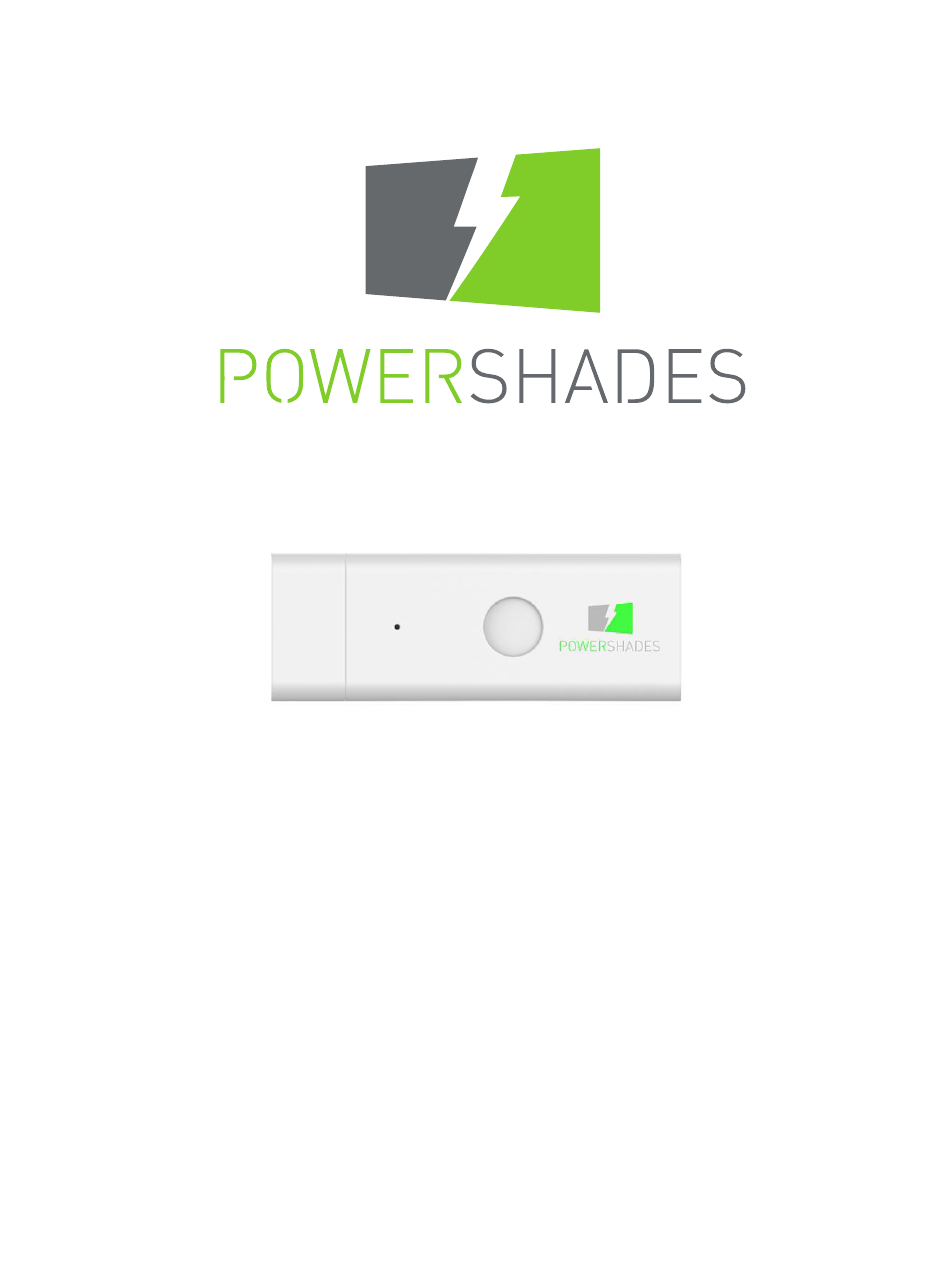

- Page 1 POWERSHADES RF REPEATER 2.0 POWERSHADES RF REPEATER 2.0 Powershades RF Repeater 2.0...
- Page 2 Contents Disclaimer ..........................Error! Bookmark not defined. PowerShades RF Repeater 2.0 ............................3 Electrical Specification ................................ 3 Hardware Details................................. 3 Operation Specification ..............................3 Basic Operation as a Repeater ............................3 Button Actions ................................4 Factory Reset................................... 4 Firmware Update ................................5 Support....................................
- Page 3 Repeater will transmit two commands for one valid command it receives. For optimal results, we recommend placing the PowerShades RF Repeater within a radius of 30 feet from the RF shading For optimal results, we recommend placing the PowerShades RF Repeater within a radius of 30 feet from the RF shading devices, including the RF shade and the PowerShades RF Gateway.
- Page 4 14:29:53.270 W433 RX[1] 12 C1 DEADBEEF:DEADBEEF 0001 {02 02 03} Function #2 – Pair and Translate RA Wind Sensor 4. Pair PowerShades RF Remote to Outdoor shade and set upper and lower limits. Leave shade in down position. 5. Plug in RF Repeater to power source.
- Page 5 3. RF Repeater LEDs will indicate alternating blue and orange. 4. RF Repeater can now be recognized as DFU device. Target firmware can be loaded at Address 0x08004000. Support For questions or inquiries please contact Powershades Support or Development Team. Visit https://www.powershades.com/installation/ for Installation and User Guides.
