GreenTech Capess User Manual

Horizontal energy storage system

Advertisement

Quick Links

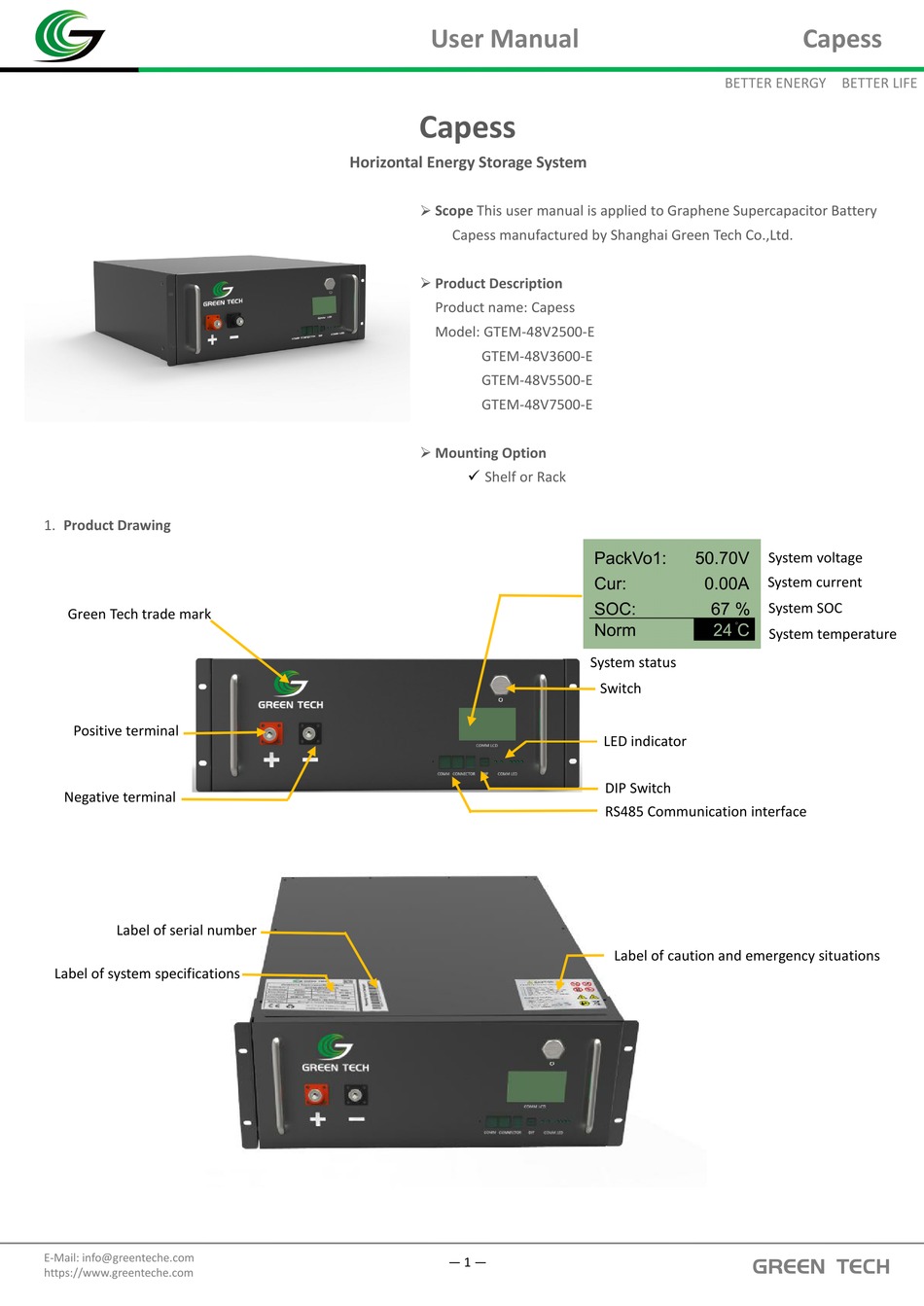

1. Product Drawing
Green Tech trade mark
Positive terminal
Negative terminal
Label of serial number
Label of system specifications
E-Mail: info@greenteche.com
https://www.greenteche.com
User Manual
Capess
Horizontal Energy Storage System
 Scope This user manual is applied to Graphene Supercapacitor Battery
Capess manufactured by Shanghai Green Tech Co.,Ltd.
 Product Description
Product name: Capess
Model: GTEM-48V2500-E
GTEM-48V3600-E
GTEM-48V5500-E
GTEM-48V7500-E
 Mounting Option
Shelf or Rack
— 1 —
BETTER ENERGY BETTER LIFE
System status
Switch
LED indicator
DIP Switch
RS485 Communication interface
Label of caution and emergency situations
GREEN TECH
Capess
System voltage
System current
System SOC
System temperature

Advertisement

loading
Need help?

Need help?

Do you have a question about the Capess and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenTech Capess

  • Page 1 User Manual Capess BETTER ENERGY BETTER LIFE Capess Horizontal Energy Storage System  Scope This user manual is applied to Graphene Supercapacitor Battery Capess manufactured by Shanghai Green Tech Co.,Ltd.  Product Description Product name: Capess Model: GTEM-48V2500-E GTEM-48V3600-E GTEM-48V5500-E GTEM-48V7500-E ...
  • Page 2 Contact your distributor Read this user manual Incomplete Check the accessories Complete Select install place Install the Capess Commissioning Normally running? Troubleshooting Finish A. Check the box to make sure not be damaged and then open the box. B. Take out the module and check all the accessories.
  • Page 3 User Manual Capess BETTER ENERGY BETTER LIFE 3. Battery power on & off operation (1) Battery power on operation Press and hold the switch until the buzzer rings and release the switch. The BMS starts the self-test until the correct voltage, current, SOC and temperature information are displayed on the screen.
  • Page 4 User Manual Capess BETTER ENERGY BETTER LIFE Table 1 Working Status Indication Mode Normal/alarm/protection Power Off Dormant Normal Flash1 In accordance with electricity Standby status. Alarm Flash1 Flash3 Normal In accordance with electricity status, Power indicating maximum LED flash2. Alarm...
  • Page 5 User Manual Capess BETTER ENERGY BETTER LIFE Table 3 LED Flashing Instruction Flash Flash1 0.25S 3.75S Flash2 0.5S 0.5S Flash3 0.5S 1.5S Flash3 3.5S 0.5S 5. Dormant Function When any of the following conditions are met, the system enters the low-power sleep mode.
  • Page 6 RS485-B Parallel Function Up to 10 sets Capess are allowed to be used in parallel; The Capess used in parallel operation must be the same batch of cases with the samelive state; Full charging prior parallel connection; E-Mail: info@greenteche.com — 6 —...
  • Page 7 The voltage difference of paralleled Capess must be ≤2V; The dimensions and specification of parallel wire must be the same diameter and length; Walk around inspection often if used in parallel,and disconnect immediately the Capess if anyone is abnormal. Parallel connect method: DIP Switch Settings Instruction When the power boxes are connected in parallel, it is necessary to set the addresses of different power box through the DIP Switch.
  • Page 8 User Manual Capess BETTER ENERGY BETTER LIFE DIP Switch position Address Instruction Main Pack Slave Pack 1 Slave Pack 2 Slave Pack 3 Slave Pack 4 Slave Pack 5 Slave Pack 6 Slave Pack 7 Slave Pack 8 Slave Pack 9...
  • Page 9 User Manual Capess BETTER ENERGY BETTER LIFE 10. Specifications Specifications Part Number GTEM-48V2500-E GTEM-48V3600-E GTEM-48V5500-E GTEM-48V7500-E Energy storage 2.5KWh 3.6KWh 5.5KWh 15KWh Capacity 54Ah 75Ah 115Ah 156Ah Nominal Voltage 48V/DC 48V/DC 48V/DC 48V/DC Maximum Charge Voltage 58.8V/DC 58.8V/DC 58.8V/DC 58.8V/DC Discharge Cut-off Voltage 39.2V/DC...
  • Page 10 User Manual Capess BETTER ENERGY BETTER LIFE 11. Inverter Connection and Setting 1) Compatible inverters a) Connect the communication cable with inverter b) Choose “Lithium Battery ” Mode c) Choose “Green Tech Battery System” d) Following the inverter installation guide set step by step...
  • Page 11 User Manual Capess BETTER ENERGY BETTER LIFE e)Choose lithium and go to next page. f) Lithium Mode set to be 12,save the setting(very important) g)Turn back to the home page,press the battery information h) Click the “Li-BMS” button I) If this Sum data page information display normal,it means...
  • Page 12 User Manual Capess BETTER ENERGY BETTER LIFE 12. Caution Place the module out of the reach of children and infants.  Do not place the module in microwave ovens or other similar appliances.  Do not remove the product label.
