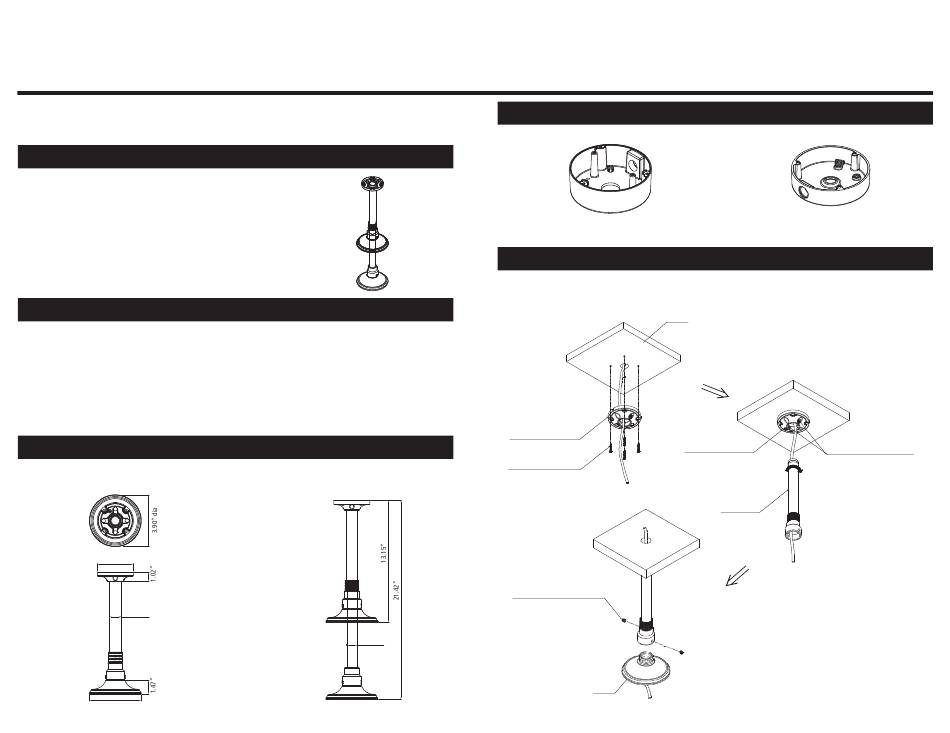

Installation Guide
INTPM / INTPMW
Pendant Mount
Compatible Model
s
• CVC5300DPVF
• CVC5845DNV, CVC5945DNV
• CVC5735DNV, CVC5835DNV, CVC5935DNV
• HT7246iHR, HT7247iHR, HT7250iHR
• HT7248FFi, HTD8FFi
• HTINTD8, HTINTD9, HTINTD10
• OINT03D1G
Package Contents
The following items are included in this package.
• INTPM
• 1 Bracket Base Adaptor
• 1 Wrench
• 4 Tapping Screws #8 x 25
Dimensions
Front View
3.90" dia
1.26" dia
5.59" dia
• 4 Hexagon Socket Screws M5 x 10
• 3 Machine Screws M4 x 15
• 3 Machine Screws M4 x 22
• 2 Machine Screws M4 x 18
Side View
1.06" dia
DWG • 516-933-4900 • dwgdistribution.com
Optional Accessories
CVCJBD
Dome Junction Box
1-1. Install mount onto the ceiling by using the screws provided.
CEILING
CEILING BRACKET BASE
TAPPING SCREW #8X25, 4EA
MACHINE SCREW SET M8X8, 2EA
FRONT
JB03TG
Large Round Junction Box
CEILING BRACKET BASE
MACHINE SCREW SET M8X8, 2EA
CEILING PIPE
Advertisement
Table of Contents
Summary of Contents for DWG INTPM
- Page 1 CEILING BRACKET BASE Dimensions CEILING BRACKET BASE MACHINE SCREW SET M8X8, 2EA TAPPING SCREW #8X25, 4EA Front View Side View CEILING PIPE 3.90” dia MACHINE SCREW SET M8X8, 2EA 1.26” dia 1.06” dia FRONT 5.59” dia DWG • 516-933-4900 • dwgdistribution.com...
- Page 2 Installation Instruction Diagram 1-2. Install INTPM onto ceiling. 2. Arrange each piece as shown in the image below. 1-3. Install CVCJBD junction box onto INTPM as shown in the image below. 3. Fasten the camera onto the mount. *Compatible models...
