Summary of Contents for infernus AP238-PS15

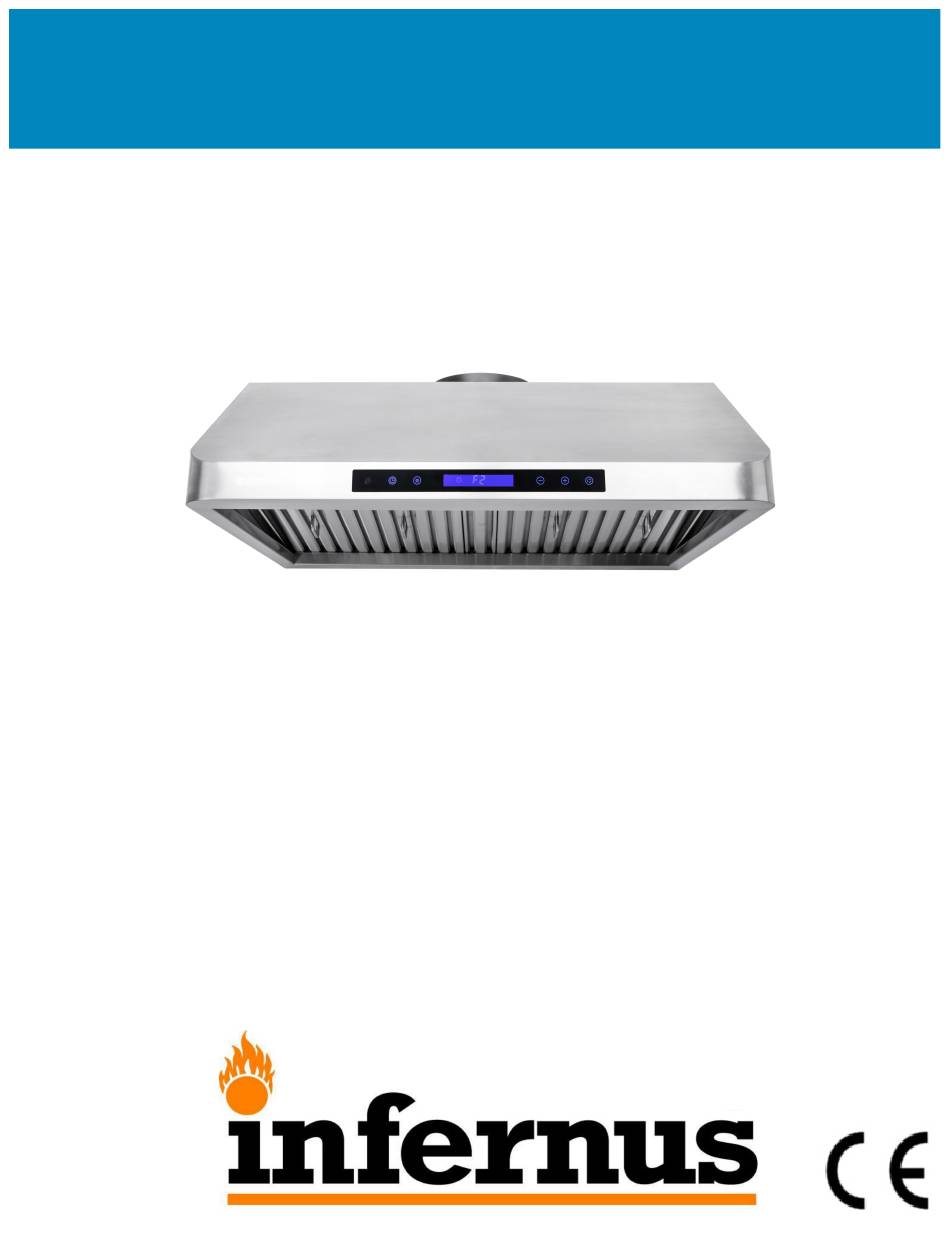

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Under Cabinet Range Hood AP238-PS15 Model Name: Available Sizes: 36”, 42”, 48”, 60” Rev.20230223...
-
Page 2: Table Of Contents
Grease Tunnel and Filters..............13 Venting Methods................14 Wiring Diagram................. 16 Range Hood Operations..............17 Troubleshooting................19 Do’s and Don’ts for Duct Venting............ 20 Bulb Replacement................20 Maintenance..................21 Warranty..................... 22 Disclaimer..................23 Contact Us..................23 2 | A Infernus range hoods P238-PS15... -
Page 3: Important Safety Notice
Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. Infernus range hoods AP238-PS15... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. Infernus range hoods 4 | AP238-PS15...
-
Page 5: Calculating Duct System Length
Double Motor Touch Control Control Type Filtration Type Stainless Steel Baffle Filters Illumination 3W LED Venting Size Top, 8 inches Round * Subject to change without notice, please contact Infernus Range Hoods for details. Infernus range hoods AP238-PS15 | 5... -
Page 6: Required Tools
Knife Drill Tape Phillips Measure Screwdriver Level Aluminum Tape PARTS SUPPLIED 6pcs NOTE: Where necessary, additional screws will be needed for installation and added support, but is not included. Please review contents before installation. Infernus range hoods 6 | AP238-PS15... -
Page 7: Dimensions
DIMENSIONS (Continued) AP238-PS15-36 8”- Ø 1” 2” 12” 9 ¾” 35 ½” 22” AP238-PS15-42 8”- Ø 1” 2” 12” 9 ¾” 41 ½” 22” Infernus range hoods AP238-PS15... - Page 8 DIMENSIONS (Continued) AP238-PS15-48 8”- Ø 1” 2” 12” 9 ¾” 47 ½” 22” AP238-PS15-60 8”- Ø 1” 2” 12” 9 ¾” 59 ½” 22” Infernus range hoods 8 | AP238-PS15...
-
Page 9: Preparation
12” of electrical cord hanging from the ceiling. Do not restore power until wiring is completed. 7. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 8. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. Infernus range hoods AP238-PS15... -
Page 10: Installation
Bottom panel of the top cabinet Bottom panel of the top cabinet Top view of range hood Top view of range hood Infernus range hoods 10 | AP238-PS15... - Page 11 Connect the range hood’s electrical wiring and check the fan motor and lights are functioning. Be alert of any electrical hazards and refer to the product label for the suitable voltage of this unit. Infernus range hoods AP238-PS15 | 11...
- Page 12 Use 8” round steel pipe to connect the exhaust on the Ensure the cylinder duct passes through, leading to hood to the ductwork above. Use aluminum foil tape to the roof cut out for exhaust connecting duct. make all joints secure and air tight. Infernus range hoods 12 | AP238-PS15...
-
Page 13: Grease Tunnel And Filters
SIDE VIEW Slide forward and into the recess towards front of hood and above the light panel. Lower filter while sliding back until it rests onto Grease Tunnel. Infernus range hoods AP238-PS15 | 13... -
Page 14: Venting Methods
Min height: 80 ¾” from bottom of duct to ground when range height to stove is 30” 36” typical Wall Vent Roof Vent * Due to different ceiling height configurations, recommended height may not be applicable. Infernus range hoods 14 | AP238-PS15... - Page 15 8” Ø Duct remote blower installations Wall Vent Cap Power Outlet Min: 85” Optional Outdoor from floor Remote Blower Roof Vent * Due to different ceiling height configurations, recommended height may not be applicable. Infernus range hoods AP238-PS15 | 15...
-
Page 16: Wiring Diagram
WIRING DIAGRAM Brown Infernus range hoods 16 | AP238-PS15... -
Page 17: Range Hood Operations
(4 times to 1 time). The automatic speed level can be manually overwritten by pressing the Increase or Decrease button and then Auto Function will reactivate after 2 minutes. The blower can ONLY be turned off MANUALLY or by activating the Power-Off Delay Timer Function. Infernus range hoods AP238-PS15... - Page 18 • Remote control sensor receives infrared (“IR”) signal from the remote control. The maximum distance for IR data transmission is about 3 meter (10 ft.) and requires direct line of sight. The transmission distance may vary depending on temperature and remote control battery condition. Infernus range hoods 18 | AP238-PS15...
-
Page 19: Troubleshooting
Make sure the power is on high speed for heavy cooking. • The duct size must be 8”, or larger. Please make sure there are NO reducers or plenums in the duct work. NOTE: For all other inquiries, please contact Infernus Range Hoods. Infernus range hoods AP238-PS15 | 19... -
Page 20: Do's And Don'ts For Duct Venting
4. Apply force to the metal clip and pull out the light fixture. Disconnect the power cable and discard the old light fixture. 5. Reverse the steps to install a new light finture. Turn ON breaker and range hood to test for operation. Metal Clip Power plug Infernus range hoods 20 | AP238-PS15... -
Page 21: Maintenance
Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order • Note: Also replace damaged filter that has punctured or broken mesh, bent or broken frame. NOTE: For all other inquiries, please contact Range Hoods. Infernus Infernus range hoods AP238-PS15 | 21... -
Page 22: Warranty
Infernus riod, and that it is a genuine range hood from Range Hoods. The information in this document is subject to change without notice, please contact Infernus Range Hoods for updated details. Infernus range hoods 22 | AP238-PS15... -
Page 23: Disclaimer
The information in this document is subject to change without notice, please contact Infernus Range Hoods for updated details. Infernus range hoods...
