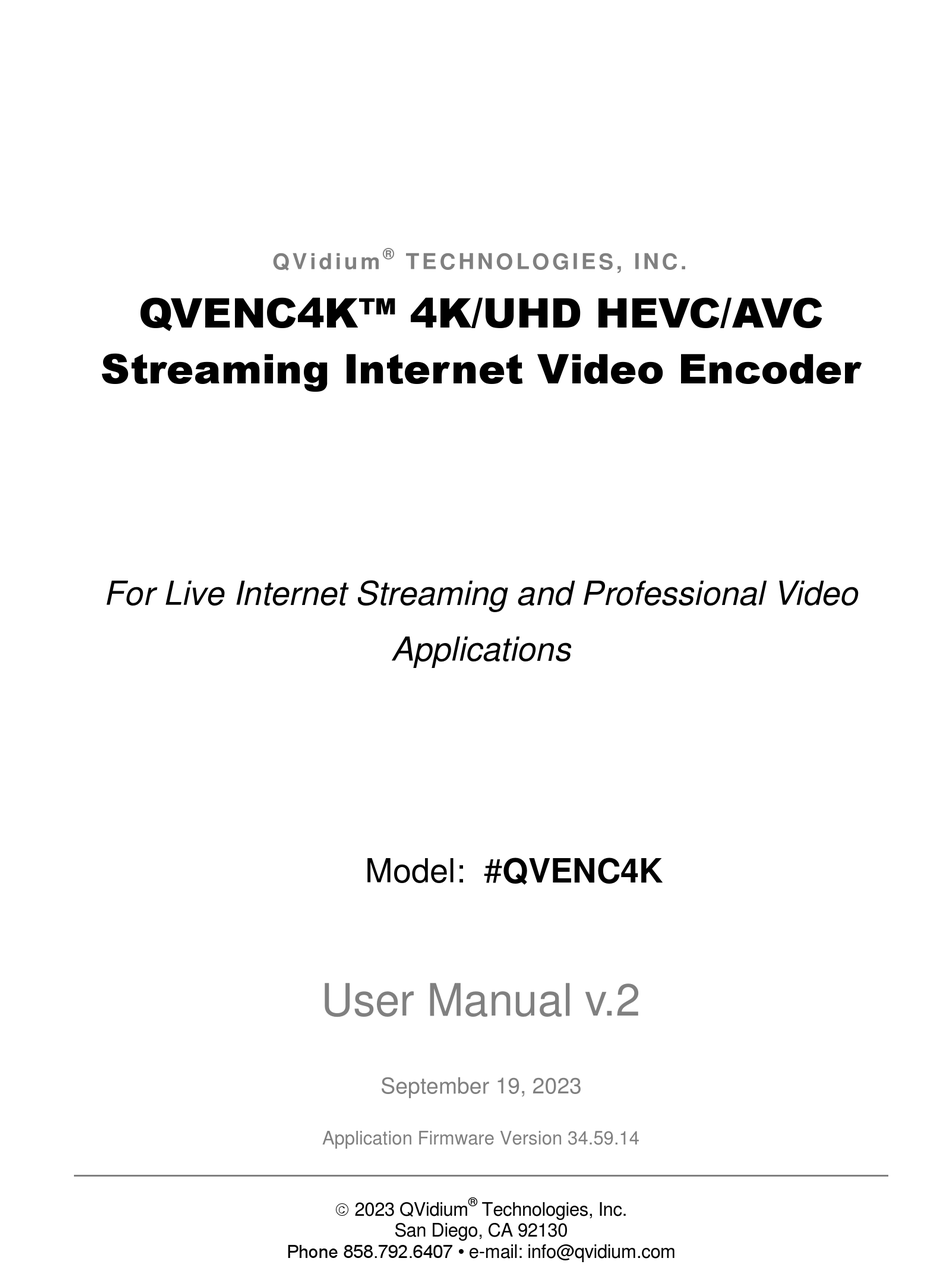

Q V i d i u m

T E C H N O L O G I E S , I N C .

QVENC4K™ 4K/UHD HEVC/AVC

Streaming Internet Video Encoder

For Live Internet Streaming and Professional Video

Applications

Model: #QVENC4K

User Manual v.2

September 19, 2023

Application Firmware Version 34.59.14

 2023 QVidium

Technologies, Inc.

San Diego, CA 92130

Phone 858.792.6407 • e-mail: info@qvidium.com

Table of Contents

Need help?

Do you have a question about the QVENC4K 4K/UHD HEVC/AVC and is the answer not in the manual?

Questions and answers

Summary of Contents for Qvidium QVENC4K 4K/UHD HEVC/AVC

Page 1 QVENC4K™ 4K/UHD HEVC/AVC Streaming Internet Video Encoder For Live Internet Streaming and Professional Video Applications Model: #QVENC4K User Manual v.2 September 19, 2023 Application Firmware Version 34.59.14  2023 QVidium ® Technologies, Inc. San Diego, CA 92130 Phone 858.792.6407 • e-mail: info@qvidium.com...
Page 2: Table Of Contents
Appendix E: Product Warranty Terms and Conditions ......42 Appendix F: FCC Notice ................43 QVidium provides the capability to inter-operate with most Content Delivery Networks (CDNs). As a result, the QVENC4K can send to a CDN in one of four common protocols, SRT, RIST, RTMP/RTMPS and HLS.
Page 3: Introduction
QVidium ARQ (Automatic Retransmission request), for which it holds 2 U.S. patents and an Emmy© Award. QVidium ARQ enables the transport of broadcast quality video over nearly any Internet and wireless network, provided that it has sufficient bandwidth to carry the stream.
Page 4: Accessing The Network Interface
You can update the firmware to the latest version, provided that your QVENC4K is connected to the Internet, by clicking System/Upgrade. This will compare the various firmware modules on your ® Copyright 2023 QVidium Technologies, Inc. Page 4 of 43...
Page 6: Network Setup
Ethernet to USB dongle into the USB3-Type A port that is next to the two built-in Ethernet ports. QVidium provides software called CodecManager that you can download from the Support page http://www.qvidium.com to configure and determine the IP address of the Ethernet port of your QVENC4K.
Page 7 DHCP. A Hostname page allows you to specify the host name for use in conjunction with a DNS server to assign a predetermined IP address. ® Copyright 2023 QVidium Technologies, Inc. Page 7 of 43...
Page 8: Reconfiguring And Resetting Network Settings
Upon power-on, you should see a stream of characters as the system is booting, ending with the login prompt. Login as user “qvidium” with the barcode serial number as the password,then hit Enter. From this prompt, type resetnetwork followed by hitting the Enter key (<CR>, carriage return) to reset the network settings to use DHCP.
Page 9 ® QVENC4K™ UHD/HEVC Video Encoder User Manual v.2 QVidium Figure 3. Network Ping example for GigE 2. Top: Configuration; Bottom: Output ® Copyright 2023 QVidium Technologies, Inc. Page 9 of 43...
Page 10 This is fine for web pages that use TCP and can tolerate random delays. However, this can cause video streams ® Copyright 2023 QVidium Technologies, Inc. Page 10 of 43...
Page 11: Passwords And Security
User Manual v.2 QVidium to become mis-ordered, jumbling the video content. Using the Jitter Buffer in the QVidium decoder or ARQ software can often restore correct packet order and stream integrity, at the cost of additional delay. You can also avoid Dynamic Load Balancing by requesting MPLS (Multi-Protocol Labeled Switching) service from your ISP.
Page 12: System View - Qvenc4K
Glows red upon encountering an error condition. Note: A USB2-MicroB Console port and USB3-TypeC USB port are primarily for system maintenance purposes and should rarely, if ever, be needed by the customer. ® Copyright 2023 QVidium Technologies, Inc. Page 12 of 43...
Page 13 Rear View – Power, SDI Video/Audio I/O, USB and Ethernet Ports Component Description DC Power 6VDC @ 3A to 24VDC @ 1A SDI Lock SDI lock indicator 12G-SDI Input/Output port, all SDI rates up to 12Gbps. SFP port for 2 SDI I/O port (optical or copper), 12G-SDI max.
Page 14: Important Safety Information - Please Read
 This equipment is not suitable for use in locations where children are likely to be present.  NO USER SERVICABLE COMPONENTS. ® Copyright 2023 QVidium Technologies, Inc. Page 14 of 43...
Page 15: Encoder Configuration
Each encoder profile allows you to output up to 4 copies of the encoded video into a unique IP stream, each to its own destination address and each stream copy individually configured with any of the available IP transport protocols that you select. ® Copyright 2023 QVidium Technologies, Inc. Page 15 of 43...
Page 16: Quickstart Encoder Configuration
UDP port or URL. Most protocols will require a destination IP address or DNS name for the receiver, but several of the protocols, such as QVidium ARQ, RIST, and SRT, allow you to leave the destination blank and have the receiver initiate the stream. We refer to this operation as Listener Mode or Pull Mode.
Page 17 NOTE: The QVENC4K will automatically upscale 1080i video input to 1080p. It cannot directly encode interlaced video, so a 1080i interlaced video input is automatically upscaled to 1080p progressive video before encoding. Figure 6. Encoder Profile Example showing ® Copyright 2023 QVidium Technologies, Inc. Page 17 of 43...
Page 18: Detailed Encoder Configuration
There is no wasted bandwidth to carry Null-packets for filler. However, a VBR stream may have large variations in bit rate. ® Copyright 2023 QVidium Technologies, Inc. Page 18 of 43...
Page 19 MPEG1 is perhaps the most widely interoperable. AAC is best for music and maintaining the highest fidelity. For speech and verbal content, we recommend Opus, which is used by Google in Android phones. (See Figure 9, below.) ® Copyright 2023 QVidium Technologies, Inc. Page 19 of 43...
Page 20 You must also restart the encoder with the updated profile for these changes to take effect. You can do this by simply clicking Start. Figure 9. List of audio channel options, audio encoding formats and audio bit rates. ® Copyright 2023 QVidium Technologies, Inc. Page 20 of 43...
Page 21 Universal Resource Locator, or URL, Figure 10. Lower portion of encoder profile showing the 4 fields for specifying output protocols and destinations, termed Univerasl Resource Locators or URLs. ® Copyright 2023 QVidium Technologies, Inc. Page 21 of 43...
Page 22 Clicking on the Transport pull-down field reveals the available IP Transport options: SRT, RIST (Main and Simple profiles), QVidium ARQ, RTMP (both RTMP and RTMPS), Zixi, UDP, and RTP. Here are the parameters required for the following video transport protocol: ...
Page 23 Note: For QVidium ARQ in Pull-Mode of operation, you must specify a different ARQ port than the UDP port. Under QVidium ARQ, you can both Push and Pull streams at the same time by entering an IP address/hostname to push streams while other receivers pull streams from your QVidium ARQ server.
Page 24: Qvidium Arq Video Transport & Error Correction
QVidium 2.3 QVidium ARQ Video Transport & Error Correction The QVidium QVENC4K Video Encoder™ features some of the most powerful and advanced error correction capabilities found in any video over IP product. The QVENC4K implements QVidium’s patented ARQ error correction and clock synchronization (US Patents #7,551,647 and #7,522,528) for robust video transmission with the lowest delay.
Page 25 For sending more than 4 output copies of a stream, either use an IP Transport that allows multicasting (and UDP, RTP, or RIST Simple Profile) or send the stream to a server or PC running the QVidium QVARQ-TxRep QoS Proxy server (see http://www.qvidium.com/proxy).
Page 26: Additional Protocol-Specific Parameters
QVENC4K Ethernet network ports for bonding and failover features. Please contact QVidium for further details, should you require any assistance in these additional configurations.
Page 27: Encoder Operation
A message will appear at the top of the page to confirm that your changes have been saved. Figure 12. Dashboard showing status when outputting an ARQ stream. ® Copyright 2023 QVidium Technologies, Inc. Page 27 of 43...
Page 28: Codecmanager & System Reset
To reset all of the system settings and configuration to the Factory Defaults, First log into the USB Console as per Section 1.3. They log in as user “root” using password, “qvidium”. Then type, “/opt/qvidium/backend/db-init<enter>”. Lastly, reboot the system by typing:...
Page 29: Resetting The Password
Section 1.3 under the paragraph heading, “USB Console Port”. At the login prompt, you can log in as “root” with the password, “qvidium”. SSH and Telnet are disabled by default, so you must have physical access to the unit to log in as root. Once you have logged in, type “resetpasswd”...
Page 30: Built-In Firewall
If your device is remotely accessing your QVidium encoder, you can determine its external IP address to add to the white list by going to the URL: http://www.ipchicken.com, Also, you must specifically allow access to the IP address(es) of any other QVidium device(s) you are sending to or receiving data from.
Page 31: Troubleshooting & Support
(Either use a cross-over Ethernet cable to connect directly to the computer or connect through the same switch as your computer.) 4. Use QVidium’s CodecManager application to find IP address of system and to confirm that Encoder is online. You can download CodecManager from QVidium’s Download page (http://www.qvidium.com/), click on Downloads, and scroll down to the QVidium Encoder...
Page 32 8. If all else fails, you can reset the network settings by going to: http://www.qvidium.com/reset. Then copy the file “autorun” to a USB flash stick, and plugging it into your encoder. The autorun file must be saved directly, not first converted to a text file.
Page 33 For Multicast, make certain that you have specified the same multicast address on the decoder as well as on the encoder. If multicasting through a router, make certain that the router supports IGMP v3 and that it is enabled. ® Copyright 2023 QVidium Technologies, Inc. Page 33 of 43...
Page 34: Support
For specific technical help, we kindly ask that you first contact the reseller or distributor from whom you purchased your QVidium product. If you still require further assistance, or you purchased your product directly from QVidium, please contact QVidium Technologies, Inc. by either phone or e-...
Page 35: Appendices
Video/IP stream. All packetized video transport mechanisms encapsulate a multiplexed variable bit rate MPEG-2 transport stream.  ARQ uses QVidium’s patented error correction mechanism based on a time-constrained selective packet retransmission algorithm, in place of FEC. It also encapsulates the video ®...
Page 36 7020. You can change this ARQ Port setting to any valid and non-conflicting UDP port. However, you must make certain that you specify the same port number at both the encoder and the decoder. ® Copyright 2023 QVidium Technologies, Inc. Page 36 of 43...
Page 37: Appendix B: Video Encoder™ Bitrate Limits
7.2 Appendix B: Video Encoder™ Bitrate Limits Encode Bit Rate Limits: The video encoding bit rate limits specified below are subjective suggestions based on limited empirical testing. The QVENC4K encoder will allow you to enter any video stream bit rate from 500Kbps to 60Mbps, and will attempt to produce the best video quality it can, based on the video bit rate you set.
Page 38: Appendix C: Hints For Minimizing Bitrates
Video Bit Rate: 200000 Stream Mode: Capped VBR Video Encoding: H264 Video Filtering: On Audio Bit Rate: 64000 Video Frame Rate: Half Audio Encoding: MPEG1/Layer2 Video Resolution: CIF Audio Sampling Rate: 48000 ® Copyright 2023 QVidium Technologies, Inc. Page 38 of 43...
Page 39: Appendix D: Technical Specifications
For the must up-to-date and more complete specs, please see the datasheet for the relevant model QVidium product at http://www.qvidium.com. For video input and encoding, the specs are only relevant to the QVENC4K and QVENC.
Page 40 DC Power Input: 7 VDC @ 3 A max, to 20 VDC @ 1 A max  Auto sensing AC power adapter included Mechanical: (see relevant datasheet)  Unit Weight: 4 lbs  Rack mount bracket, up to 2 units in 1 RU ® Copyright 2023 QVidium Technologies, Inc. Page 40 of 43...
Page 41 Operating humidity: 0 to 90% R.H., non-condensing  Non-operating temperature: -20 to 70  Non-operating humidity: 0 to 95% R.H., non-condensing Regulatory:  RoHS, CE, and FCC compliant Warranty:  Parts and labor: 1-year ® Copyright 2023 QVidium Technologies, Inc. Page 41 of 43...
Page 42: Appendix E: Product Warranty Terms And Conditions
Repair or attempted repair by anyone not authorized by QVidium; c) Damage to or loss of any programs, data or removable storage media; d) Software or data loss occurring during repair or replacement;...
Page 43: Appendix F: Fcc Notice
Operation of this equipment in a residential area may cause harmful interference in which case the user will be required to correct the interference at his own expense. ® Copyright 2023 QVidium Technologies, Inc. Page 43 of 43...
