iLive IAHB53 3143-01 User Manual

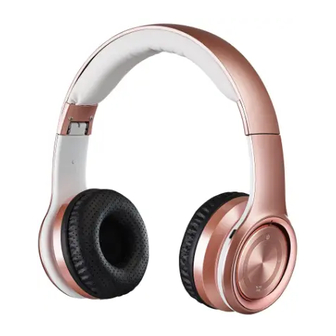

Bluetooth Headphones
User's Guide for Model IAHB53 3143-01
Features
• Bluetooth 5.3 – range 33 ft.
• Built-in microphone
• 3.5mm Aux In
• Adjustable headband
• Folds for travel
• On-ear controls
• Rechargeable battery
• Playback up to 7 hours at 50% volume
Includes
• USB-C to USB charging cable
• 3.5mm Cable
Charging the Battery
To charge the battery, use the USB-C to USB cable (included),
to connect to the USB port of a powered-on computer or a UL
certified USB power adaptor (not included). Charge fully before
use. The initial charge time is approximately 2 hours.
LED
iahb53-IB-0804_01.indd 1 iahb53-IB-0804_01.indd 1
Power Button
Play/Pause/Phone
Press to play or pause audio.
Press to answer an incoming phone call.
Press twice to activate voice assistant.
Volume and Track Control
Press Vol- to decrease volume.
Press and hold Vol- to go to the previous track.
Press Vol+ to increase volume.
Press and hold Vol+ to go to the next track.
Bluetooth Pairing Button
Press and hold to manually enter pairing mode.
When in pairing mode, the Indicator LED will
flash red and blue.
Controls and Functions
AUX IN
LED
STATUS
Power On
Charging
Charging Complete
Pairing
Pairing Complete
Microphone
MIC
Aux In
DC In Port
Indicator LED
INDICATOR
Flashing blue light
Solid red light
Light OFF
Flashing red / blue light
Flashing blue light
