HEDBOX HBP-NPF User Manual

V-mount battery power plate adapter
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

EN
English
V-Mount Battery Power
Plate Adapter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBP-NPF and is the answer not in the manual?

Questions and answers

Summary of Contents for HEDBOX HBP-NPF

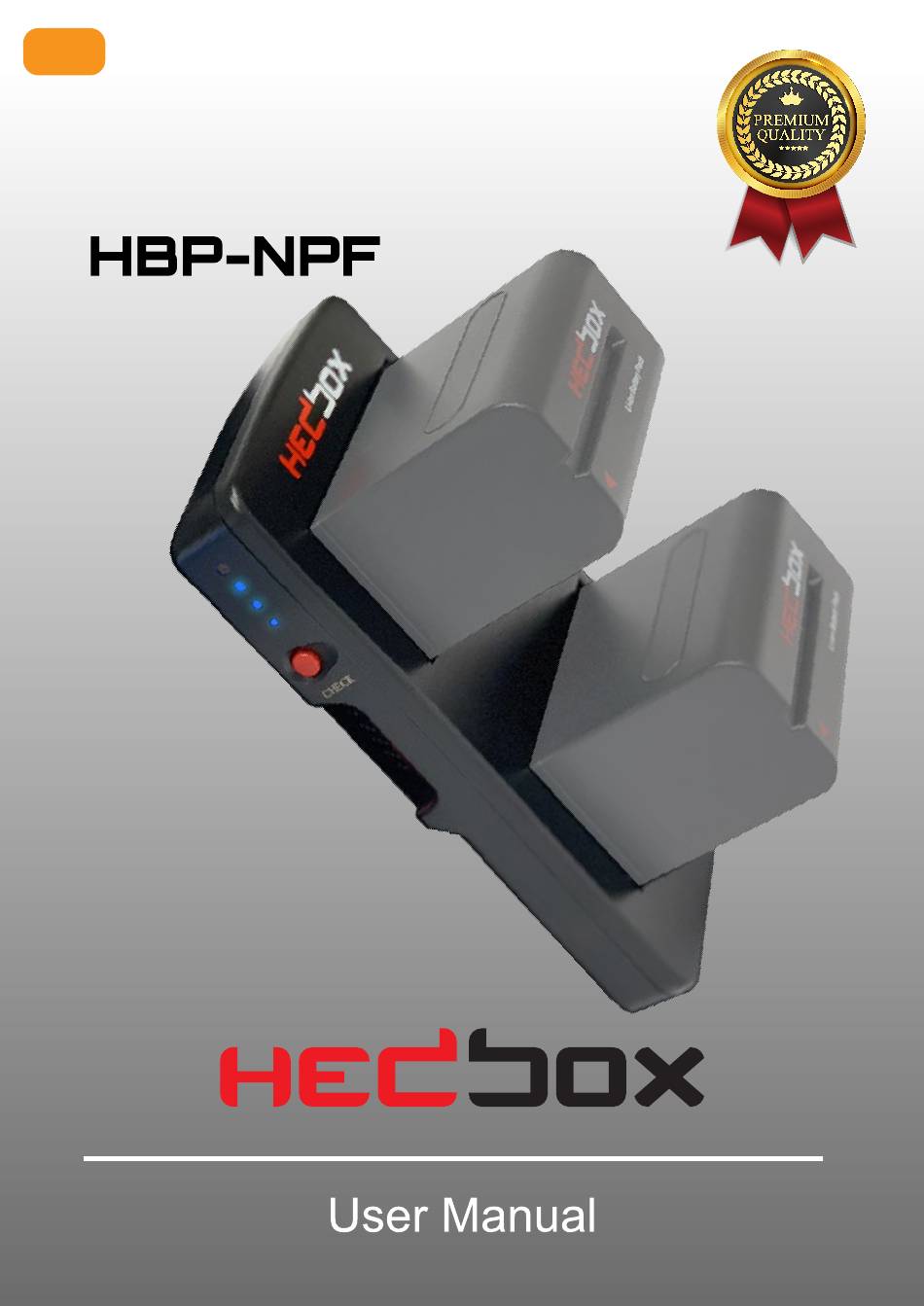

  • Page 1 English V-Mount Battery Power Plate Adapter...
  • Page 2 • The combined voltage of the two L-series or NP-F Batteries make 14.4V ~ 14.8V. • The HBP-NPF converts two DV F series 7.2V batteries into a 14.4V V-Mount battery. • With an extra D-tap 14.8V/50W DC power output, it can deliver 14.4V 72W/8A to all external devices.
  • Page 3 English Capacity Meter - LED Indicator 4x LED Lock TEST Testing the capacity of the battery pack: • A four-step Blue LED display indicates the remaining capacity. • Press the Test / Check button, and the remaining capacity of the battery pack will be shown on four-step LED display.

  • Page 4: Caution On Use

    • Do not handle damaged or leaking lithium ion batteries. • Be sure to charge the battery pack using a genuine Hedbox battery charger or a device that can charge the battery pack. •Keep the battery pack out of the reach of small children. • Keep the battery pack dry. • Replace only with the same or equivalent type recommended by Hedbox.

  • Page 5: Product Dimensions

    • Keep D-Tap Power socket clean from dust • A D-tap DC output socket is equipped on the side of the HBP-NPF battery pack. With this external power supply facility, you can connect an on-camera LED light, video monitor, wireless transmitter or digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station.

  • Page 6: Specification

    • The content of the recording cannot be compensated if shooting or reproduction are not possible due to a malfunction of the battery pack or other devices. • Design and specifications are subject to change without notice. If you want to know more about HEDBOX Products please visit our website: www.hedbox.com...
  • Page 7 English Note: Always ensure that the unit is operating properly before use. HEDBOX WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, LIMITED COMPENSATION REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,...

  • Page 8: Battery Chargers

    We Power Your Bussines NINA HED-BPU NERO Series BATTERY CHARGERS...
  • Page 9 HED-A60 RP-BP975 RP-VBD78 RP-LPE6H UNIX HOLD II 4CH CHARGER...
