Hallman HDW24PR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USA/CAN
Dishwasher / User Manual
HDW24PR
HDW24WT
HDW24GB
HDW24ST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDW24PR and is the answer not in the manual?

Questions and answers

Related Manuals for Hallman HDW24PR

Summary of Contents for Hallman HDW24PR

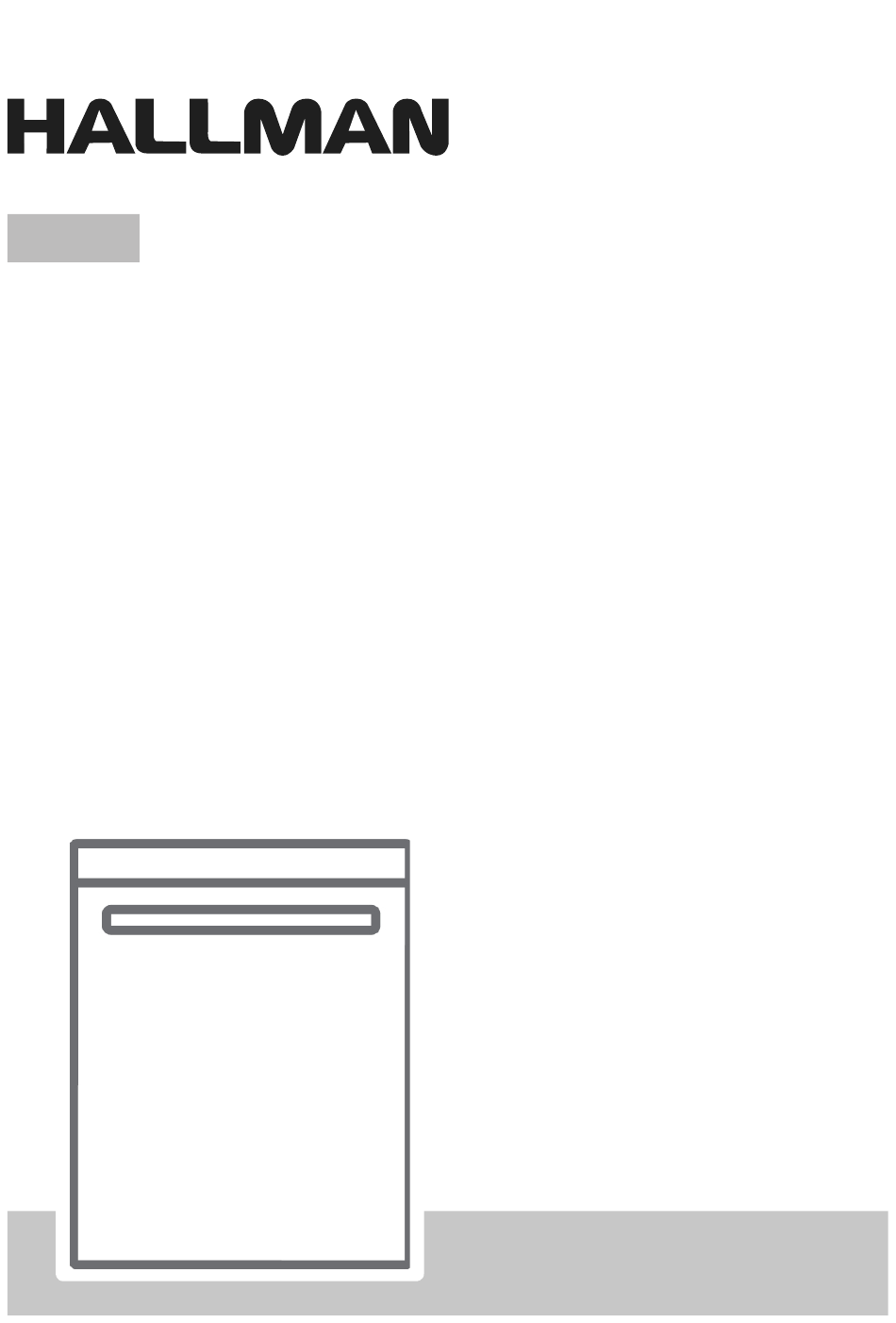

  • Page 1 USA/CAN Dishwasher / User Manual HDW24PR HDW24WT HDW24GB HDW24ST...

  • Page 2: Table Of Contents

    CONTENTS 1 IMPORTANT SAFETY INSTRUCTIONS ..........5 2 INSTALLATION .................. 10 3 TECHNICAL SPECIFICATIONS ............12 4 BEFORE USING THE APPLIANCE ..........13 5 LOADING YOUR DISHWASHER ............17 6 PROGRAMS AND OPTIONS TABLE ..........24 7 THE CONTROL PANEL ..............26 8 MAINTENANCE AND CLEANING ............
  • Page 3 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.
  • Page 4 INTRODUCTION Please read this user manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance. Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside.

  • Page 5: Important Safety Instructions

    1 IMPORTANT SAFETY INSTRUCTIONS WARNING: When using the dishwasher, follow basic precations.Read all instructions before using the dishwasher! Save these operating instructions and pass them on to any future user. • Use the dishwasher only for its intended purpose as described in this user manual. This appliance is intended for normal household use only.
  • Page 6 • Do not operate your dishwasher unless all ENCLOSURE panels are properly in place. • Do not tamper with controls. • Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. • The cup racks are designed to support cups, glasses and kitchen utensils.
  • Page 7 infirm persons away from the dishwasher when the door is open. Consult a doctor immediately if detergent has been swallowed or inhaled. • Do not remove the dishes from the appliance until the program is complete. Some detergent may remain on the dishes.
  • Page 8 • To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher. • To avoid dishwasher damage, do not allow water to remain in your dishwasher systems through extended periods of freezing. RISK OF INJURY: To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape.
  • Page 9 RECYCLING Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal. Before disposing the dishwasher: • Disconnect the appliance from the mains supply. •...

  • Page 10: Installation

    2 INSTALLATION WARNING: When installing the dishwasher, follow basic precau-tions, including the following: Please check the standards and local codes for placement of machine. • Installation, maintenance and repair should be performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.
  • Page 11 of 120 V (volts), 60 Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 16 AWG copper wire rated at 75 °C (167 °F) or higher. These requirements must be met to prevent injury and machine damage.

  • Page 12: Technical Specifications

    3 TECHNICAL SPECIFICATIONS Technical Specifications Permissible 4.35 - 145 psi water pressure (0.3 - 10 bars) 120 V (volts), Electrical 12 A (amps), connection 60Hz (hertz) Total power 1400 (W) Heater power 1100 (W) NOTICE: Because we continually strive to improve our products, we may change our specifications and design without prior notice.

  • Page 13: Before Using The Appliance

    4 BEFORE USING THE APPLIANCE Preparing your dishwasher for first use • Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging material inside the machine. • Set the water softener level.
  • Page 14 Test Strip Run water through Keep the strip in Shake the Wait Set the hardness level of your the tap (1min.) the water (1sec) strip. (1min.) machine. NOTE: The level is set to 1 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.
  • Page 15 Detergent usage If you encounter problems when using combined detergents, please contact the Only use detergents specifically designed detergent manufacturer. for domestic dishwashers. Keep your detergents in cool, dry places out of reach When you stop using combined detergents, of children. make sure that water hardness and rinse aid settings are set to the correct level.
  • Page 16 Level Brightener Dose Indicator Rinse-aid not r:1 is shown on the dispensed display. 1 dose is r:2 is shown on the dispensed display. 2 doses are r:3 is shown on the dispensed display. 3 doses are r:4 is shown on the dispensed display.

  • Page 17: Loading Your Dishwasher

    5 LOADING YOUR DISHWASHER NOTE: Do not overload your If you properly place your dishes into the dishwasher and pay attention to machine, you will be using it in the best way manufacturer instructions regarding in terms of energy consumption, washing dishes which are appropriate for use in and drying performance.
  • Page 18 Upper Rack Lower Rack Load the upper rack with dessert plates, You can load into the lower basket such cups, glasses etc. round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets. The lower rack should not be used for small items such as cups, wine glasses.
  • Page 19 Loading cutlery basket NOTE: Place all large and very dirty ( Model Depending ) items in the lower rack. WARNING: Large knives and other utensils with sharp tips and edges must be placed horizontally into the upper rack due to risk of injury. Other smaller knives and sharp utensils should be placed with sharp side down in the cutlery basket.
  • Page 20 Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer’s recommendations for a good performans result. USA-CAN - 20...
  • Page 21 Top Basket NOTICE: Bringing the wires Rack with height adjustment to the horizontal position by holding them from the These racks are designed to increase the tips may cause them to capacity of top basket. You can place your bend. Therefore, it will be appropriate to bring the wires cups and glasses on these racks.
  • Page 22 Height setting - when basket is filled Lower Basket Folding Racks (model depending) Folding racks consisting of four parts that The upper basket includes a mechanism are located on the lower basket of your which enables the height of the basket to be machine are designed in order to let you adjusted up (1) or down (2) without having place big items easier such as pots, pans,...
  • Page 23 Silverware Basket (Model Depending) Silverware basket is designed to wash your dishes such as knife, fork, spoon, etc. in a cleaner manner. Since the cutlery basket can be moved , you can create a wider space while placing your dishes to the lower basket and free up space for your dishes in different sizes.

  • Page 24: Programs And Options Table

    6 PROGRAMS AND OPTIONS TABLE Duration Programs Descriptions (min) Dirty Standard program for daily, regular or typical use to Regular completely wash a load of normally soiled dishes. Clean Dirty This program automatically adjusts the temperature and Auto the quantity of water, the energy consumption and the program duration.
  • Page 25 NOTE: The program duration may change according to the amount of dishes, the water temperature, the ambient temperature in the room, and any selected additional functions. NOTE: The energy-usage label is based on the “Regular” cycle. This cycle is the most ef- ficient in terms of its combined energy and water consumption at cleaning normally soiled dishes.

  • Page 26: The Control Panel

    7 THE CONTROL PANEL 4. Delay Buttons 1. On/Off Button Press the Delay Buttons to delay the start 2. Program Buttons time of a programme for 1 hour up to 24 3. Display hours. Pressing once to + button will delay the start time for 1 hour.
  • Page 27 7. Sanitize Button 14. End Step Indicator Sanitize function raises the water When the program is completed, end step temperature in the final rinse. Sanitize led indicator will be on and the buzzer will be will be on. activated. Buzzer sounds 5 times each at 5 minutes intervals (in 0, 5, 10 and 15th minutes) in total 4 different times at the end 8.
  • Page 28 19. Programme Time Indicator Switching the Machine Off “0” will be shown on the display when the Program duration can be monitored via selected program is complete. Buzzer will Program Time Indicator. also sound 5 times. You can then switch your machine off using the Power On/Off button.
  • Page 29 Menu Settings 1. Water Hardness Press Extra Dry button (6) for 3 seconds to To change the water hardness setting, enter menu. Water hardness setting (e.g. follow the “4.7 Water Hardness Setting”. SL1) is seen first. Press Delay buttons (4) to surf through menu.
  • Page 30 Infoled 2.1 (Model Dependent) Infoled that is positioned on the bottom side of the dishwasher shines a light on to floor to indicate the current status of the dishwasher during washing. LED Indicator State of the Machine The machine is running a Red, continuous program.

  • Page 31: Maintenance And Cleaning

    8 MAINTENANCE AND In case of insufficiency, use special cleansing mate-rial available in the market. CLEANING (Cleansing material produced special to machines by detergent produc-ers.) Cleaning the seals in the machine door, WARNING : Before cleaning or - To clean any accumulated residues in carrying out maintenance, switch off the the door seals, wipe the seals regularly by appliance, disconnect the mains plug and...
  • Page 32 Spray Arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.
  • Page 33 Upper Impeller Check if the holes on the upper impeller 1 are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to re-move the upper impeller (A, B) Make sure that the nut is tightened well when installing the upper impeller.
  • Page 34 WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER? • All items to be placed in the dishwasher should be dishwasher safe. • Plastics with “dishwasher safe” or equivalent label can only be used in dishwashers. Plastics may lose their shape or color. Check with manufacturer for recommendations. •...

  • Page 35: Troubleshooting

    9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged Plug your Dishwasher in. Your Dishwasher is not Switch your Dishwasher on by switched on. pressing the On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. Water inlet tap is closed.
  • Page 36 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 37 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Water inlet system failure Separate the inlet hose from the tap and clean the filter of the hose.

  • Page 38: Practical Information

    10 PRACTICAL INFORMATION 1. When the machine isn’t in operation: • Disconnect the plug and close the tap. • Leave the door slightly open to prevent odour formation. 2. Select the dry option to remove water droplets. 3. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance.
  • Page 39 5XXXXXXX...
