USE AND MAINTENANCE INSTRUCTIONS
FOR 35.014 HAND WINGS PUMPS

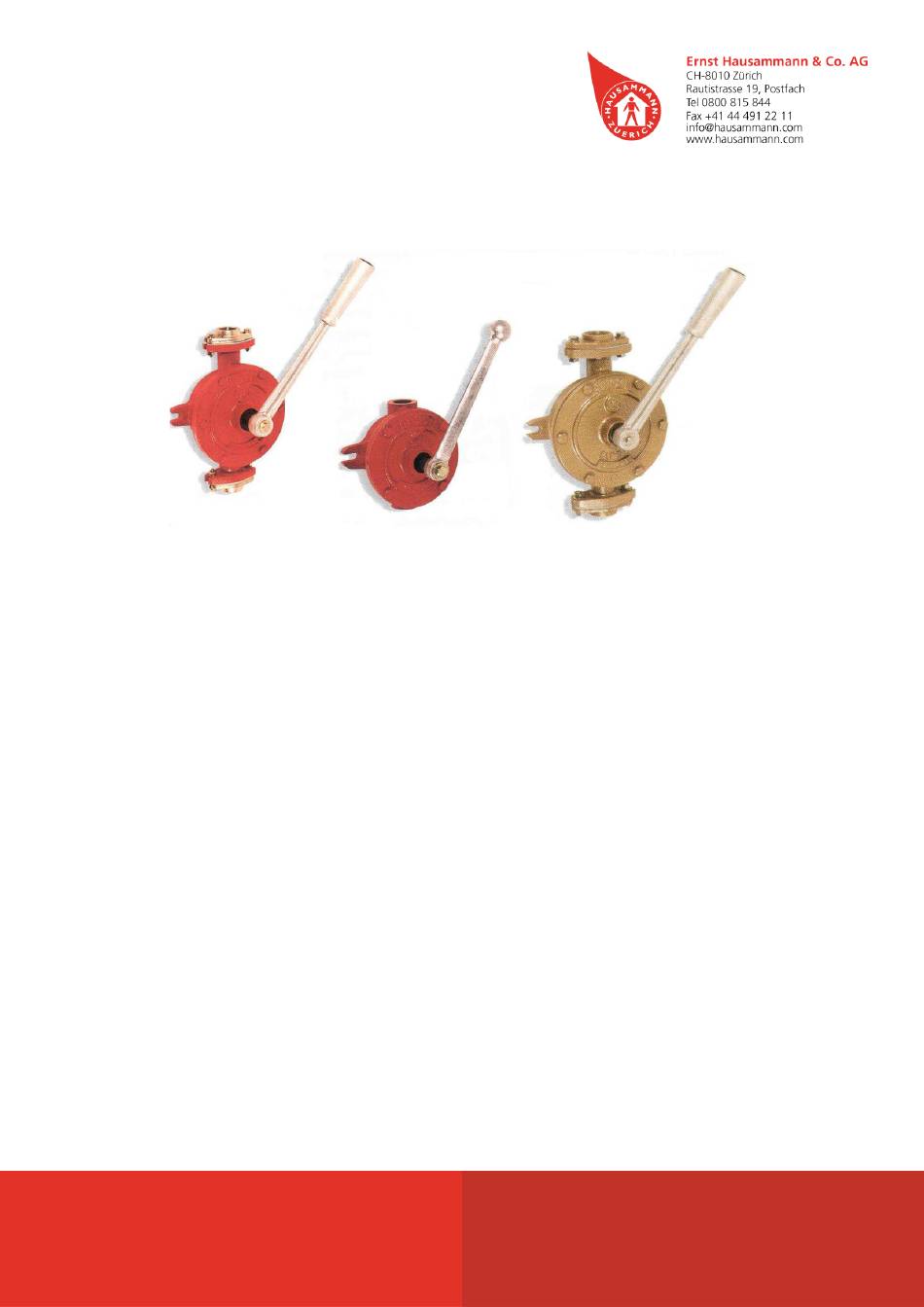

In continuous production since 1919, the 35.014 pump is one of the world's original type of semi-rotary hand
wing pump.
The pumps are operated by the movement of the handle. This handle causes the shaft and the wings, which is fitted
with
flap valves, to semi-rotate within the pump. Also enclosed in the body of the pump is the suction divider, fitted with
flaps. Two lugs facilitate the mounting of the pump to a wall or similar structure.
1 – LETTER TO THE CUSTOMER
This document contains important indications about security, use and maintenance of the 35.014 hand pump,
this manual must be read carefully before operating with 35.014 pump. It must be at disposal for any operator
that will use the 35.014 pump in future. Please preserve this manual with care.
The 35.014 pump is made high quality with raw-materials and high profile workmanship using the most modern
and up-dated technologies in conformity with the CEE 98/37 standards. Therefore the 35.014 pump cannot be
considered dangerous for the operator when used this manual of use and safety.
The manufacturer declines all responsibility for improper use of 35.014 pump. It's strictly forbidden to modify or
unduly open the product. Producer cannot be responsible of any damage caused to objects, animals and persons due to
above improper modification.
In case of system fault or technical problems, please call immediately the manufacturer, indicating the
following details:
• Your name and address.
• The address and the location of the pump.
• The code and the size of the pump.
• The problem description
• The type of application
• The fluid that must be pumped, the suction head, the temperature etc.
2 – DELIVERY OF 35.014 PUMP
TRANSPORT
All the material shipped, including the detached parts, has been carefully checked before being consigned to the
forwarding agent.
www.hausammann.com
Advertisement
Summary of Contents for Ernst 35.014
- Page 1 This document contains important indications about security, use and maintenance of the 35.014 hand pump, this manual must be read carefully before operating with 35.014 pump. It must be at disposal for any operator that will use the 35.014 pump in future. Please preserve this manual with care.
-
Page 2: Safety Instructions
The operator should not wear large clothes, bracelets, necklaces and must tie up long hair. Make sure there is someone else than just the operator when 35.014 pump is working in order to help in the event of an accident. If you are pumping hot fluids, avoid contact with the parts that are hot to avoid skin burning. - Page 3 In case of use of 35.014 pump on a barrels, the suction tube (which is lowered into the barrel) must have the ends obliquely cut to prevent sticking on the bottom caused by the vacuum exerted by the pump in operation.
-
Page 4: Maintenance
In this case empty each time the pump and dry it in order to avoid formation of rust. In conclusion, we provide a brief summary, as written above, for the installation and use for 35.014 hand pumps. -
Page 5: Disposal And Scrapping
10 – 35.014 PUMP TECHNICAL DATA 35.014 hand pump is robust and easy to manufacture, it was designed to last without maintenance or special assistance. These pump is operated by a left and right reciprocating motion achieved by a handle of wood on an iron spike or a one piece metal handle of iron or aluminium. - Page 6 35.014 pumps are: • Easy to use • Double acting • Self-priming • Reciprocating action (from left to right to left) • Priming-pressing • Semi-rotary wing pumps Hand pumps are operated by human power and therefore the flow-rate is proportional to the revolutions per minute (RPM) given by the operator and to the diameter size.
- Page 7 The standard type works best with non-aggressive fluids: water, oil and diesel. Always pay attention to safety standards. In case of use of an 35.014 pump with VITON seals (BE type) operator has to pay attention and care as the machine is risky and dangerous.
- Page 8 Do not use excessive force to prevent damaging of internal parts, partial or incorrect use of the pump reduces the flowrate At the beginning the pump body and the pipes are empty and few cycles need to be made before liquid will flow out from the delivery hose.
