- Page 1 Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 TC635-Color Display Manual Product：Smart Display Type: TC635 Prepared: Li Lulu Revised： Wang Xiaolei Approval： Sun Min Date: 2022-6-21 Date： 2022-6-28 Date： 2022-6-28...
-
Page 2: Table Of Contents
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 Content 1. Introduction ................................1 2. Manual Guide ................................ 2 1). Appearance ..............................2 2). Specifications ............................... 2 3). Functions ............................... 2 4). Assembly ............................... 3 5). Display Area ..............................4 6). -
Page 3: Introduction

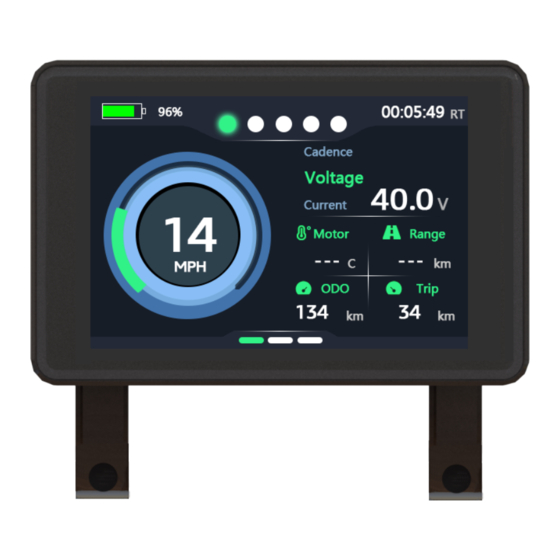

Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 1. Introduction 1). Product：Smart Display 2). Type: TC635-Color 3). Scope: Electric Pedal Assistance Bikes of Standard EN15194 4). Protocol：UART & CAN 5). Appearance: Zinc alloy frame as in the following. -
Page 4: Manual Guide
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 2. Manual Guide 1). Appearance 2). Specifications ① Rated Voltage: 36V/48V ② Rated Current: 44.9mA ③ Current Limit: ≤70mA ④ Power-off Leakage Current<1uA ⑤ Output Current to Controller: 25.1mA ⑥... -
Page 5: Assembly
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 4). Assembly ① Fix the display in a suitable position on the handlebar. Then adjust the angle of the auxiliary switch to make it easier to watch and use when riding. (Applied to outer diameter of 22.2-31.8 mm.) ②... -
Page 6: Display Area
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 5). Display Area Batter Power Indicator Light Indicator Real-Time Speed Pedal Assist Level 0-5 Turn Light Signal Running Time No Assist Indicator Brake Indicator Motor Information 10.) Motor Temperature Indicator 11.) Distance Range... -
Page 7: Operation
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 7). Operation “Long press>2S” referred by“long press” “Short press<0.5S”referred by“press”. ① Power On/Off： Long press “ on-off” to turn on, press “ +” or “ -” to select when “read” appears， press “ on-off” to confirm. - Page 8 Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 PAS On/Off Interface ⑤ Light： On-off switch: long press “+” Light Indicator Interface ⑥ Turn Light Signal: Turn on signal light, corresponding indicator flashing. Turn Light Signal Indicator ⑦...
-
Page 9: Settings
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 Mode Interface ⑧ Battery Power： The battery power indicator is as the following by percentage: Battery Power Indicator 8). Settings Long press “+”and “-”at same time to enter settings, press “+”or “-”to select “User” 、 “Param”or “Other”, press“on-off”to enter submenu, select and press “Exit”to quit submenu，Long press “+”and... - Page 10 Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 Setting Parameter Item Definition Setting Interface Note Menu Definition Display Mode1 Default Mode Mode Mode2 Mode1 User Exit Exit Wheel Default Wheel 8-30 Diam. Class 1； Enter Password to Class Class 2；...
-
Page 11: Error Code
Version No.: V 1.1 NanJing DMHC Technology Co., Ltd File No.: DMHC-TC635 9). Error Code UART Protocol: Code Definition Troubleshooting Brake un-reset Brake Throttle un-reset Throttle Throttle signal wire short circuit to GND Throttle Speed Sensor Fault Speed Sensor Over Current... -
Page 12: Warranty
6. Damage caused by repairing and installing from non-designated repair points or dealers by DMHC 7. Normal damage to the product. DMHC has the right to choose to repair or replace, and DMHC's sole responsibility is limited to product repair or replacement.
