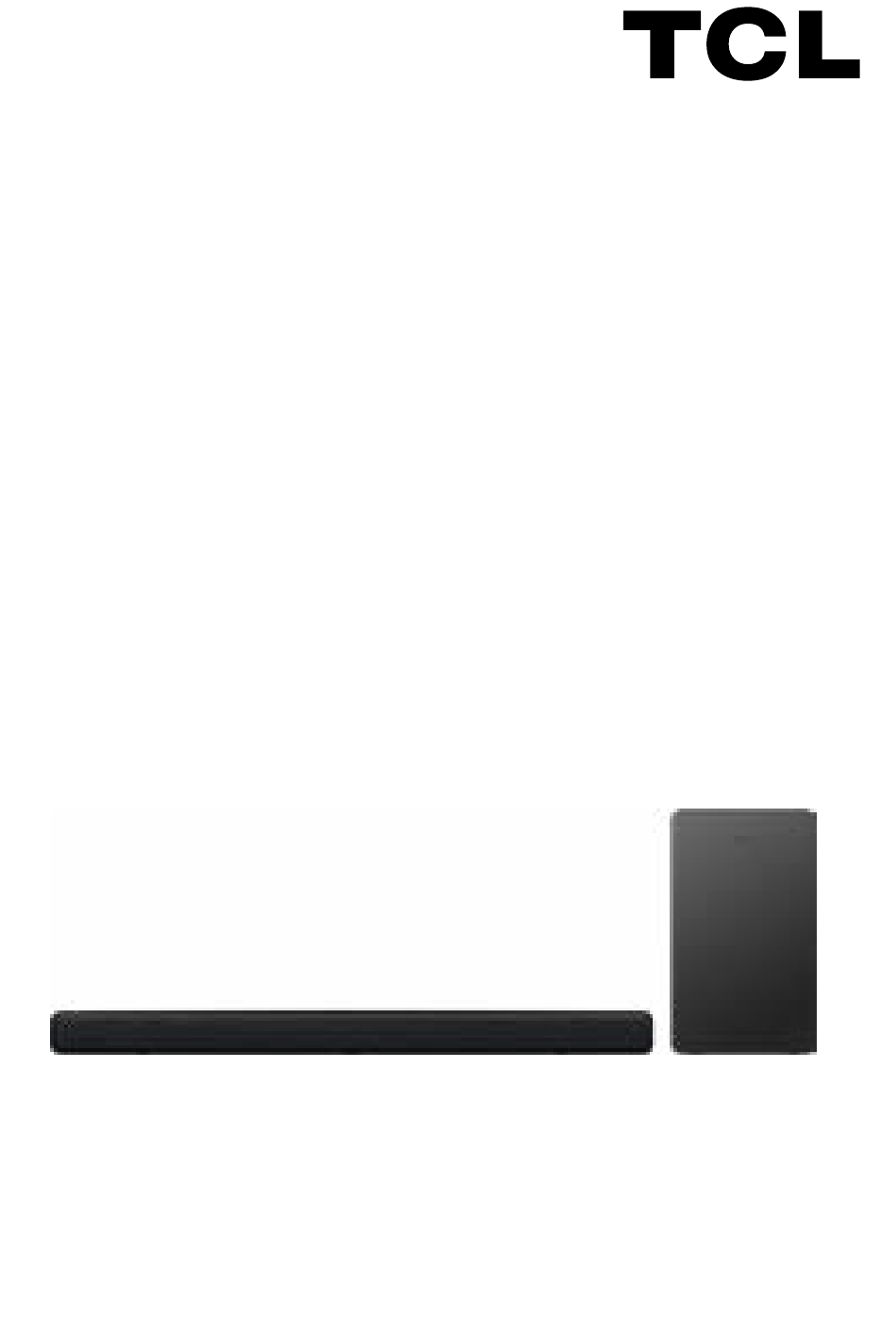

- Page 1 3.1 Channel Sound Bar with Dolby Audio , DTS Virtual:X ™ ™ ® and Wireless Subwoofer P733W User Manual...
-
Page 2: Table Of Contents
Contents 1 Before you begin ...........3 2 Welcome ..............4 What’s in the box ............. 4 Overview of the Sound Bar ..........6 Overview of the wireless subwoofer ........ 8 Set up your Sound Bar system ........9 Position Your Sound Bar and Subwoofer ......9 Mount your Sound Bar on the wall ........ -
Page 3: Before You Begin
1 Before you begin 4 Use your Sound Bar system .......24 Use your Sound Bar with the top panel or remote control .................24 Listen to music from your Bluetooth device ....26 Use the USB cable or device for music playback ..27 •... -
Page 4: Welcome
2 Welcome Congratulations on the purchase of your new TCL Sound Power cord x 2 HDMI cable Bar! After it is set up and connected, you can experience a (Cable length: 4 ft. 11") (Cable length: 4 ft. 11") superb sound quality and state-of-the-art design to best fit your home entertainment system. -
Page 5: Overview Of The Sound Bar
Overview of the Sound Bar Press to increase or decrease the volume level 5 Input Source LED Indicator LED light is visible between the cloth and the top case Indicates current input source with different color 6 AC input power connector 7 Optical input connector 8 USB Type A connector (only for music playback) 9 HDMI OUT (ARC) connector... -
Page 6: Overview Of The Wireless Subwoofer
• Make sure you use screws provided or specified by the authorized manufacturer. • TCL North America bears no responsibility for accidents or damage caused by improper wall mounting and ON / OFF AC ~ IN screws installation or insufficient wall strength, etc. -
Page 7: Mount Your Sound Bar On The Wall
4 Mark on the wall using each marking on the template through the mounting holes. 5 Take away the wall mount template. 6 Drill a screw hole at each marking on the wall. > 2” Mount your Sound Bar on the wall 1 Place the supplied wall mount template on the wall. -
Page 8: Install/Replace The Remote Control Batteries
Install/replace the remote control batteries Warnings • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Caution • The battery contains perchlorate material, handle it with care. For information, refer to www.dtsc.ca.gov/ hazardouswaste/perchlorate 1 Open the battery compartment, remove the old batteries if necessary. -
Page 9: Overview Of The Remote Control
Overview of the Remote Control Long press: Bluetooth Pairing Short Press: select Bluetooth mode Bluetooth Short press to enter input source menu Keep short press or use Up/Down/Left/Right to switch: HDMI-ARC/Optical/AUX/USB/Bluetooth Short press to enter the Level Menu Switch different Level Options with Left/Right Use Up/Down to adjust the value Short press to enter Effect Menu... -
Page 10: Connect Your Sound Bar System
TV manuafacturer. This feature may be called CEC, Anynet+, SimpLink, BRAVIA Link, EasyLink or VIERA Link. Please see your TV's user manual for more information. Enable the CEC function in the settings of the TCL TV. (See TV User Manual for instructions) -
Page 11: Connect With The Optical Cable
To get the best possible audio experience using the optical cable: AC~IN OPTICAL HDMI (ARC) AUX 1 Press the Home button on your TCL TV Remote. 2 Navigate to Audio option under Settings. 3 Uncheck the “TV speaker enabled” option. 4 Under S/PDIF and ARC, select PCM-Stereo. Notes •... -
Page 12: Connect Your Sound Bar To Power Supply
Power on your Bluetooth device and activate its Bluetooth function. AC~IN OPTICAL HDMI (ARC) AUX Select TCL P733W on the pairing list of your Bluetooth device. You will see the blue light on for 5 seconds. • If you cannot find the model name TCL P733W on... -
Page 13: Connect Your Wireless Subwoofer To The Sound Bar
THE SUBWOOFER WILL PAIR AUTOMATICALLY WITH THE SOUND BAR UPON FIRST USE. In case of a problem, take TCL P733W the following steps to manually pair: Press and hold the button on the subwoofer for 2 seconds until an amber light begins flashing above the pair button. -
Page 14: Use Your Sound Bar System
4 Use your Sound Bar system Use your Sound Bar with the top panel or remote control Make sure the Sound Bar is properly connected to the power supply and sources. Press at the top panel of your Sound Bar or remote control to switch to the correct source. -
Page 15: Listen To Music From Your Bluetooth Device
Use the USB cable or device for Note: After powering on your Sound Bar, if there is no operation performed on either the Sound Bar or music playback remote control within 10 seconds, all LED indicators on the Sound Bar will turn off and light up again •... -
Page 16: Specifications
5 Specifications 6 Notice Notice for USA Product Name 3.1 Channel Sound Bar with Dolby Audio, DTS Virtual:X and FCC Information Wireless Subwoofer Warning Sound Bar Changes or modifications to this unit not expresslyapproved • Power Supply: AC 100-240V~50/60Hz by the party responsible for compliance could void the •... -
Page 17: Notice For Canada
(2) this device must accept any interference received, including interference that may cause undesired operation. Remove the disposable battery Supplier Name: TTE Technology, Inc. (dba TCL North America) Supplier Address: 1860 Compton Ave, Corona, CA 92881, To remove the disposable batteries, see the section ‘Install/ replace the remote control battery’. -
Page 18: Trademarks
7 FAQ Trademarks No power • Make sure the AC power cord and AC input connector are connected properly. • Make sure there is power supply. • Make sure the Soundbar has turned on. Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV No sound Ready logo are trademarks and/or registered trademarks of Roku, •... - Page 19 TCL support: Please visit support.tclusa.com or support.tclcanada.com Or call 1-877-300-9223 WE ARE READY TO HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUND BAR Copyright © 2023 TCL. All rights reserved. P733W_NA_EN_UM_V0.95...
