Summary of Contents for CR-Tec FS-4

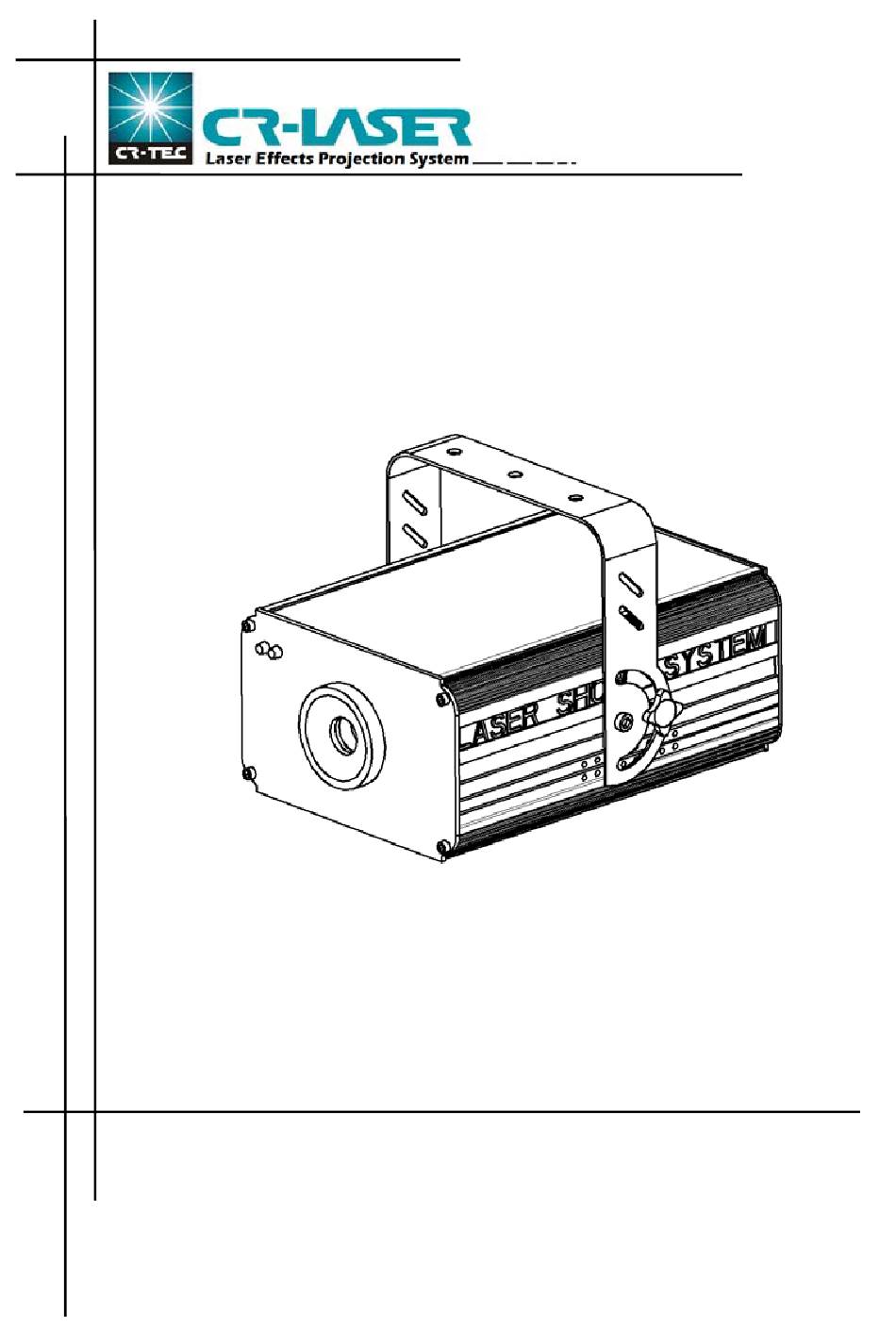

- Page 1 FS-4 Version: 2.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference.
- Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.
-
Page 3: Laser Safety Warnings
USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these instructions carefully, which includes important information about installation, safe use and service! Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light.. -
Page 4: Stop And Read All Laser Safety Data
USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. - Page 5 USER MANUAL Do not point lasers at people or animals Never look into the laser aperture or laser beams Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc. Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal.
-
Page 6: Laser Safety Label Reproductions
USER MANUAL LASER SAFETY LABEL REPRODUCTIONS Caution – Class 3B LASER RADIATION, WHEN OPEN, AVOID EXPOSURE TO BEAM LASER RADIOATION AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT. The label indicates the laser beam output aperture. LASER EXPOSURE WARNING LASER LIGHT AVOID DIRECT EYE EXPOSURE Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from... -
Page 7: Laser Emission Data
USER MANUAL LASER EMISSION DATA Laser Classification Class 3B Green Laser Medium DPSS Nd:YVO4, 532nm Red Laser Medium LD GaAlAs 650nm, typical Beam Diameter <5mm at aperture Pulse Data All pulses < 4Hz (>0.25sec) Divergence (each beam) <2 mrad Divergence (total light) <120 degrees Red>100mW, Green>50mW Laser Power... -
Page 8: General Safety Instructions
USER MANUAL GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to: Be qualified Follow the instructions of this manual CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 9 USER MANUAL The electric connection, repairs and servicing must be carried out by a qualified employee. Do not switch the fixture on and off in short intervals as this would reduce the laser diode life. For replacement, please use fuses of same type and rating only. If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
-
Page 10: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. - Page 11 USER MANUAL The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration. Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Green...
- Page 12 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
- Page 13 USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor.
- Page 14 USER MANUAL The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g.
-
Page 15: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. - Page 16 USER MANUAL Rear Panel NAME DESCRIPTION Main Power Input With IEC socket Fuse Integrated fuse holder. Power Switch Switch ON and OFF the fixture To turn the laser effect (laser diode) ON/OFF. Be Key Switch sure that only authorized operator hold the key Used to connect the optional emergency stopper.
-
Page 17: Control & Function
USER MANUAL IMPORTANT For your own safely and full laser safety regulation, we do strongly recommend you to take this optional switch! CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. - Page 18 USER MANUAL Operation Stand Alone Preprogram Laser Show Press FUNC to enter MODE OPTION. Till to LED panel shows either one of ArA, SrA, FAP, SLP, SoP, FAL, SLL, SoL, FAd, SLd, Sod. Press UP or DOWN to select your favorite Stand Alone mode as above.
-
Page 19: Master/Slave Mode
USER MANUAL Sound Activated Moving Patterns Effect Slow Moving Lines Effect Fast Moving Lines Effect Sound Activated Moving Lines Effect Slow Moving Dots Effect Fast Moving Dots Effect Sound Activated Moving Dots Effect MASTER/SLAVE MODE Press FUNC to enter MODE OPTION Till to LED panel shows SLA Press ENTER to confirm the setting. -
Page 20: Dmx Protocol
USER MANUAL DMX PROTOCOL DMX VALUE DESCRIPTION CANNEL Laser Block Out 000-019 020-039 ARA, Auto Running Random Effect 040-059 SRA, Sound Activated Random Effect 060-079 SLP, Slow Moving Patterns Effect 080-099 FAP, Fast Moving Patterns Effect 100-119 SOP, Sound Activated Moving Patterns Effect 120-139 SLL, Slow Moving Lines Effect MODE... - Page 21 USER MANUAL 113-168 M1 LIBRATING Mode 3 169-255 M1 LIBRATING Mode 4 M2 Rotating Speed 000-255 M2 Stands for Motor 1 ROT SPEED 000-075 M2 Clockwise Rotation 076-150 M2 Stop DIRECTION 151-255 M2 Anti-clockwise Rotation LIBRATE 000-255 M2 Librating Range RANGE 000-056 M2 LIBRATING Mode 1...
-
Page 22: Maintenance
USER MANUAL MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing Switch off the fixture, unplug the mains cable and wait until the unit has been cooled down. Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected... - Page 23 USER MANUAL The fixture is power on, but no laser coming out from aperture. Check the laser aperture cover. Check the key switch. Check the remote interlock or interlock connector. Wait for at least 30 minutes to warm up in low temperature. Check whether it is in music mode without sound signal.
-
Page 24: Specifications
USER MANUAL SPECIFICATIONS Mains Input: AC100-240V, 50/60Hz Fuse: 250V 1.6A Slow Blow (20mm Glass) Total Power: Music Control: Internal microphone Laser Power: 50mW 532nm Green CW 100mW 650nm Red CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃...
