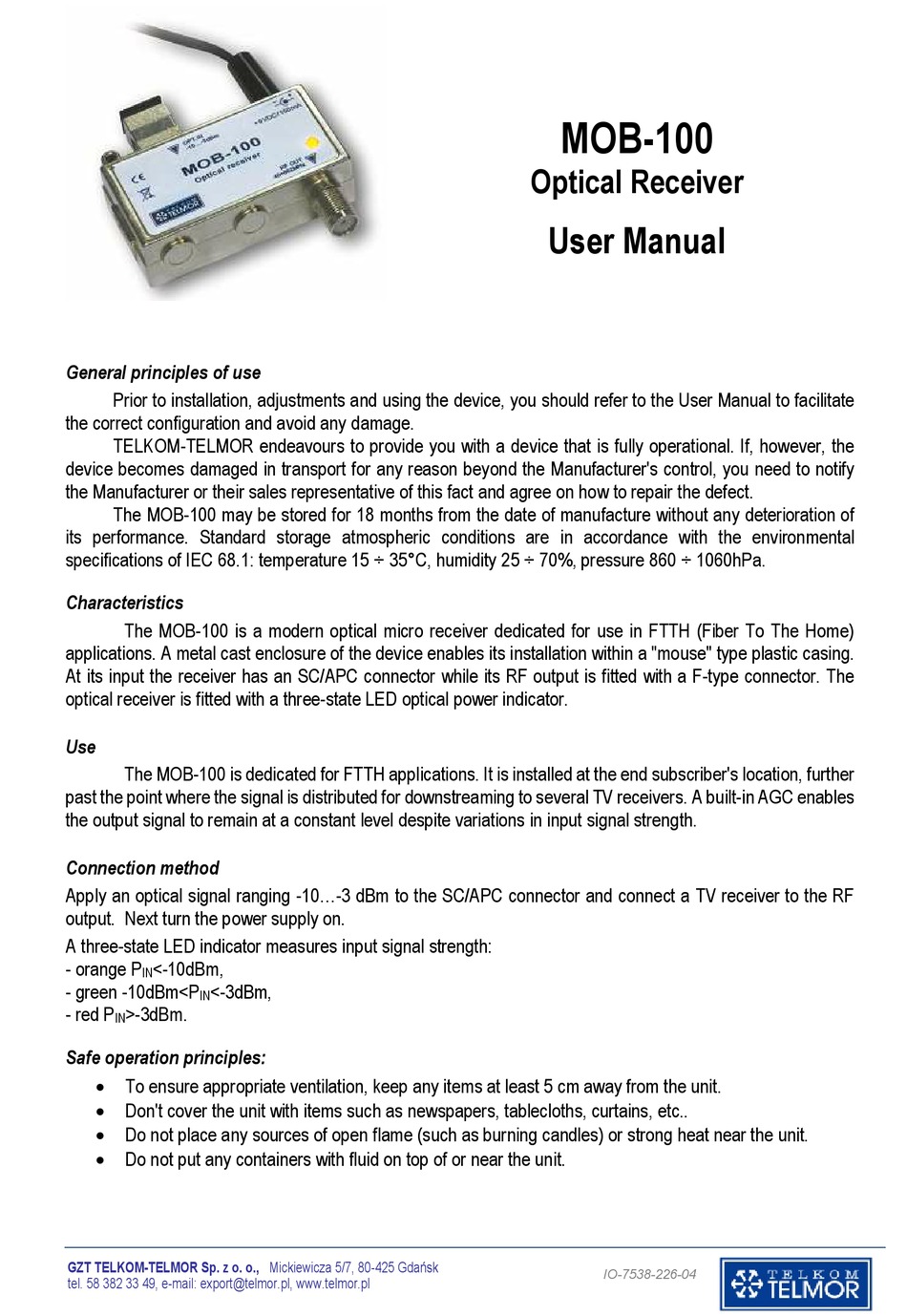

General principles of use

Prior to installation, adjustments and using the device, you should refer to the User Manual to facilitate
the correct configuration and avoid any damage.
TELKOM-TELMOR endeavours to provide you with a device that is fully operational. If, however, the
device becomes damaged in transport for any reason beyond the Manufacturer's control, you need to notify
the Manufacturer or their sales representative of this fact and agree on how to repair the defect.
The MOB-100 may be stored for 18 months from the date of manufacture without any deterioration of
its performance. Standard storage atmospheric conditions are in accordance with the environmental
specifications of IEC 68.1: temperature 15 ÷ 35°C, humidity 25 ÷ 70%, pressure 860 ÷ 1060hPa.

Characteristics

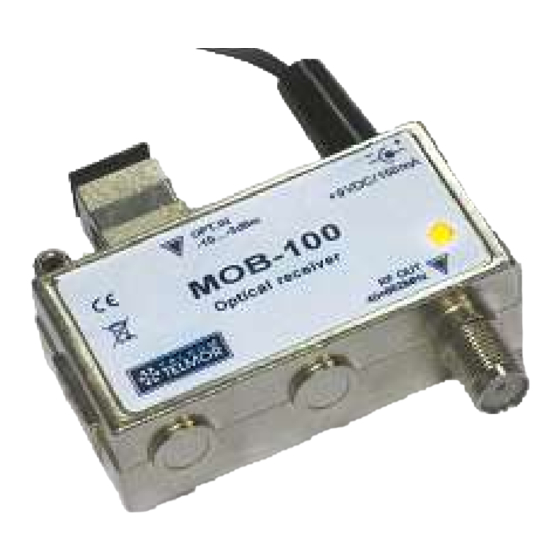

The MOB-100 is a modern optical micro receiver dedicated for use in FTTH (Fiber To The Home)
applications. A metal cast enclosure of the device enables its installation within a "mouse" type plastic casing.
At its input the receiver has an SC/APC connector while its RF output is fitted with a F-type connector. The
optical receiver is fitted with a three-state LED optical power indicator.

Use

The MOB-100 is dedicated for FTTH applications. It is installed at the end subscriber's location, further
past the point where the signal is distributed for downstreaming to several TV receivers. A built-in AGC enables
the output signal to remain at a constant level despite variations in input signal strength.

Connection method

Apply an optical signal ranging -10...-3 dBm to the SC/APC connector and connect a TV receiver to the RF
output. Next turn the power supply on.
A three-state LED indicator measures input signal strength:
- orange P <-10dBm,
IN
- green -10dBm<P <-3dBm,
IN
- red P >-3dBm.
IN

Safe operation principles:

 To ensure appropriate ventilation, keep any items at least 5 cm away from the unit.
 Don't cover the unit with items such as newspapers, tablecloths, curtains, etc..
 Do not place any sources of open flame (such as burning candles) or strong heat near the unit.
 Do not put any containers with fluid on top of or near the unit.
GZT TELKOM-TELMOR Sp. z o. o., Mickiewicza 5/7, 80-425 Gdańsk
tel. 58 382 33 49, e-mail: export@telmor.pl, www.telmor.pl
MOB-100
Optical Receiver
User Manual
IO-7538-226-04
