DeLaval FMC-IP1 Manual

Farm monitoring camera
Hide thumbs Also See for FMC-IP1:
Table of Contents

Advertisement

Quick Links

Download this manual
DeLaval farm monitoring
camera FMC-IP1
Custom Print
© DeLaval 2021. All rights reserved.
Printout from Memo+ 2021-11-30
is a registered trademark of Tetra Laval Holdings &
Finance S. A. and DeLaval is a registered trade/serv-
ice mark of DeLaval Holding AB.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMC-IP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeLaval FMC-IP1

Summary of Contents for DeLaval FMC-IP1

  • Page 1 DeLaval farm monitoring camera FMC-IP1 Custom Print © DeLaval 2021. All rights reserved. is a registered trademark of Tetra Laval Holdings & Printout from Memo+ 2021-11-30 Finance S. A. and DeLaval is a registered trade/serv- ice mark of DeLaval Holding AB.

  • Page 3: Table Of Contents

    DeLaval farm monitoring camera FMC-IP1 Table of contents Safety precautions..........................5 DeLaval farm monitoring camera FMC-IP1 Foreword........................... 5 Disclaimer......................... 5 Note to operator........................ 5 Safety regulations......................5 Label descriptions......................6 Regulatory compliance...................... 7 FCC/ISED(IC) statement.................. 7 Warranty..........................8 General description..........................9 DeLaval farm monitoring camera FMC-IP1 Introduction........................
  • Page 4 DeLaval farm monitoring camera FMC-IP1 Table of contents Viewing a video feed..................38 Taking a photograph..................39 Viewing a photograph..................39 Viewing an event..................... 39 Playing a video....................39 Camera settings....................40 Using the Android application..................42 Viewing a video feed..................42 Taking a photograph..................

  • Page 5: Safety Precautions

    2 Disclaimer The information, instructions and parts listed are applicable and current on the date when issued. DeLaval reserves the right to make changes without notice. 3 Note to operator It is the operator's responsibility to see that any...

  • Page 6: Label Descriptions

    DeLaval farm monitoring camera FMC-IP1 Safety precautions Caution! Do not cover the power adaptors or place them on heat sensitive mate- rials. Caution! Do not lift the equipment by the antennas. Note! Do not use the equipment to supervise other people without their permission. Follow local regulations in connection with supervision.

  • Page 7: Regulatory Compliance

    DeLaval farm monitoring camera FMC-IP1 Safety precautions 6 Regulatory compliance 6.1 FCC/ISED(IC) statement This device complies with part 15 of the FCC (Federal Communications Commission) Rules and RSS-210 of the IC (Industry Canada) Rules. Operation is subject to the following two...

  • Page 8: Warranty

    For more information on regulatory compliance, http://www.delavalcorporate.com/sustainability/ our-operations/regulatory-Compliance/. 7 Warranty The warranty period for the DeLaval farm moni- toring camera FMC-IP1 is three years. The requirement for approved warranty claim: Add the UID code in AWACS. Note! Already treated warranty issues are not opened up again.

  • Page 9: General Description

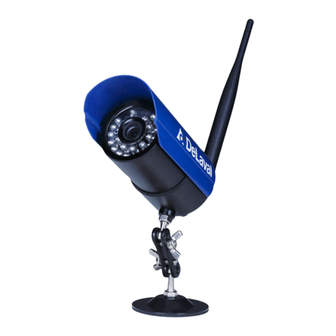

    General description DeLaval farm monitoring camera FMC-IP1 1 Introduction DeLaval farm monitoring camera FMC-IP1 is a HD supervision camera system for barns, stables or outdoor areas especially made for tough barn environment. The camera software provides a real time view, several areas can be monitored at the same time.

  • Page 10: Parts Of The Camera

    DeLaval farm monitoring camera FMC-IP1 General description 1.1 Parts of the camera Fig. 3: Parts of the camera. A: Camera foot B: Infrared LED C: Reset button D: Day/night sensor E: Lens F: Protective hood G: Antenna H: Microphone J: Power connection; polarity: positive - centre, negative - sleeve ©...

  • Page 11: Technical Data

    DeLaval farm monitoring camera FMC-IP1 General description 2 Technical data DeLaval farm monitoring camera FMC-IP1 Maximum resolution 1280 x 720 pixel Maximum frame rate 30 fps Type of equipment 2.4 GHz wire- less trans- ceiver Maximum radiated power 20 dBm Viewing angle 90°...

  • Page 12: Function Of The Fmc-Ip1

    DeLaval farm monitoring camera FMC-IP1 General description Dimensions Ø 51 x 105 Simultaneous viewers Power consumption (infrared 2.4 W off - 200 mA) Power consumption (infrared 4.8 W on - 400 mA) 3 Function of the FMC-IP1 The camera transmits signals wirelessly through Wi-Fi.

  • Page 13: Reset Button

    DeLaval farm monitoring camera FMC-IP1 General description Fig. 4: FMC-IP1 system overview. Wi-Fi range Barn overview Calving box Outdoor area Smart device Garage Milking equipment Computer Router/Access point 4 Reset button The camera can be reset by pushing the button at the back of the camera for 10 seconds.

  • Page 14: Memory Card

    6 Software The video feed can be viewed via PC software, Android or iOS applications. The FMC-IP1 software is available for PC or a smart device and can be downloaded for free from the following locations: www.delavalfmc.com/FMC-IP1 - PC...

  • Page 15: Pc Software Functions

    DeLaval farm monitoring camera FMC-IP1 General description notification every time the motion detection alarm goes off. The e-mail notification function requires a receiving e-mail account and a send- ing e-mail account. The sending and receiving accounts can not be the same, a Gmail account is recommended for the sending e-mail account.

  • Page 16: Installation

    Wi-Fi range and the signal is strong enough. Note! Make sure that the router is connected to the Internet. The camera is pre-configured to automatically connect to a DeLaval router. If a DeLaval router is available follow steps 8-10. © DeLaval 2021. 2021-11-30 16 (49)
  • Page 17 DeLaval farm monitoring camera FMC-IP1 Installation 1. Change the power adaptor cable to the "Y" cable, see Fig. 5. Fig. 5: Changing the power adapter cable. 2. Connect the network cable to the "Y" cable and to the router. 3. Plug the power adaptor connected to the camera into the power socket, see Fig.

  • Page 18: Adding A Camera To The Pc Software

    DeLaval farm monitoring camera FMC-IP1 Installation 3 Adding a camera to the PC soft- ware 1. Open the PC software, see Fig. 8. 2. Click the "Camera" icon in the menu bar, see A in Fig. 8. ð The "Camera" icon becomes red.
  • Page 19 DeLaval farm monitoring camera FMC-IP1 Installation Note! The "UID" code can be found on the quick guide or on the camera. 5. Enter "admin" as default password, see B in Fig. 9. Note! It is recommended to change the camera password to prevent unauthorized access.

  • Page 20: Adding A Camera To The Ios Application

    DeLaval farm monitoring camera FMC-IP1 Installation 4 Adding a camera to the iOS application 1. Tap the "Add Camera" icon, see G in Fig. 10. 2. Enter a suitable name for the camera. 3. Enter the camera "UID" code. Note! The "UID" code can be found on the quick guide or on the camera.

  • Page 21: Adding A Camera To The Android Application

    DeLaval farm monitoring camera FMC-IP1 Installation 5 Adding a camera to the Android application 1. Tap the "Add camera" icon, see D in Fig. 11. 2. Enter the "UID" code. Note! The "UID" code can be found on the quick guide and on the camera.

  • Page 22: Inserting A Memory Card

    DeLaval farm monitoring camera FMC-IP1 Installation 6 Inserting a memory card 1. Slide off the protecting hood. 2. Unscrew the front part of the camera. 3. Separate the front part from the camera. 4. Insert the memory card into the memory card holder.

  • Page 23: Operation

    DeLaval farm monitoring camera FMC-IP1 Operation Operation DeLaval farm monitoring camera FMC-IP1 1 Using the PC software 1.1 Viewing a video feed 1. Click the "Camera" icon in the menu bar, see A in Fig. 12. ð The "Camera" icon becomes red.
  • Page 24 DeLaval farm monitoring camera FMC-IP1 Operation Fig. 12: Viewing the video feed screen. Menu bar Zoom out Video stream Maximise window Screen capture Volume on/off Record video Change volume Zoom in Return to main menu © DeLaval 2021. 2021-11-30 24 (49)

  • Page 25: Viewing Multiple Video Feeds

    DeLaval farm monitoring camera FMC-IP1 Operation 1.2 Viewing multiple video feeds 1. Click the "Multiple view" icon in the menu bar, see A in Fig. 13. ð The "Multiple view" icon becomes red. 2. Click the "Multiple view" icon (C).

  • Page 26: Taking A Photograph

    DeLaval farm monitoring camera FMC-IP1 Operation 4. Click the green "Check" icon to confirm. 1.3 Taking a photograph 1. Click the "Camera" icon in the menu bar, see A in Fig. 12. ð The "Camera" icon becomes red. 2. Double-click the selected camera chan- nel.

  • Page 27: Viewing A Photograph

    DeLaval farm monitoring camera FMC-IP1 Operation 1.4 Viewing a photograph 1. Click the "Photo" icon in the menu bar, see A in Fig. 14. ð The "Photo" icon becomes red. 2. Click the selected camera (B). 3. Double-click the selected photograph.
  • Page 28 DeLaval farm monitoring camera FMC-IP1 Operation ð The selected photograph expands, see Fig. 15. Fig. 14: Photograph viewing screen. A: Menu bar B: Installed cameras C: Photographs © DeLaval 2021. 2021-11-30 28 (49)
  • Page 29 DeLaval farm monitoring camera FMC-IP1 Operation Fig. 15: Camera picture. Previous photograph Delete Next photograph Full screen Zoom in Back to photograph view Zoom out © DeLaval 2021. 2021-11-30 29 (49)

  • Page 30: Recording A Video

    DeLaval farm monitoring camera FMC-IP1 Operation 1.5 Recording a video 1. Click the "Camera" icon in the menu bar, see A in Fig. 12. ð The "Camera" icon becomes red. 2. Double-click the selected camera chan- nel. Note! Make sure that the camera is online.
  • Page 31 DeLaval farm monitoring camera FMC-IP1 Operation Fig. 16: Recorded video screen. A: Menu bar B: Installed cameras C: Recordings © DeLaval 2021. 2021-11-30 31 (49)
  • Page 32 DeLaval farm monitoring camera FMC-IP1 Operation Fig. 17: Camera picture. Previous video Delete Play video Full screen Next video Scrub through video Zoom in Back to video view Zoom out © DeLaval 2021. 2021-11-30 32 (49)

  • Page 33: Camera Software

    DeLaval farm monitoring camera FMC-IP1 Operation 1.7 Camera software 1.7.1 Setting the video properties 1. Click the "Settings" icon in the menu bar, see A in Fig. 12. ð The "Settings" icon becomes red. 2. Click the selected camera. 3. Expand "Video Settings".
  • Page 34 DeLaval farm monitoring camera FMC-IP1 Operation 1.7.2 Setting the recording properties 1. Click the "Settings" icon in the menu bar, see A in Fig. 12. ð The "Settings" icon becomes red. 2. Click the selected camera. Setting a scheduled recording in the "Multiple view"...
  • Page 35 DeLaval farm monitoring camera FMC-IP1 Operation Note! It is possible to record from multiple cameras at the same time. This also depends on the local net- work in order to get the data from cameras to PC. Note! The recording takes one file per recording slot.
  • Page 36 DeLaval farm monitoring camera FMC-IP1 Operation Note! Gmail address is recommended as the sending e-mail address. Recommended settings: SMTP Server: smtp.gmail.com SMTP Port: 465 Username: xxx@gmail.com Password: ******* SSL checkbox checked POP needs to be enabled in Gmail 19.Click the "Check" icon to confirm.
  • Page 37 DeLaval farm monitoring camera FMC-IP1 Operation 1.7.3 Setting the camera properties 1. Click the "Settings" icon in the menu bar, see A in Fig. 12. ð The "Settings" icon becomes red. 2. Click the selected camera. 3. Expand "Camera Settings", see A in Fig.

  • Page 38: Using The Ios Application

    DeLaval farm monitoring camera FMC-IP1 Operation 16.Click the green "Check" icon to confirm (L). Note! The camera can be reset with the "Reset Camera" option (M) or by pushing the button at the back of the camera for 10 seconds.

  • Page 39: Taking A Photograph

    DeLaval farm monitoring camera FMC-IP1 Operation 2.2 Taking a photograph 1. Tap the "Camera" icon, see D in Fig. 19. ð The list of installed cameras appears. 2. Tap the camera name of the selected camera in the list of installed cameras.

  • Page 40: Camera Settings

    DeLaval farm monitoring camera FMC-IP1 Operation 2.6 Camera settings 2.6.1 Changing the camera password 1. Tap the "Information" icon for the selected camera in the list of installed cameras, see C in Fig. 19. 2. Tap "Security code". 3. Enter the current password.
  • Page 41 DeLaval farm monitoring camera FMC-IP1 Operation 2.6.3 Turning on motion detection 1. Tap the "Information" icon for the selected camera in the list of installed cameras, see C in Fig. 19. 2. Tap "Advanced settings". 3. Turn on motion detection by tapping the "On/off"...

  • Page 42: Using The Android Application

    DeLaval farm monitoring camera FMC-IP1 Operation 3 Using the Android application 3.1 Viewing a video feed Fig. 20: Video feed on Android. A: Images C: Sound n Tap the selected camera from the camera list. 3.2 Taking a photograph 1. Tap the selected camera from the camera list.

  • Page 43: Viewing A Photograph

    DeLaval farm monitoring camera FMC-IP1 Operation 3.3 Viewing a photograph 1. Tap the selected camera from the camera list. 2. Tap the "Image" icon, see A in Fig. 20. 3. View the selected photograph. 3.4 Camera settings 3.4.1 Changing the camera password 1.
  • Page 44 DeLaval farm monitoring camera FMC-IP1 Operation 3.4.2 Changing the camera network 1. Tap "Camera settings" for the selected camera, see C in Fig. 11. 2. Tap "Modify camera", see B in Fig. 21. 3. Tap "Advanced setting". 4. Tap "Network setup".
  • Page 45 DeLaval farm monitoring camera FMC-IP1 Operation 3.4.3 Turning on motion detection 1. Tap "Camera settings" for the selected camera, see C in Fig. 11. 2. Tap "Modify camera", see B in Fig. 21. 3. Tap "Advanced setting". 4. Turn on motion detection by tapping the "On/off"...

  • Page 46: Troubleshooting

    DeLaval farm monitoring camera FMC-IP1 Troubleshooting Troubleshooting DeLaval farm monitoring camera FMC-IP1 1 Troubleshooting table Symptom Cause Action The camera does not work The camera has no power Check the power adapter and the LED on the camera supply. cable.
  • Page 47 DeLaval farm monitoring camera FMC-IP1 Troubleshooting Symptom Cause Action Bad image quality with IR Dust or near objects that Turn off the IR. LEDs on. reflect the IR light. Use additional night lights. Loss of video stream in Video stream fails with exist-...
  • Page 48 Tetra Laval Holdings & Finance S. A. and DeLaval is a registered trade/service mark of DeLaval Holding AB.
  • Page 49 DeLaval International AB www.delaval.com Box 39 SE-147 21 Tumba SWEDEN...
