196-145 PLINTH LIFT STORAGE

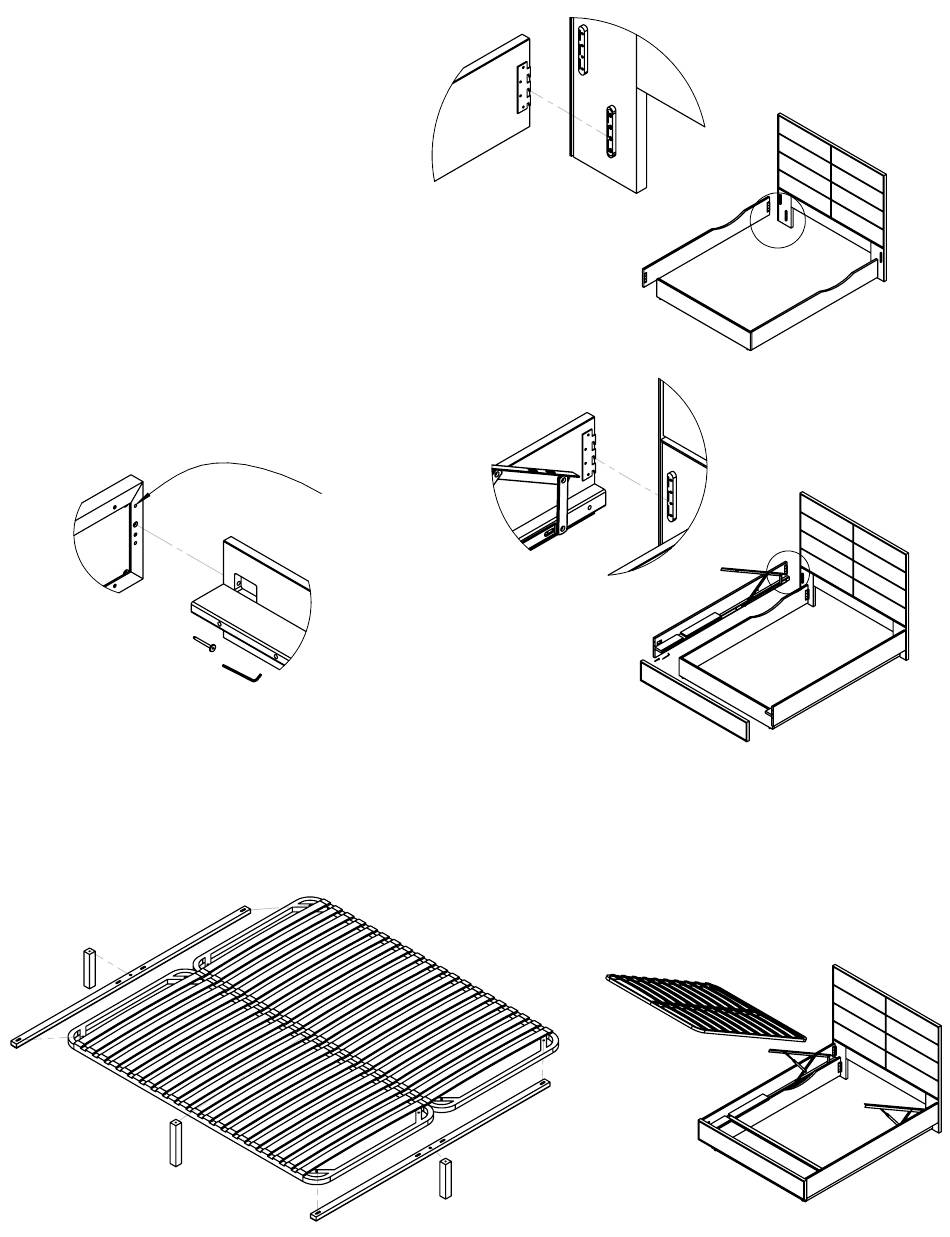

STEP #1
Hook storage base rails to
inside hooks on headboard.
Hook storage base footboard
to storage base rails.
STEP #2
Hook siderails to headboard.
Bolt footboard to siderails using
bolts and allen key provided.
(Footboard top fits flush with siderail top.)
STEP #3
Bolt wood supports to bottom of slat frame.
Attach 2 short center feet to wood supports.
Attach center foot to center of slat frame using nut provided.
Bolt slat frame to lift arms using 4 bolts and nuts provided.
Attach struts to lift arms using nuts provided.
*Mattress must be on mechanism for it to stay down.*
HOLES CLOSER TO TOP EDGE
DETAIL 1
DETAIL 2
1
2
