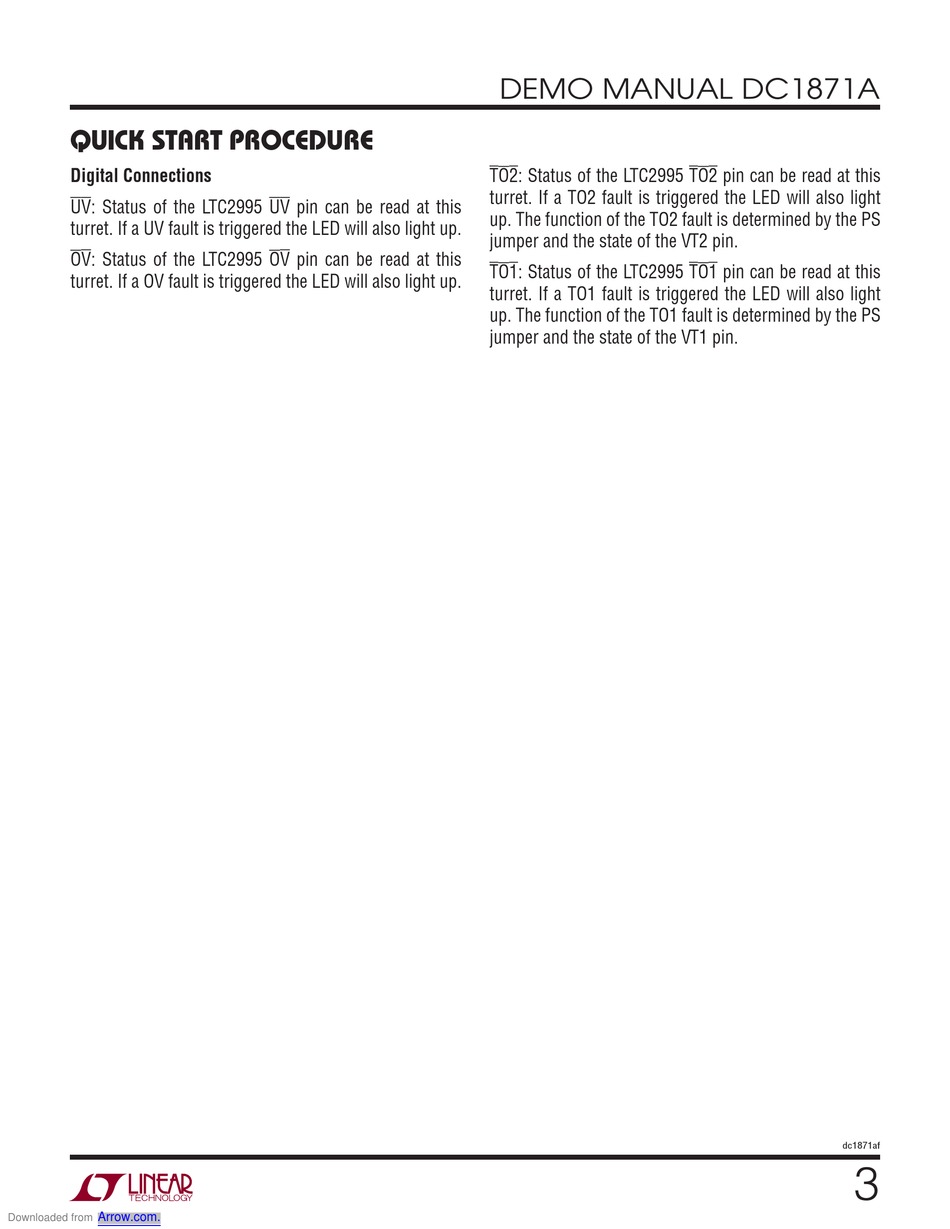

Linear Technology DC1871A Demo Manual page 3

QUICK START PROCEDURE
Digital Connections
UV: Status of the LTC2995 UV pin can be read at this
turret. If a UV fault is triggered the LED will also light up.
OV: Status of the LTC2995 OV pin can be read at this
turret. If a OV fault is triggered the LED will also light up.
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
DEMO MANUAL DC1871A
TO2: Status of the LTC2995 TO2 pin can be read at this
turret. If a TO2 fault is triggered the LED will also light
up. The function of the TO2 fault is determined by the PS
jumper and the state of the VT2 pin.
TO1: Status of the LTC2995 TO1 pin can be read at this
turret. If a TO1 fault is triggered the LED will also light
up. The function of the TO1 fault is determined by the PS
jumper and the state of the VT1 pin.
