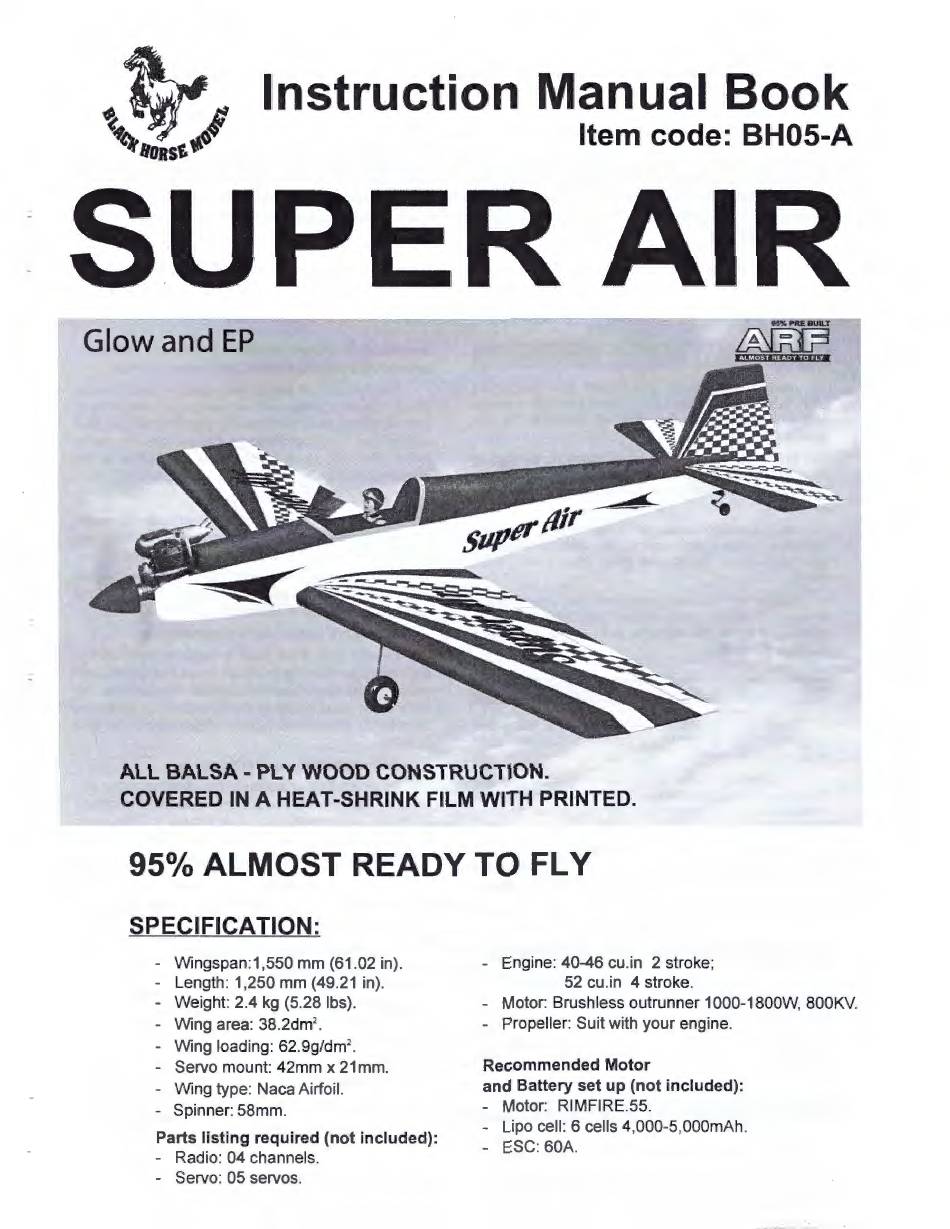

SUPER AIR BH05-A Instruction Manual Book

Instruction Manual Book
Item code: BH05-A
Glow and EP
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT -SHRINK FILM WITH PRINTED.
95°/o ALMOST READY TO FLY
SPECIFICATION:
- Wingspan:1 ,550 mm (61 .02 in).
- Length: 1 ,250 mm (49.21 in).
- Weight: 2.4 kg (5 .28 lbs).
- Wing area: 38 .2dm
2
.
- Wing loading: 62.9g/dm
2
•
- Servo mount: 42mm x 21mm.
- Wing type: Naca Airfoil.
Spinner: 58mm.
Parts listing required (not included):
Radio: 04 channels.
- Servo: 05 servos.
- Engine: 40-46 cu.in 2 stroke;
52 cu.in 4 stroke.
- Motor: Brush less outrunner 1 000-1800W, 800KV.
- Propeller: Suit with your engine.
Recommended Motor
and Battery set up (not included):
- Motor: RIMFIRE .55.
- Lipo cell : 6 cells 4,000-S ,OOOmAh .
- ESC: 60A.
